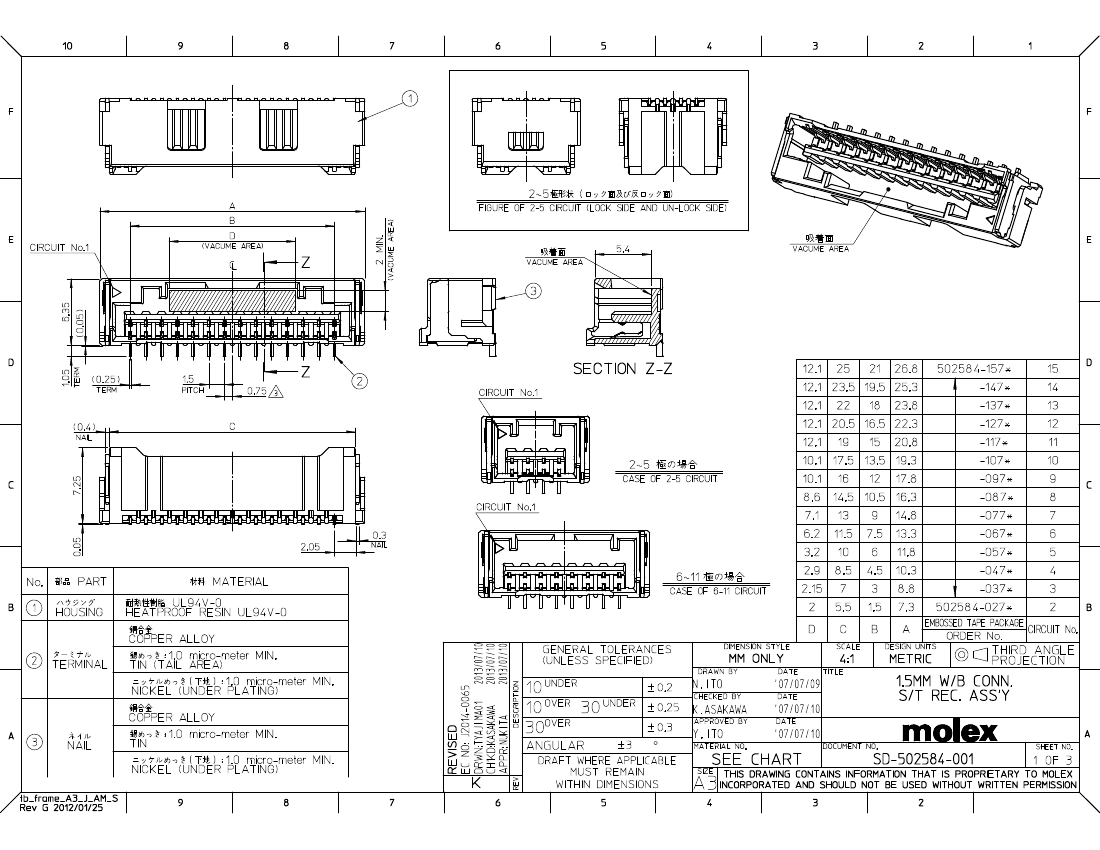

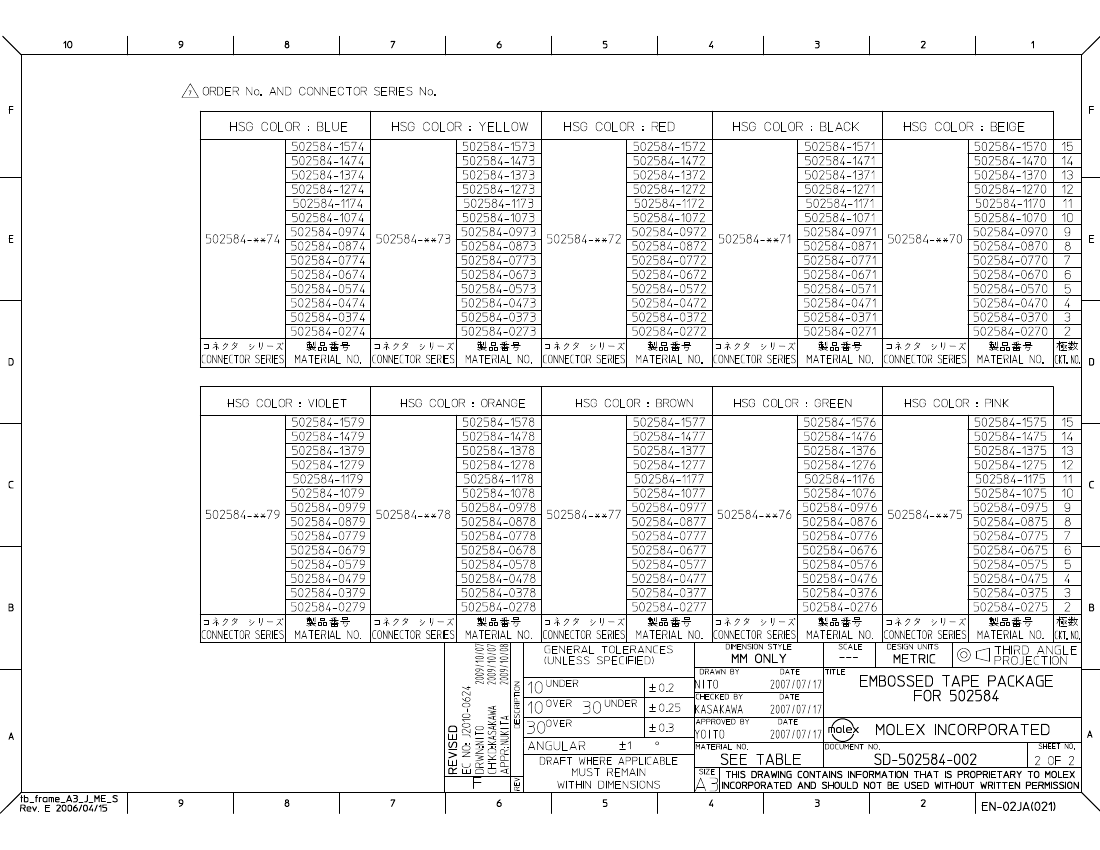

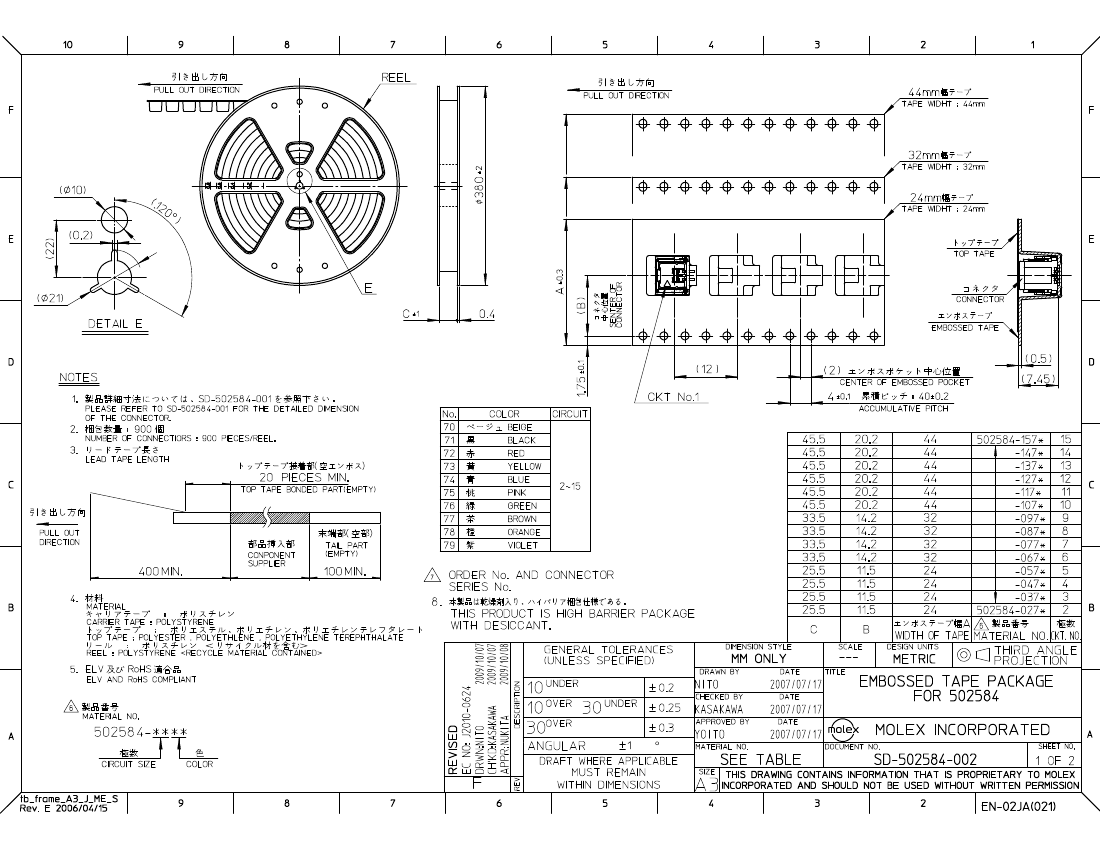

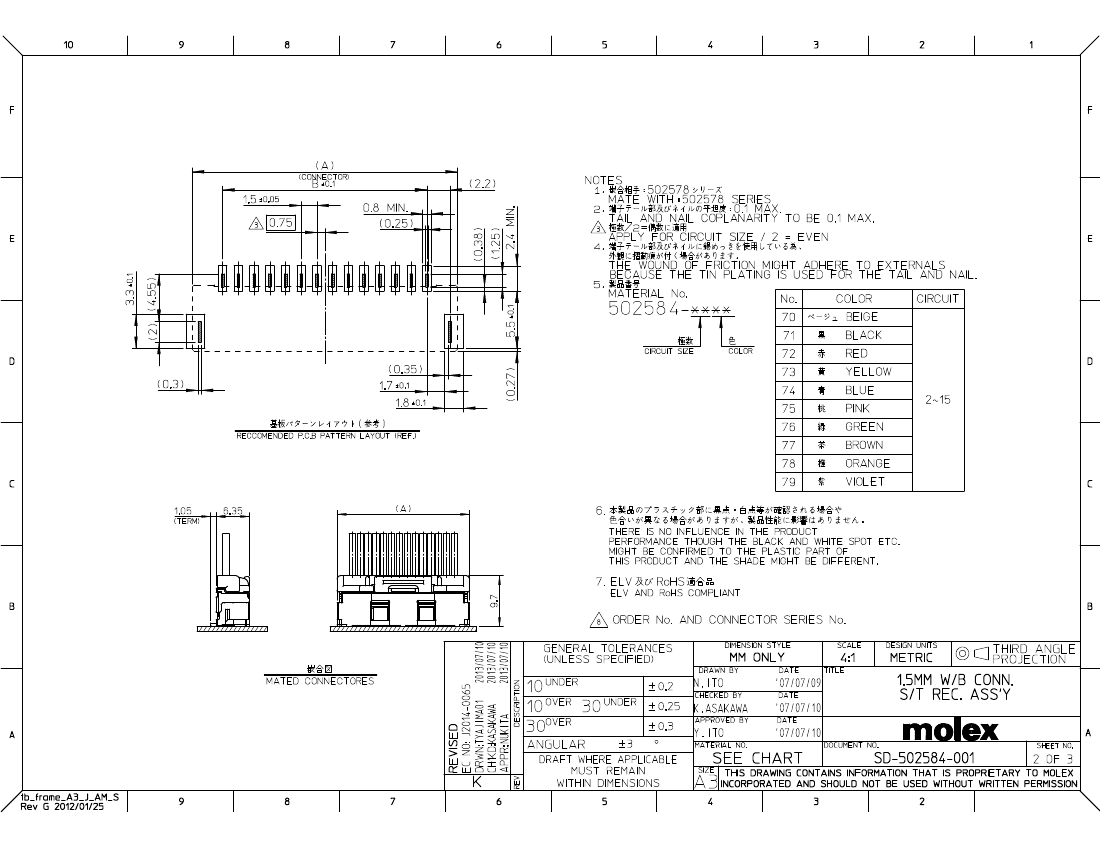

5025841570 Overview

CONN RCPT 15CKT VERT BEIGE

Parameter Name	Attribute value
Connector type	socket
Contact type	Forked
style	Board to cable/wire
Number of pins	15
Number of pins loaded	all
Spacing - Mating	0.059"（1.50mm）
Number of rows	1
Line spacing - patching	-
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）
Insulation color	beige
Insulation height	0.285"（7.25mm）
Contact length - terminal	-
Operating temperature	-40°C ~ 105°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	tin
Joint stack height	-
Intrusion protection	-
characteristic	Pick and place, weld hold
Rated current	-
Rated voltage	-
application	Automotive, general, industrial, lighting, medical
Insulation Materials	Resin
Contact shape	-
Contact material	copper alloy
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）

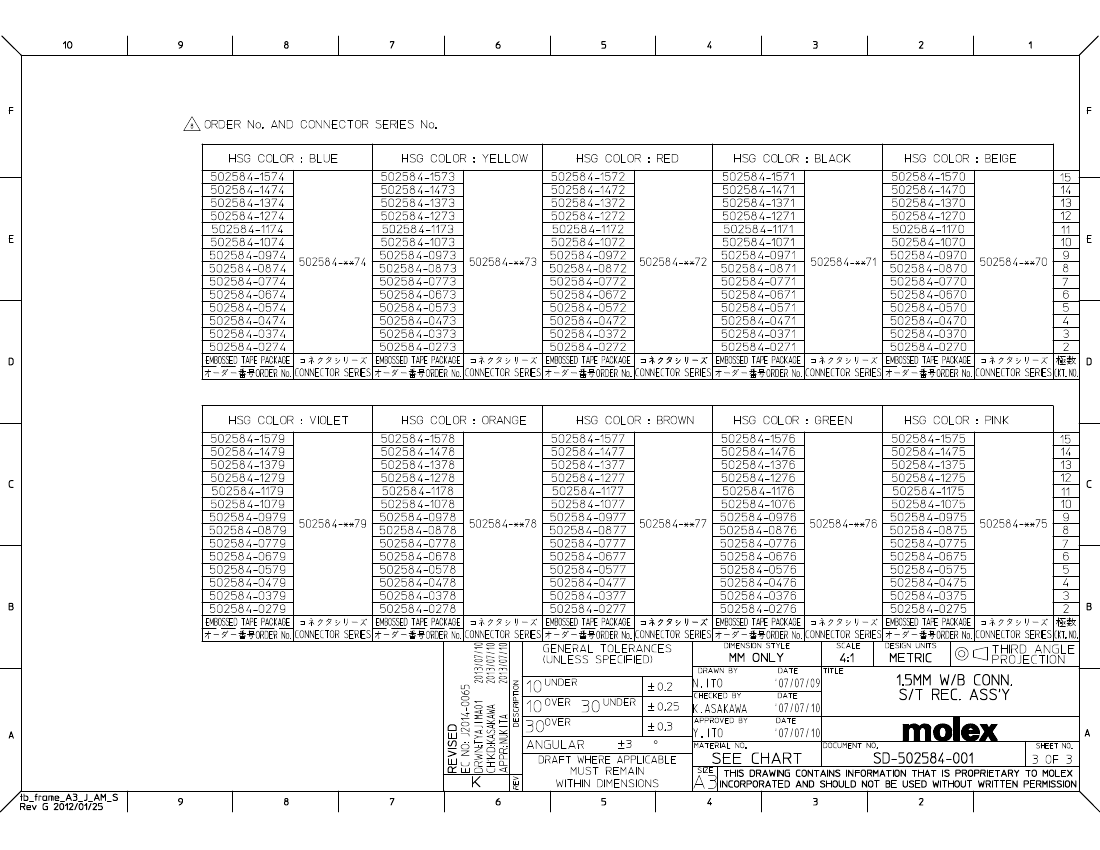

	5025841570	5025841270	5025841470
Description	CONN RCPT 15CKT VERT BEIGE	CONN RCPT 12CKT VERT BEIGE	CONN RCPT 14CKT VERT BEIGE
Connector type	socket	socket	socket
Contact type	Forked	Forked	Forked
style	Board to cable/wire	Board to cable/wire	Board to cable/wire
Number of pins	15	12	14
Number of pins loaded	all	all	all
Spacing - Mating	0.059"（1.50mm）	0.059"（1.50mm）	0.059"（1.50mm）
Number of rows	1	1	1
Installation type	surface mount	surface mount	surface mount
Termination	welding	welding	welding
Fastening type	latch holder	latch holder	latch holder
Contact surface treatment - mating	tin	tin	tin
Contact Surface Treatment Thickness - Mating	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Insulation color	beige	beige	beige
Insulation height	0.285"（7.25mm）	0.285"（7.25mm）	0.285"（7.25mm）
Operating temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0
Contact Surface Preparation - Column	tin	tin	tin
characteristic	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold
application	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical	Automotive, general, industrial, lighting, medical
Insulation Materials	Resin	Resin	Resin
Contact material	copper alloy	copper alloy	copper alloy
Contact Surface Treatment Thickness - Column	39.4µin（1.00µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
