RS1AL - RS1ML
Taiwan Semiconductor
CREAT BY ART

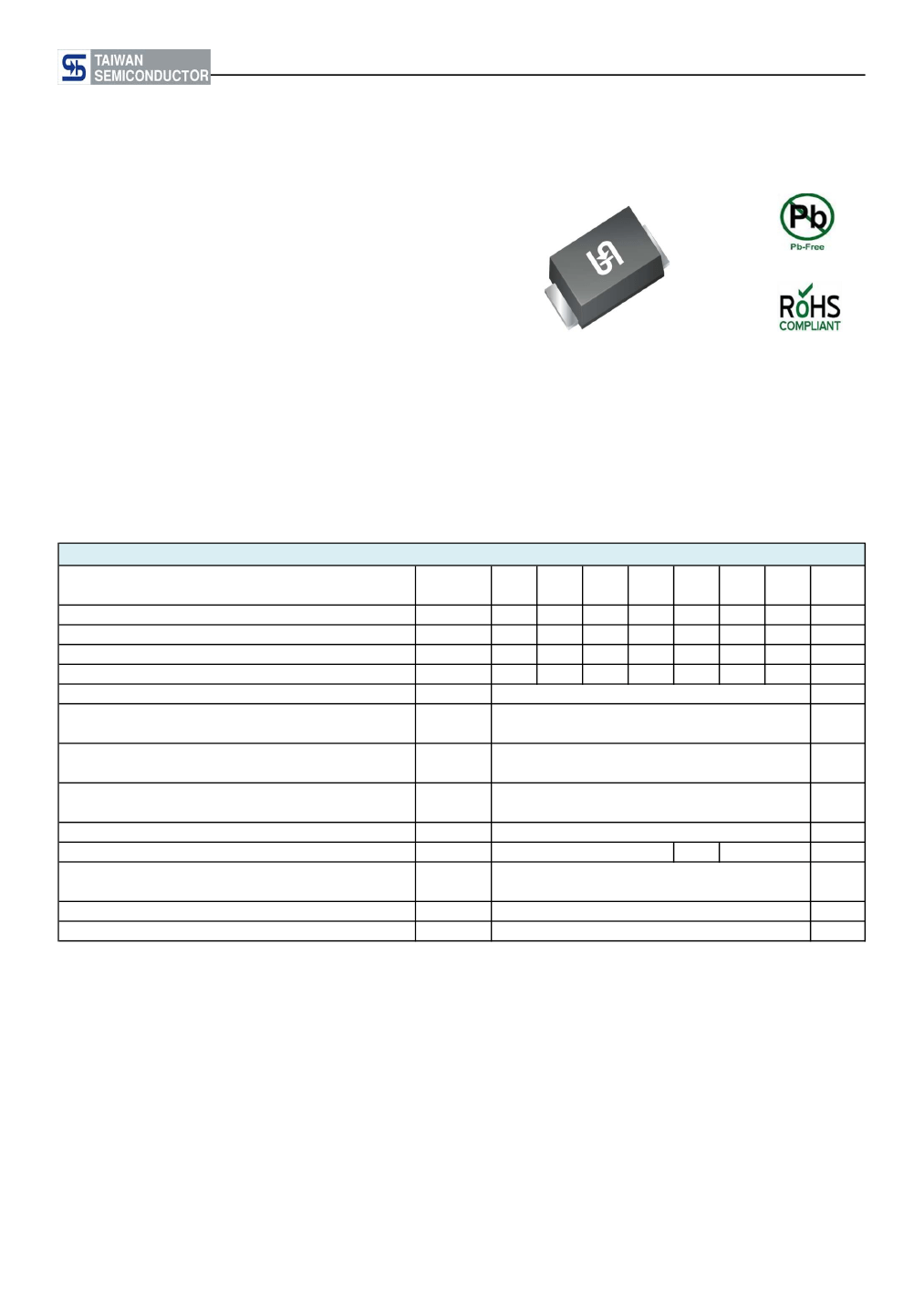

0.8A, 50V - 1000V Surface Mount Fast Recovery Rectifiers
FEATURES
- Glass passivated junction chip
- Ideal for automated placement
- Fast switching for high efficiency
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
MECHANICAL DATA
Case:
Sub SMA
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.019 g (approximately)
Sub SMA
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@ 0.8 A
Maximum reverse current @ rated V
R
Typical junction capacitance (Note 2)
Maximum reverse recovery time (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Measured at 1 MHz and Applied VR=4.0 Volts.
Note 3: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
T
J
=25°C
T
J
=125°C
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
C
J
t
rr
R
θJL
R
θJA
T
J
T
STG
150
32
105
- 55 to +150
- 55 to +150
SYMBOL
RS1
AL
RAL
50
35
50
RS1
BL
RBL
100
70
100
RS1
DL
RDL
200
140
200
RS1
GL
RGL
400
280
400
0.8
30
1.3
5
50
10
250
500
RS1
JL
RJL
600
420
600
RS1
KL
RKL
800
560
800
RS1
ML
RML
1000
700
1000
V
V
V
A
A
V
μA
pF
ns
°C/W
°C
°C
UNIT
Document Number: DS_D1409037
Version: M15
RS1AL - RS1ML
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
RU
RV
RT
MT
RQ
MQ
R3
RF
R2
M2
RH
MH
Note 1: "x" defines voltage from 50V (RS1AL) to 1000V (RS1ML)
PACKING CODE
PACKING CODE
SUFFIX
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
Sub SMA
1,800 / 7" Plastic reel (8mm tape)
3,000 / 7" Plastic reel (8mm tape)
7,500 / 13" Paper reel (8mm tape)
7,500 / 13" Plastic reel (8mm tape)
10,000 / 13" Paper reel (8mm tape)
10,000 / 13" Plastic reel (8mm tape)
1,800 / 7" Plastic reel (12mm tape)
3,000 / 7" Plastic reel (12mm tape)
7,500 / 13" Paper reel (12mm tape)
7,500 / 13" Plastic reel (12mm tape)
10,000 / 13" Paper reel (12mm tape)
10,000 / 13" Plastic reel (12mm tape)
PACKAGE
PACKING
RS1xL
(Note 1)
H
G
EXAMPLE
PREFERRED
PART NO.
RS1MLHRUG
PART NO.
RS1ML
PART NO.
SUFFIX
H
PACKING CODE
RU
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

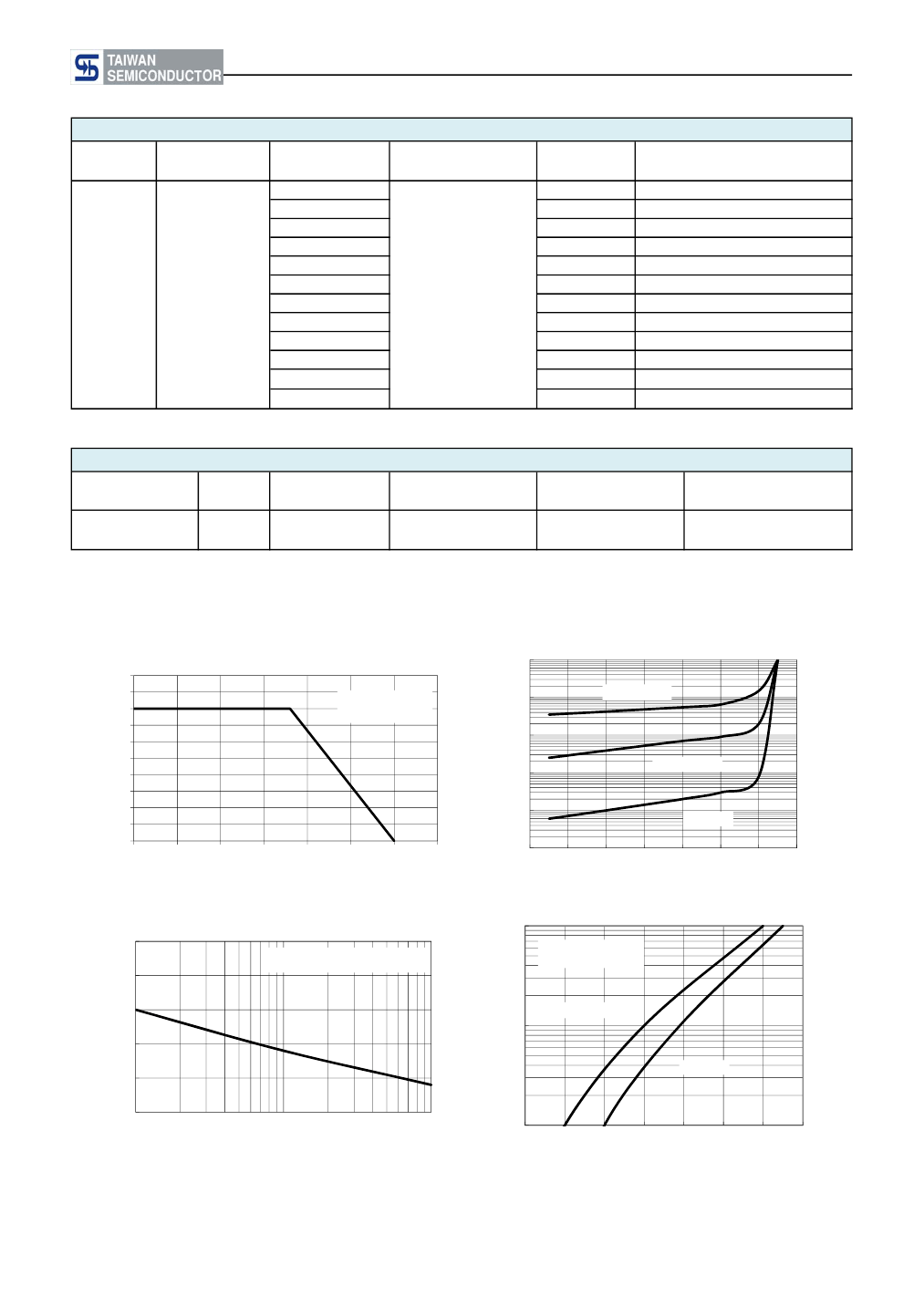

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
1
0.9
AVERAGE FORWARD
A
CURRENT (A)
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0
25
50
75
100
125
150
175
LEAD TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVE LOAD
INSTANTANEOUS REVERSE CURRENT
(μA)
100
10
1
0.1
0.01
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
T
J
=125
o
C
T
J
=100
o
C
T
J
=25
o
C
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
50
40
30
20
10
0
1
INSTANTANEOUS FORWARD CURRENT
(A)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
8.3ms Single Half Sine Wave
10
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
Pulse Width=300μs
1% Duty Cycle
1
T
J
=125
o
C
T
J
=25
o
C
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
Document Number: DS_D1409037
Version: M15
RS1AL - RS1ML
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
f=1.0MHz
Vsig=50mVp-p
CAPACITANCE (pF)
10
1
1
10
REVERSE VOLTAGE (V)
100

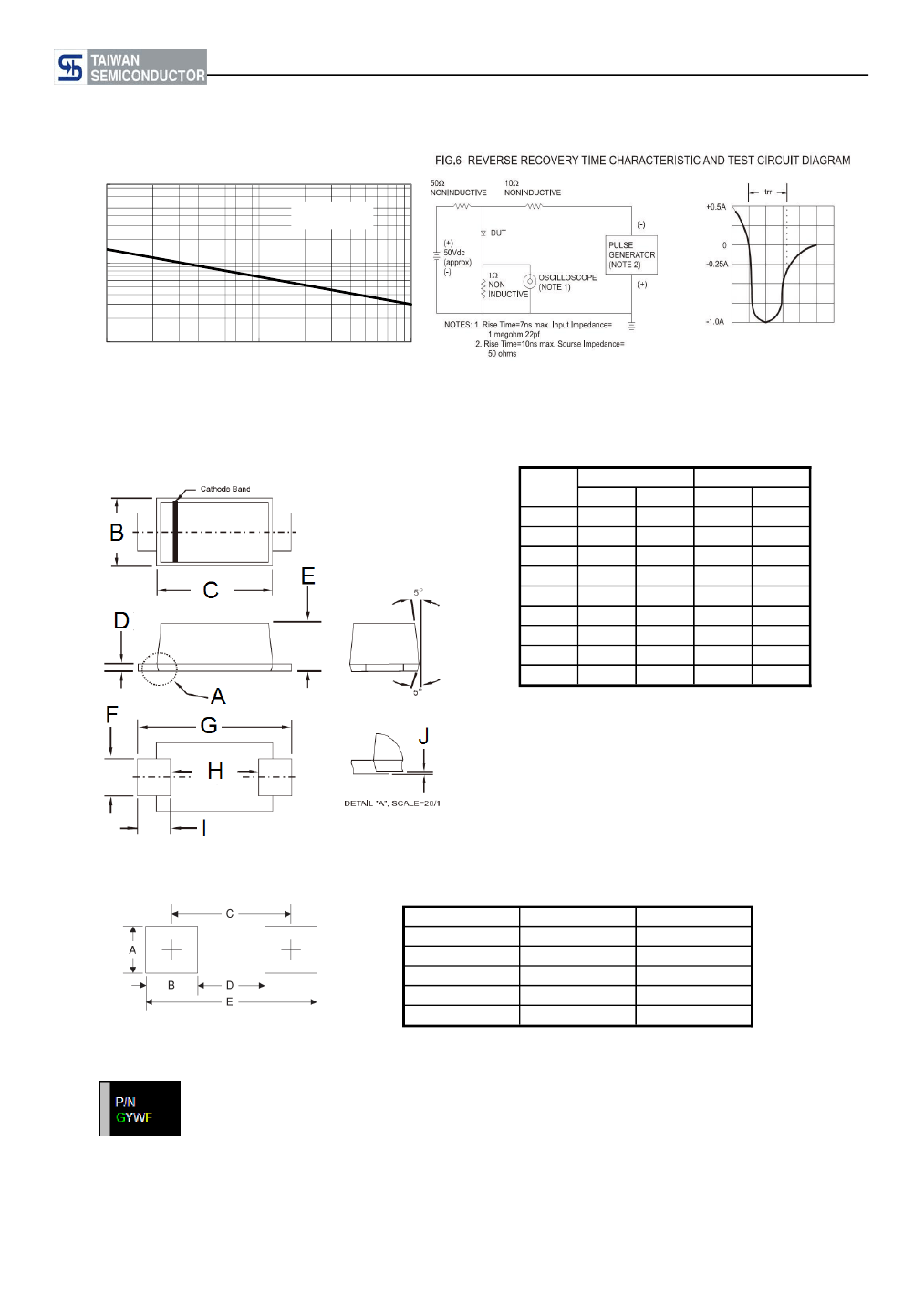

PACKAGE OUTLINE DIMENSIONS
Sub SMA
DIM.
B
C
D
E
F
G
H
I
J
Unit (mm)
Min
1.70
2.70
0.16
1.23
0.80
3.40
2.45
0.35
0.00
Max
1.90
2.90
0.30
1.43
1.20
3.80
2.60
0.85
0.10
Unit (inch)
Min
0.067
0.106
0.006
0.048
0.031
0.134
0.096
0.014
0.000
Max
0.075
0.114
0.012
0.056
0.047
0.150
0.102
0.033
0.004
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.4
1.2
3.1
1.9
4.3
Unit (inch)
0.055
0.047
0.122
0.075
0.169
MARKING DIAGRAM
P/N
G
YW
F
= Marking Code
= Green compound Code
= Date Code
= Factory Code
Document Number: DS_D1409037
Version: M15
RS1AL - RS1ML
Taiwan Semiconductor
CREAT BY ART
