E55/28/25-3F36-G1000

Description
E CORES
CategoryPassive components
File Size66KB,2 Pages
ManufacturerFerroxcube
Websitehttp://www.ferroxcube.com/
Environmental Compliance
Download Datasheet Parametric View All

E55/28/25-3F36-G1000 Overview

E CORES

E55/28/25-3F36-G1000 Parametric

Parameter NameAttribute value
Kernel typeE
Tolerance-
gap-
Material3F36
surfaceUncoated
Supplier device packagingE 55 x 28 x 25
high27.50mm
length56.20mm
width25.00mm
diameter-
Product specifications
Core
E55/28/25
Effective parameters
Symbol
∑(I/A)
Ve
Le
Ae
Amin
m
Parameter
core factor (C1)
effective volume
effective length
effective area
minimum area
E55/28/25
Value
0.239
52000
123
420
411
≈ 130
Unit
mm⁻¹
mm³
mm
mm²
mm²
g/pcs

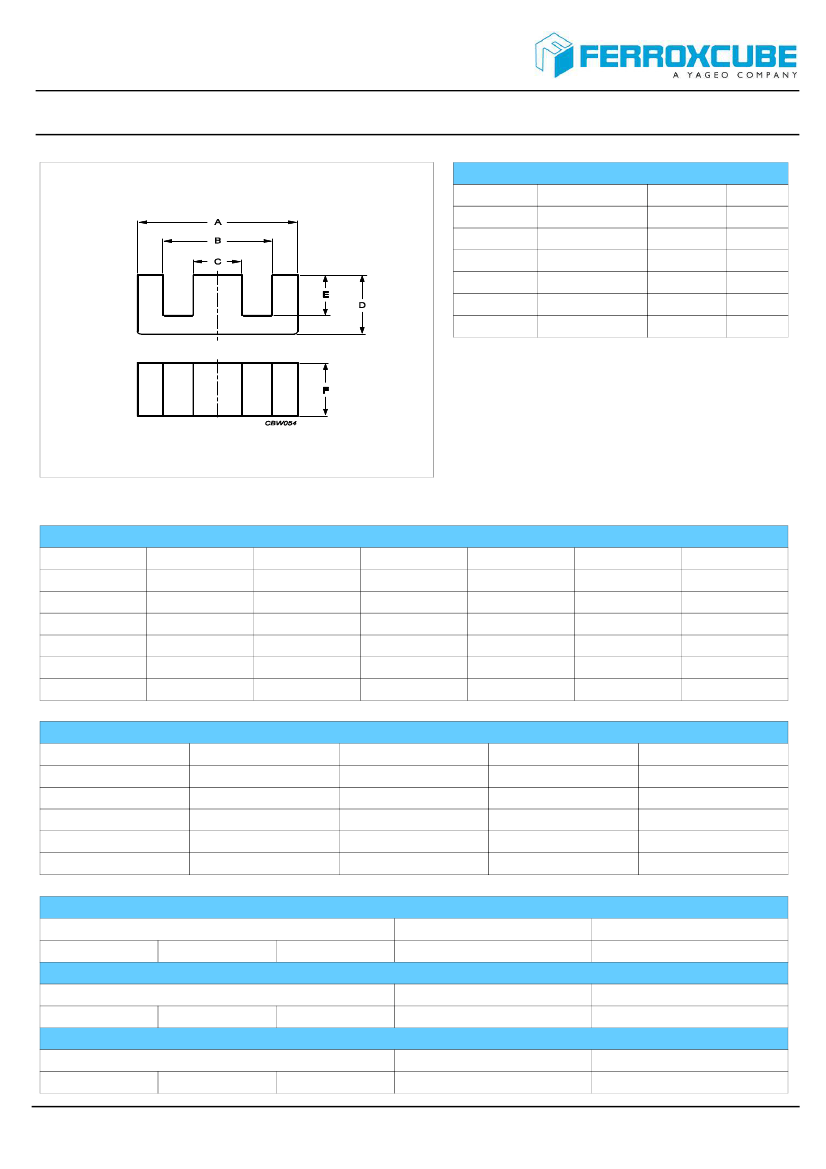

Dimensions for product: E55/28/25
Symbol
A
B
C
D
E
F
Nom
56.20
37.50
17.20
27.50
18.50
25.00
Tol +
0.00
1.50
0.00
0.30
0.80
0.00
Tol -
2.10
0.00
0.50
0.30
0.00
0.80
Max
56.20
39.00
17.20
27.80
19.30
25.00
Min
54.10
37.50
16.70
27.20
18.50
24.20
Unit
mm
mm
mm
mm
mm
mm
Inductance factor
Material
3C91
3C92
3C94
3C95
3F36
Value
9860
5800
8000
9860
5000
Tol +
25%
25%
25%
25%
25%
Tol -
25%
25%
25%
25%
25%
Unit
nH/turns²
nH/turns²
nH/turns²
nH/turns²
nH/turns²
Power loss: 3C91
Measuring conditions
100 kHz
200 mT
60 ºC
Power loss: 3C92
Measuring conditions
100 kHz
200 mT
100 ºC
Power loss: 3C94
Measuring conditions
100 kHz
200 mT
100 ºC
Max
27.000
Unit
W/set
Max
27.000
Unit
W/set
Max
27.000
Unit
W/set
