51750-097LF: DescriptionV/T REC POWERBLADE; CategoryThe connector The connector; File Size241KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51750-097LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51750-097LF	-	-	View	Buy Now

51750-097LF Overview

V/T REC POWERBLADE

51750-097LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Board mount options	HOLE .086-.098
body width	0.47 inch
subject depth	0.5 inch
body length	1.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S12P2
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	14
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

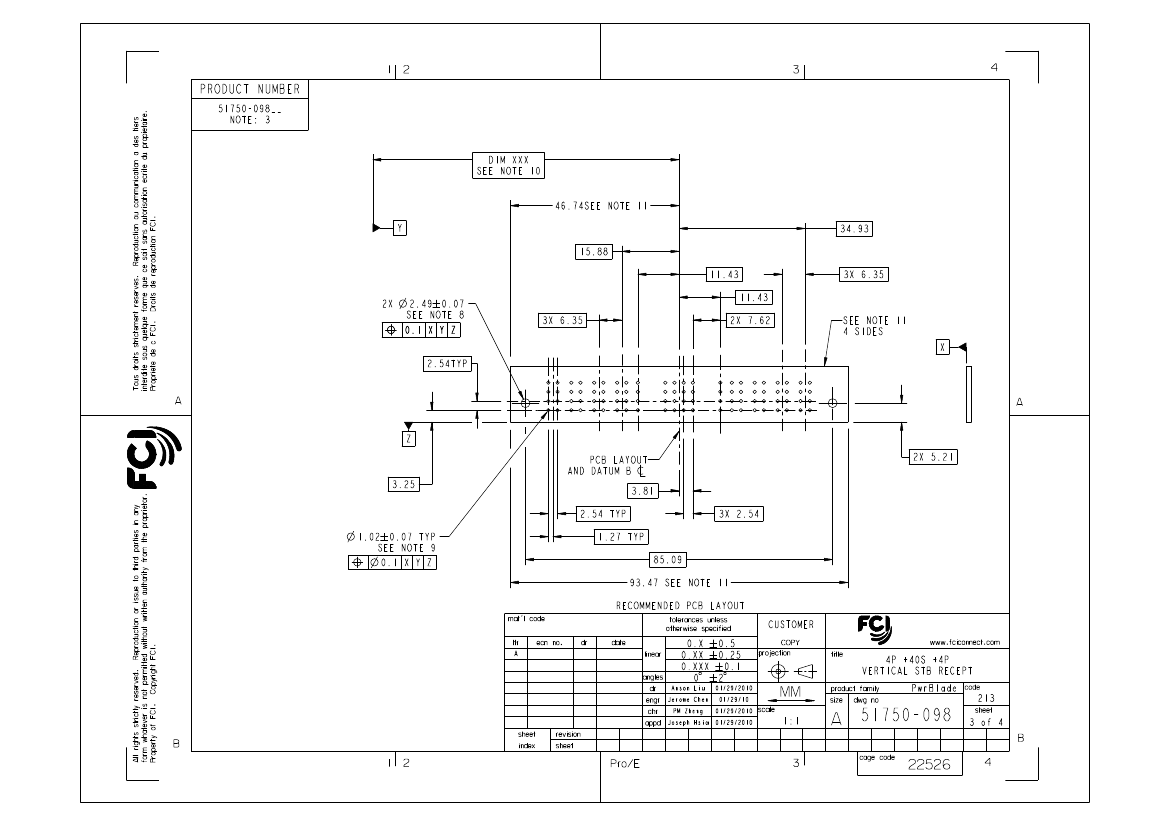

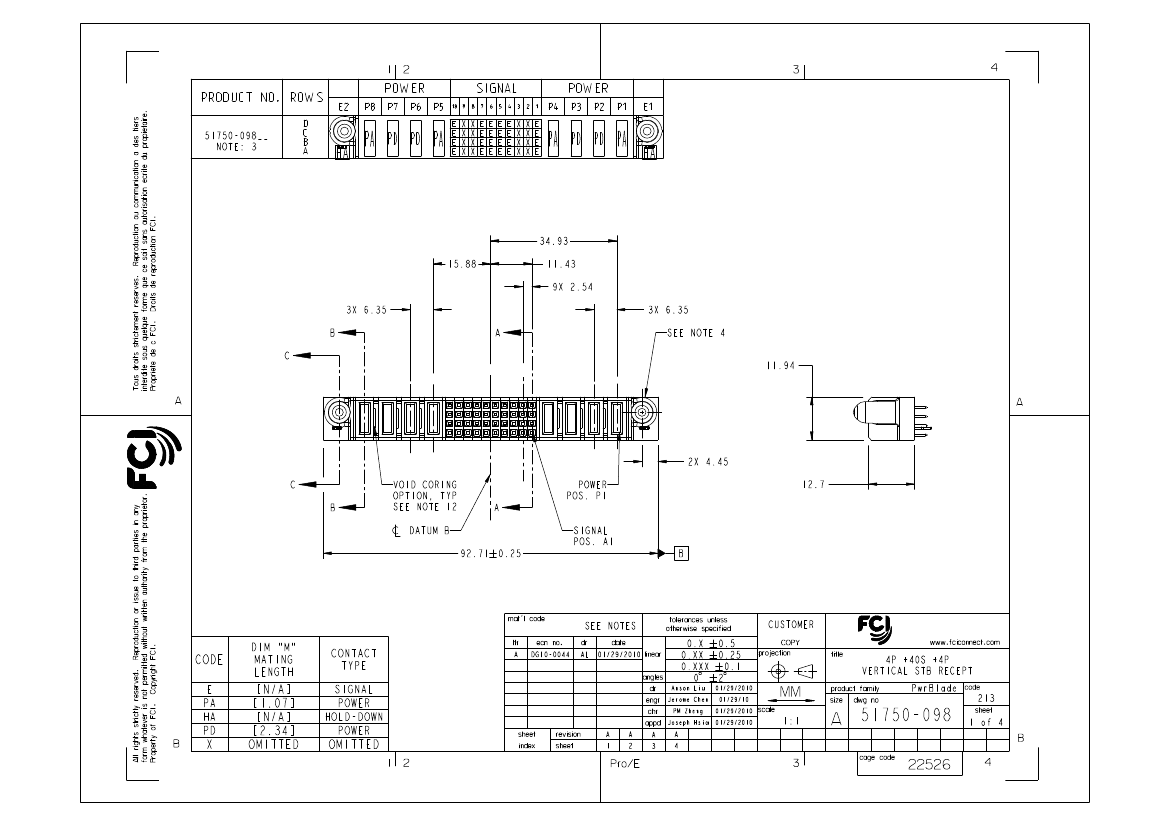

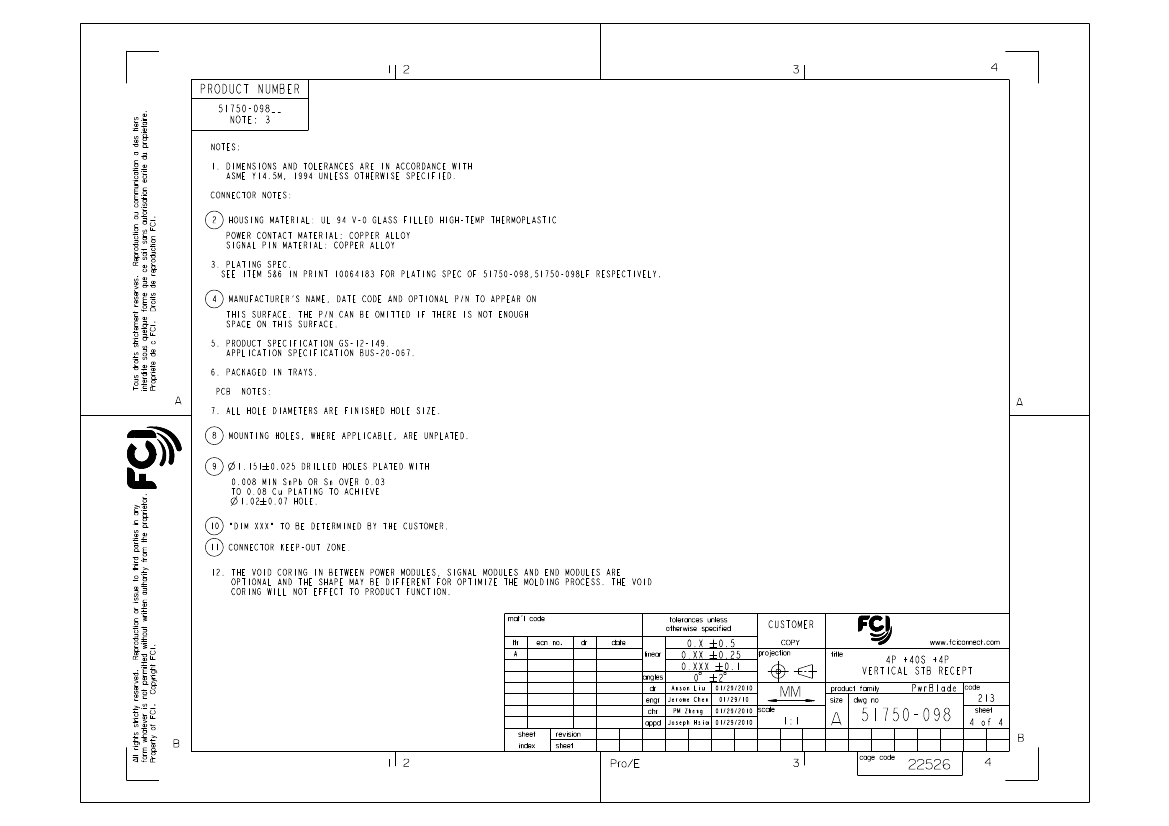

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

51750-097LF Related Products

	51750-097LF	51750-098LF	51750-098
Description	V/T REC POWERBLADE	V/T REC POWERBLADE	Board Connector, 48 Contact(s), Male, Straight, Solder Terminal, Guide Pin, Receptacle
Is it Rohs certified?	conform to	conform to	incompatible
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Board mount options	HOLE .086-.098	HOLE .086-.098	HOLE .086-.098
body width	0.47 inch	0.47 inch	0.47 inch
subject depth	0.5 inch	0.5 inch	0.5 inch
body length	1.45 inch	3.65 inch	3.65 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S12P2	S40P8	S40P8
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
DIN compliance	NO	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
IEC compliance	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO	NO
Mixed contacts	YES	YES	YES
Installation option 1	GUIDE PIN	GUIDE PIN	GUIDE PIN
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch	0.135 inch
Termination type	PRESS FIT	SOLDER	SOLDER
Total number of contacts	14	32	48
Evacuation force-minimum value	.1668 N	.1668 N	.1668 N
package instruction	LEAD FREE	LEAD FREE	-
Factory Lead Time	6 weeks	6 weeks	-
Filter function	NO	NO	-
JESD-609 code	e3	e3	-
Number of rows loaded	4	4	-
Terminal pitch	2.54 mm	2.54 mm	-
UL Flammability Code	94V-0	94V-0	-
Base Number Matches	-	1	1
