C3DDS-1406M Overview

IDC CABLE - CKR14S/AE14M/CKR14S

Parameter Name	Attribute value
Connector type	jack to jack
Number of pins	14
Number of rows	2
Pitch - Connector	0.100"（2.54mm）
Spacing - Cable	0.050"（1.27mm）
length	0.500'（152.40mm，6.00"）
characteristic	With electrode markings, stress relieved
color	Multiple strands, strips
shield	No shielding
use	Onboard
Cable termination	IDC
Contact plating	tin
Contact plating thickness	100.0µin（2.54µm）

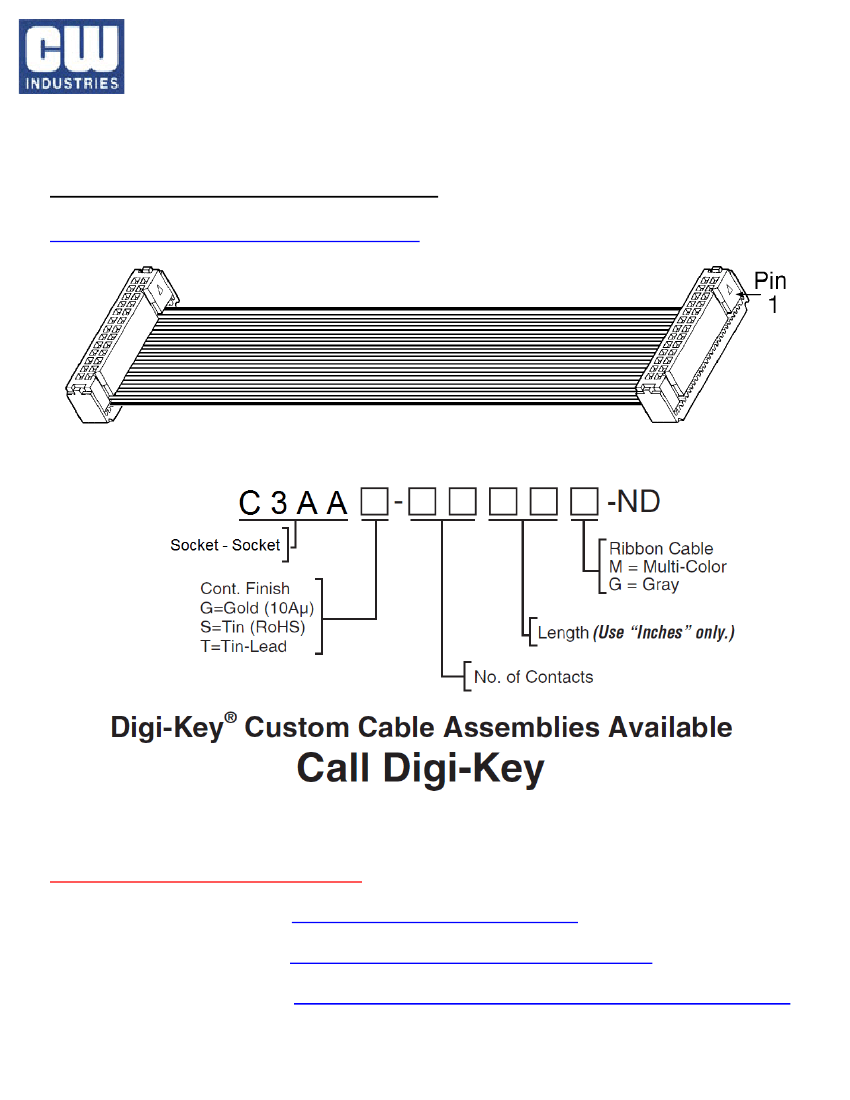

Termination Jumpers

Socket Connector – Socket Connector

Socket Connectors without Strain Relief shown

Also available in the following version:

C3BB

□

-

□□□□□

-ND

–

Socket Connectors with Strain Relief

C3CC

□

-

□□□□□

-ND

–

Socket Connectors with Central Polarizing Key

C3DD

□

-

□□□□□

-ND

–

Socket Connectors with Strain Relief and Central Polarizing Key
