Introduction
EB Series Gen 2 Linears are designed for use in premium indoor or industrial applications where a high level of efficacy
is required. The new generation uses the high-efficacy SMDs to achieve up to 180lm/W, which enables designers and
fixture manufacturers to meet DLC Premium requirements. They are designed for linear troffers, pendants and other
luminaires in indoor commercial and industrial applications.
Available in 280 mm, 560 mm, and 1120 mm lengths, the modules can be connected end-to-end thereby providing
flexibility in designing luminaires. The Zhaga compatible modules further simplify design by providing easy mounting
options, reusable poke-in connectors and by being compatible with a variety of off-the-shelf optics. The modules have
long lifetimes of greater than 50,000 hours.
Features
Benefits
• Leading efficacy, up to 180 lm/W typical with 2x
overdrive capability
• Ideal for DLC Premium Application
• Uniform, high quality illumination
• Available in a variety of color temperatures
• Designed following Zhaga Book 7 standards L28W2
and L56W2
• ENERGY STAR / ANSI compliant 3 SDCM color
binning structure
®
• Compact system design
• High quality, true color reproduction
• Enhanced optical control
• Uniform, consistent white light
• Reliable use at elevated currents enables greater
design flexibility
• Easy installation using mounting cutout and connec-
tors
• Long lifetime of > 50,000 hours
• Easy wiring enabled by poke-in connectors
• Lumen output of up to 2386lm, 4772lm, and 9544lm
for 280mm, 560mm and 1120mm modules
EB Series™
Product Feature Map
Bridgelux EB Series Gen 2 Linears are fully engineered devices that provide consistent thermal and optical performance
on an engineered mechanical platform. The linear products incorporate several features to simplify design integration and
assembly. Please visit www.bridgelux.com for more information on the EB Series family of products.

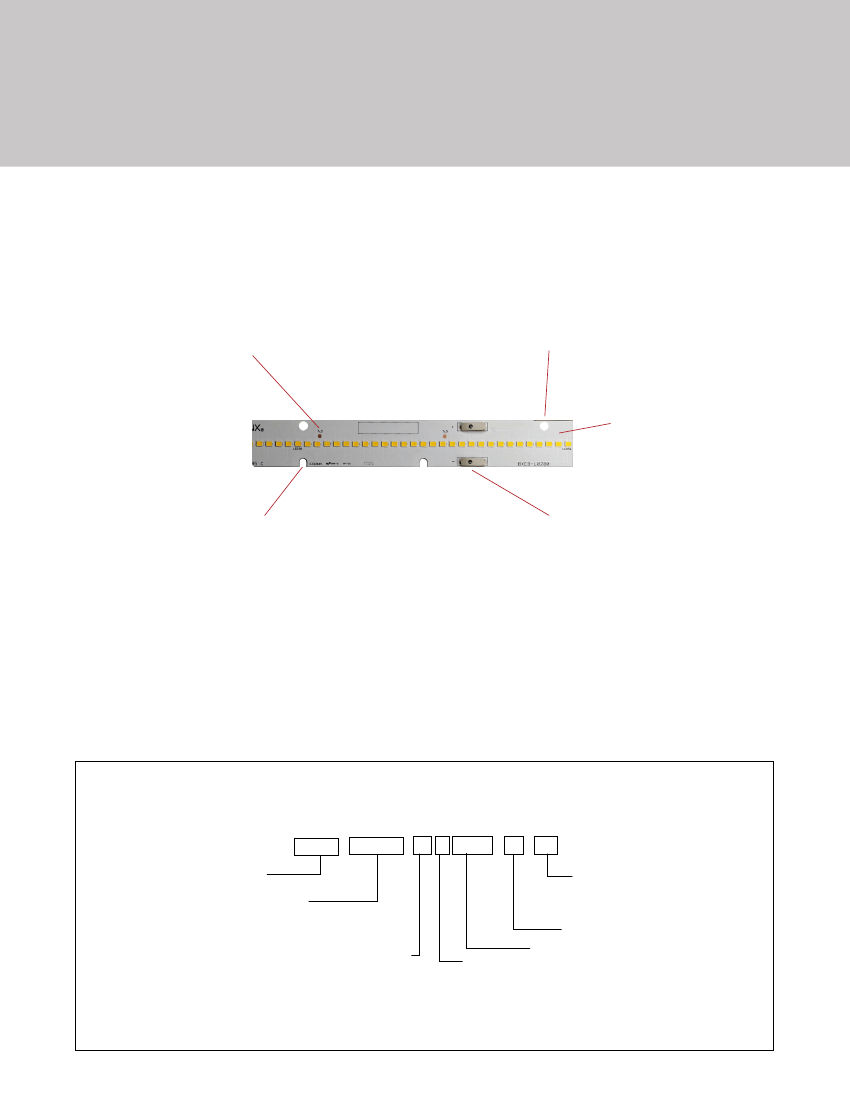

Case Temperature Measurement Points
Optic mounting holes
Designed to comply with global
safety standards for creepage
and clearance distances
Zhaga compatible mounting holes
Re-usable connector
Note: Label containing part number and lot codes is attached on the
front of the module.
Product Nomenclature
The part number designation for Bridgelux EB Series Gen 2 is explained as follows:
1 2 3 4 - 5 6 7 8 9 10 - 11 12 13 14 15 16 - 17 – 18
BXEB
–
L0280Z
–
30 E 1000
–
C
–
B3
Product Family
Nominal Dimensions
L
=
Length
0280
=
280 mm
0560
=
560 mm
1120
=
1120 mm
Z
=
Zhaga compatible width (24 mm)
CCT Bin Options
B
=
Version
3
=
3 SDCM
Module Configuration
Nominal CCT
30
=
3000 K
35
=
3500 K
40
=
4000 K
50
=
5000 K
57
=
5700 K
Minimum
CRI
E
=
80
Nominal Flux
1000
=
1000 lm
2000
=
2000 lm
4000
=
4000 lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Measurement Data (T
c
= 25° C)
Part Number
Nominal CCT
1
(K)
3000
3500
4000
5000
5700
3000
3500
4000
5000
5700
3000
3500
4000
5000
5700
80
700
80
700
80
350
CRI
2
Nominal Drive
Current
(mA)
Typical Flux
3,4
T
c2
(lm)
Minimum Flux
4,5
T
c2
(lm)
=
25º C
=
25º C
Typical V
f
(V)
19.5
19.5
19.5
19.5
19.5
19.5
19.5
19.5
19.5
19.5
39.0
39.0
39.0
39.0
39.0
Typical
Power
(W)
6.8
6.8
6.8
6.8
6.8
13.6
13.6
13.6
13.6
13.6
27.3
27.3
27.3
27.3
27.3
Typical
Efficacy
(lm/W)
175
175
180
180
180
175
175
180
180
180
175
175
180
180
180
BXEB-L0280Z-30E1000-C-B3
BXEB-L0280Z-35E1000-C-B3
BXEB-L0280Z-40E1000-C-B3
BXEB-L0280Z-50E1000-C-B3
BXEB-L0280Z-57E1000-C-B3
BXEB-L0560Z-30E2000-C-B3
BXEB-L0560Z-35E2000-C-B3
BXEB-L0560Z-40E2000-C-B3
BXEB-L0560Z-50E2000-C-B3
BXEB-L0560Z-57E2000-C-B3
BXEB-L1120Z-30E4000-C-B3
BXEB-L1120Z-35E4000-C-B3
BXEB-L1120Z-40E4000-C-B3
BXEB-L1120Z-50E4000-C-B3
BXEB-L1120Z-57E4000-C-B3
Notes for Table 1:
1195
1195
1230
1230
1230
2390
2390
2460
2460
2460
4780
4780
4920
4920
4920
1076
1076
1107
1107
1107
2151
2151
2214
2214
2214
4302
4302
4428
4428
4428
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI Values are minimums.
3. Products tested at nominal test current where temperature of center case temperature point T
c
=
25° C. Values may vary depending on the thermal design
of the luminaire and/or the exposed environment to which the product is subjected.
4. Bridgelux maintains a ± 7% tolerance on flux measurements.
5. Minimum performance values are provided as reference only and are not a guarantee of performance.
3
