833-13-066-10-002000 datasheet, PDF

Datasheet> All Categories > The connector> 833-13-066-10-002000

833-13-066-10-002000: DescriptionCONN SKT DBL; CategoryThe connector; File Size623KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

833-13-066-10-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	833-13-066-10-002000	-	-	View	Buy Now

833-13-066-10-002000 Overview

CONN SKT DBL

833-13-066-10-002000 Parametric

Parameter Name	Attribute value
Connector type	socket
Contact type	female socket
style	board to board
Number of pins	66
Number of pins loaded	all
Spacing - Mating	0.079"（2.00mm）
Number of rows	2
Line spacing - patching	0.079"（2.00mm）
Installation type	Through hole
Termination	welding
Fastening type	push-pull
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	30.0µin（0.76µm）
Insulation color	black
Insulation height	0.179"（4.55mm）
Contact length - terminal	0.111"（2.82mm）
Operating temperature	-55°C ~ 125°C
Material flammability rating	UL94 V-0
Contact Surface Preparation - Column	gold
Joint stack height	-
Intrusion protection	-
characteristic	-
Rated current	3A
Rated voltage	-
application	-
Insulation Materials	Polydimethylcyclohexyl terephthalate (PCT), polyester
Contact shape	round
Contact material	copper beryllium
Contact Surface Treatment Thickness - Column	10.0µin（0.25µm）

Preview

Download Datasheet

View All

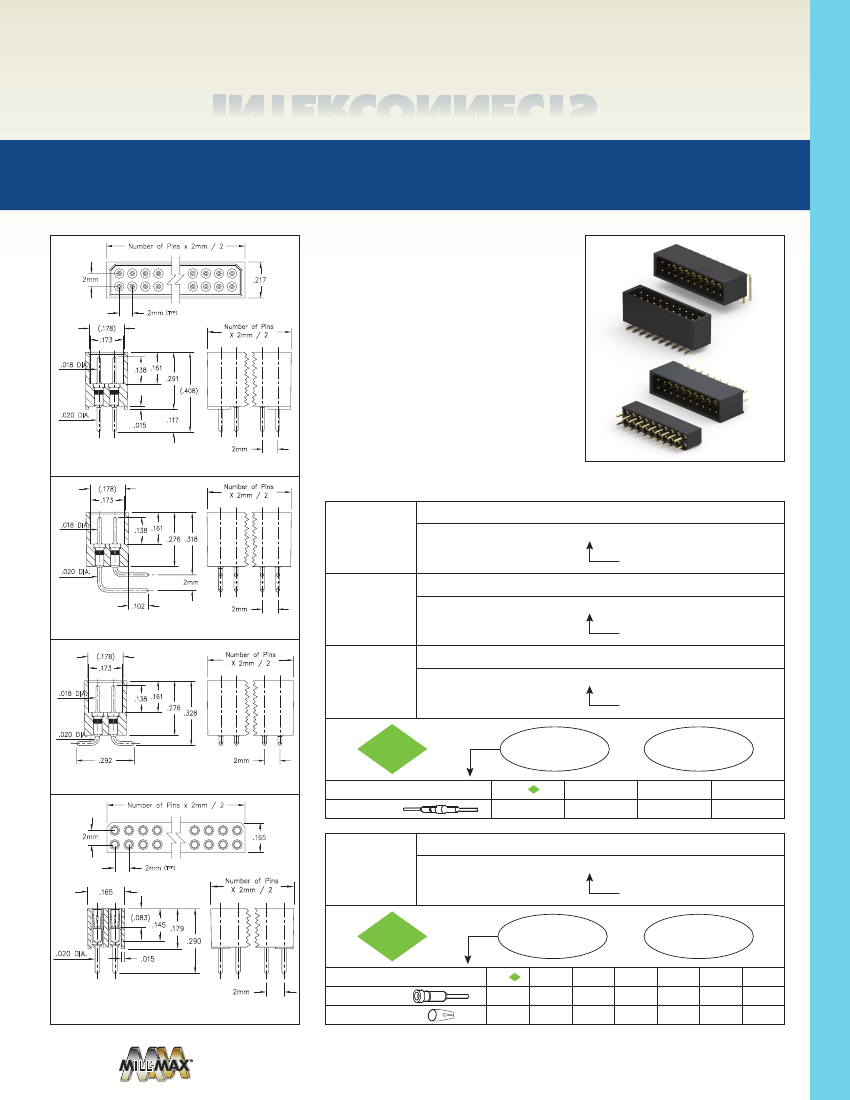

INTERCONNECTS

SERIES 832 & 833 • 2mm

GRID (.020” DIA. PINS), SHROUDED STRAIGHT,

SURFACE MOUNT & RIGHT ANGLE • DOUBLE ROW STRIPS

Number of Pins x 2mm / 2

•

Shrouded pin interconnects available with

.217

2mm

(.178)

.173

(TYP)

Number of Pins

X 2mm / 2

straight Series 832...10-052 or surface mount

832...30-052 and use MM #3143 pins. Series

832...20-052 right angle interconnects use

MM #3160 and #3161 pins. See page 214 for

details

MM #1802 and accept pin diameters from

.015”-.025”. See page 169 for details

•

Series 833...10-002 with keying features use

•

Receptacles use Hi-Rel, Low force, 4-finger

.018 DIA.

.138 .161

.291

(.408)

.020 DIA.

.015

.117

BeCu #30 contact rated at 3 amps. See page

253 for details

suitable for all soldering operations

FIG. 1

(.178)

.173

2mm

•

Insulators are high temperature thermoplastic,

Number of Pins

X 2mm / 2

ORDERING INFORMATION

Series 832...10-052

Straight Pin Header

004-100

.018 DIA.

.138 .161

.276 .318

FIG. 1

832-10-_ _ _-10-052000

Specify number of pins

.020 DIA.

2mm

Series 832...20-052

2mm

Right Angle Pin Header

004-100

.102

FIG. 2

(.178)

.173

Number of Pins

X 2mm / 2

FIG. 2

832-10-_ _ _-20-052000

Specify number of pins

Series 832...30-052

Surface Mount Pin Header

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.018 DIA.

.138 .161

.276

.328

FIG. 3

RoHS - 2

832-10-_ _ _-30-052000

Specify number of pins

XX=Plating Code

See Below

μ”

.020 DIA.

.292

2mm

2011/65/EU

FIG. 3

Number of Pins x 2mm / 2

2mm

SPECIFY PLATING CODE XX=

Pin Plating

.165

2mm

(TYP)

.165

Number of Pins

X 2mm / 2

FIG. 4

RoHS - 2

833-13-_ _ _-10-002000

Specify number of pins

XX=Plating Code

See Below

μ”

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

(.083)

.145

.179

.290

2011/65/EU

.020 DIA.

.015

SPECIFY PLATING CODE XX=

2mm

FIG. 4

Sleeve (Pin)

Contact (Clip)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 45.1 | INTERCONNECTS

Series 833...10-002

Double Row Keying Socket
