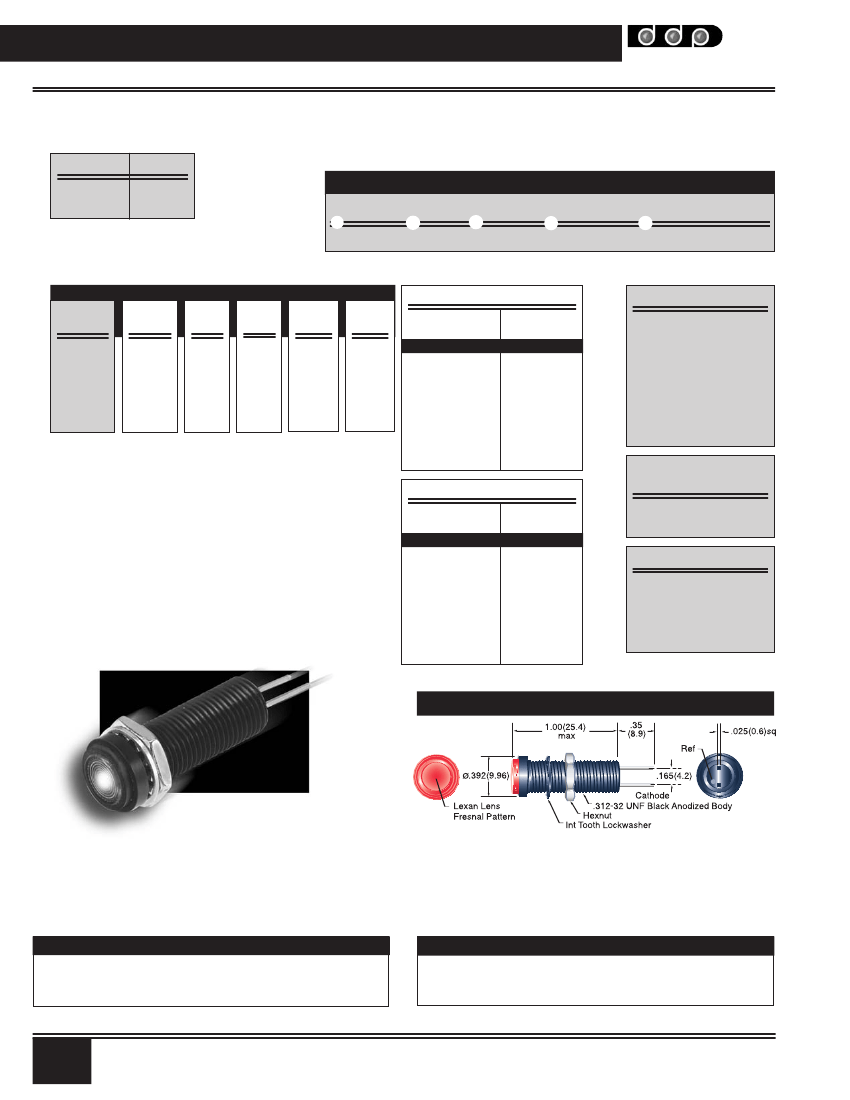

74S-NWR5H-CR Overview

PMI .312" LED 5V RED

.312" MOUNT PANEL LIGHT
74S Series
- Black Anodized Aluminum Body
- For Detailed LED Data, See Discrete Section, Model 200
Data Display Products
®
1
Model
74S
Wires
W
(optional)
TO ORDER, FOLLOW THE EXAMPLE:
Select one
BOLD
component from each numbered category in the tables below.
Lens
Diffusion
-C
1
Model
74S
2
-NWR
3
LED
Voltage
120
4
5
Lens
Color
R
§
Part Number
74S-NWR120-CR
HIGH INTENSITY - WATERCLEAR ENCAPSULATION
2
LED
-NWR
-NWO
-NWA
-NWG
-NWB
-NWW
-NWL
Voltage/Current
Design
Max
Vf/If
Vf/If
V/C Table I
5V/22mA
5.5V/28mA
12V/20mA
14V/25mA
15V/24mA
16.5V/28mA
24V/17mA
26V/20mA
28V/16.5mA
30V/18mA
48V/15mA
50V/16mA
60V/9mA
65V/10mA
120VAC/3.5mA
130VAC/4mA
Voltage/Current
Design
Max
Vf/If
Vf/If
V/C Table II
5V/15mA
5.5V/23mA
12V/15mA
14V/20mA
15V/15mA
16.5V/18mA
24V/15mA
26V/18mA
28V/15mA
30V/17mA
48V/9.5mA
50V/10mA
60V/7mA
65V/8mA
120VAC/3.5mA
130VAC/4mA
λpk
Color
RED
ORG
AMB
GRN
BLU
CWHT
WWHT
(nm)
Iv
[1]
(mcd)
Viewing
V/C
Table
[2]
3
Voltage
[3]
2
5H
12H
15H
24H
28H
48H
60H
120
Angle
30
30
30
45
45
50
50
634
605
592
520
465
2800
2000
2800
2400
700
2500
1800
I
I
I
II
II
II
II
4
5
Lens
Diffusion
-C
Clear
Lens Color
R
Red
A
Amber
Y
Yellow
G
Green
W
Water
Clear
74S
[1] Iv = typical luminous intensity @ If = 20mA(Ta=25°C). Iv is measured without lenses.
[2] See Voltage/Current table for design specifications.
[3] Ta = 25°C. Voltages 5H through 60H are VDC. For AC operation, insert D after Voltage (e.g 24HD),
D indicates built-in rectifier; not required for 5H or 120VAC. DC operation not available for 120V.
Standard Wire Leads:
6.0" total length(nominal)/.50" stripped (nominal), red
anode/black cathode, 24 AWG TPB UL1061 insulation.
Contact factory for other lengths, gauges and colors.
All dimensions are in inches (mm)
Tolerances: .xx"(.x) ±.025"(.63) / .xxx"(.xx)±.010"(.25)
Specifications are subject to change without notice.
58
445 S. Douglas Street, El Segundo, CA 90245-4630 • (800) 421-6815 • (310) 640-0442 • FAX (310) 640-7639
ww w.datadisplay.com
© 2005 Data Display Products
