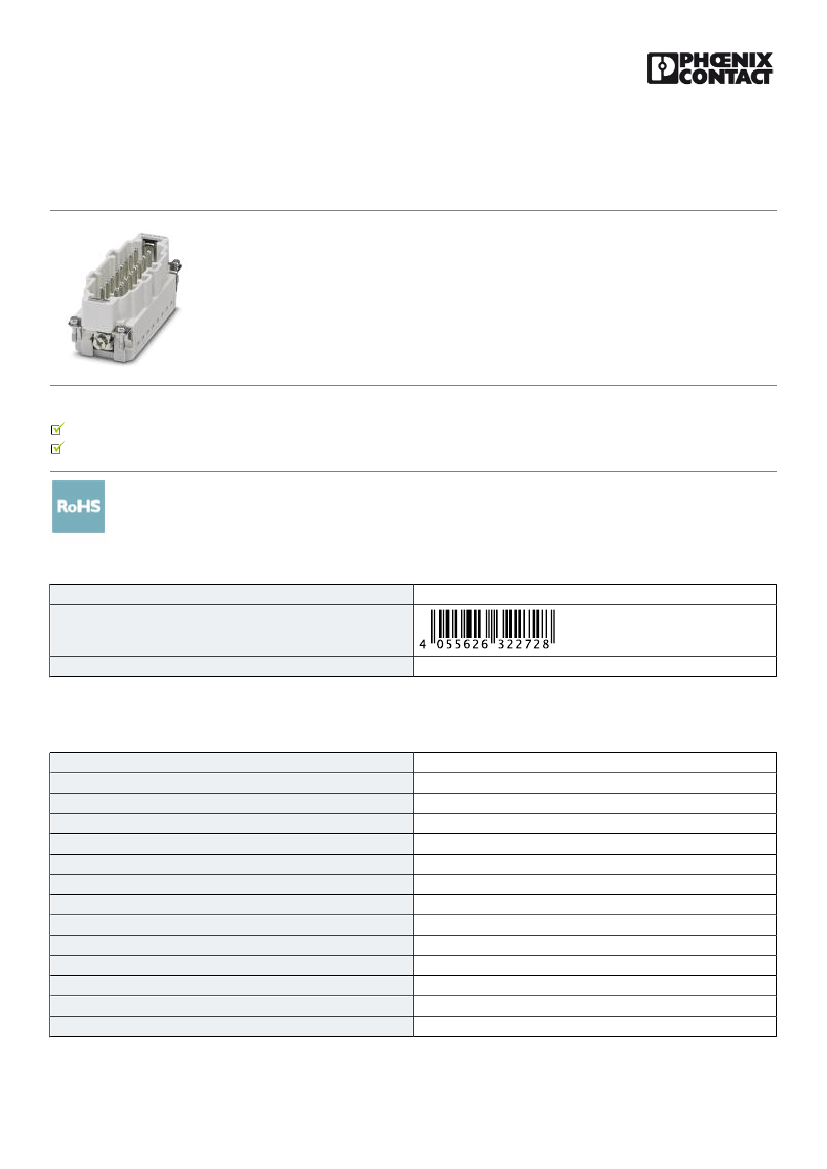

Contact insert - HC-B16-I-TPT-M - 1423019
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Contact insert, number of positions: 16+PE, size: B16, number of connections per position: 2, Pin, Push-in
connection, 500 V, 10 A, 0.25 mm² ... 1.5 mm², application: Power
Your advantages
For fast coding with plastic profile
Significant time savings during conductor connection
Key Commercial Data
Packing unit
GTIN
GTIN
4055626322728
1 pc
Technical data
General
Note
For HEAVYCON housing B16 and B32
Connectors may be operated only when there is no load/voltage.
For solid conductors or stranded conductors with ferrules
Connection method
Number of connections per position
Degree of pollution
Overvoltage category
Number of positions
Insertion/withdrawal cycles
Size
Contact numbering
Conductor cross section
Connection cross section AWG
Stripping length of the individual wire
Push-in connection
2
3
III
16+PE
≥ 500
B16
1 - 16
0.25 mm² ... 1.5 mm² (with ferrule)
24 ... 16 (with ferrule)
8 mm ±1 mm
10/31/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1423019
Contact insert - HC-B16-I-TPT-M - 1423019
Technical data
General
Assembly instructions
Connection
To ensure correct use, installation in housing with IP54 protection or
better is required
Connectors may only be actuated when there is no load/voltage.
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C
Material data
Contact material
Contact surface material
Contact carrier material
Copper alloy
Ag
PC
Electrical characteristics
Rated voltage (III/3)
Rated surge voltage
Rated current
500 V
6 kV
10 A
Standards and Regulations
Constructional and testing regulations
DIN EN 61984
DIN EN 60664
IEC 60352
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
I [A]
25
20
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
Diagram
15
10
5
0
0
10 20 30 40 50 60 70 80 90 100 110 120 130
T [°C]
=
1,5 mm²
=
1,0 mm²
=
0,75 mm²
Connector pin assignment, connection side
Derating diagram
10/31/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1423019
Contact insert - HC-B16-I-TPT-M - 1423019
Dimensional drawing
83,5
77,5
34
27
Dimensional drawing
82
72
34,3
27
20
77,5
Ø3,4
Mounting cutout when used without housing
Approvals
Approvals
Approvals
CSA / UL Recognized / EAC
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
600 V
11 A
16
35
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
14 A
16
E118976
EAC
EAC-Zulassung
10/31/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1423019
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/31/2018 Page 4 / 4
