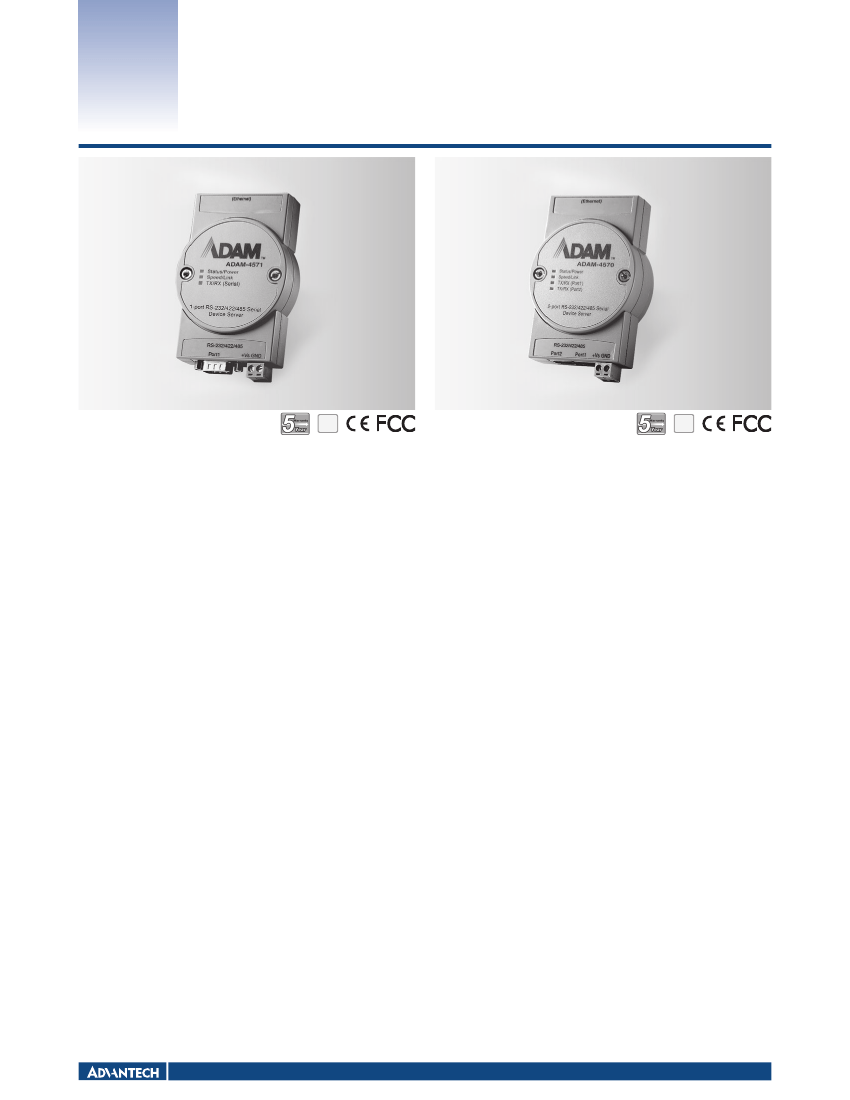

ADAM-4571/L
ADAM-4570/L
1-port RS-232/422/485 Serial Device Server
2-port RS-232/422/485 Serial Device Server
RoHS
COMPLIANT
2011/65/EU
RoHS
COMPLIANT
2011/65/EU
Specifications
Ethernet Communications
Compatibility
Speed
No. of Ports
Port Connector
Protection
IEEE 802.3, IEEE 802.3u
10/100 Mbps
1
8-pin RJ45
Built-in 1.5 KV magnetic isolation
Mechanics

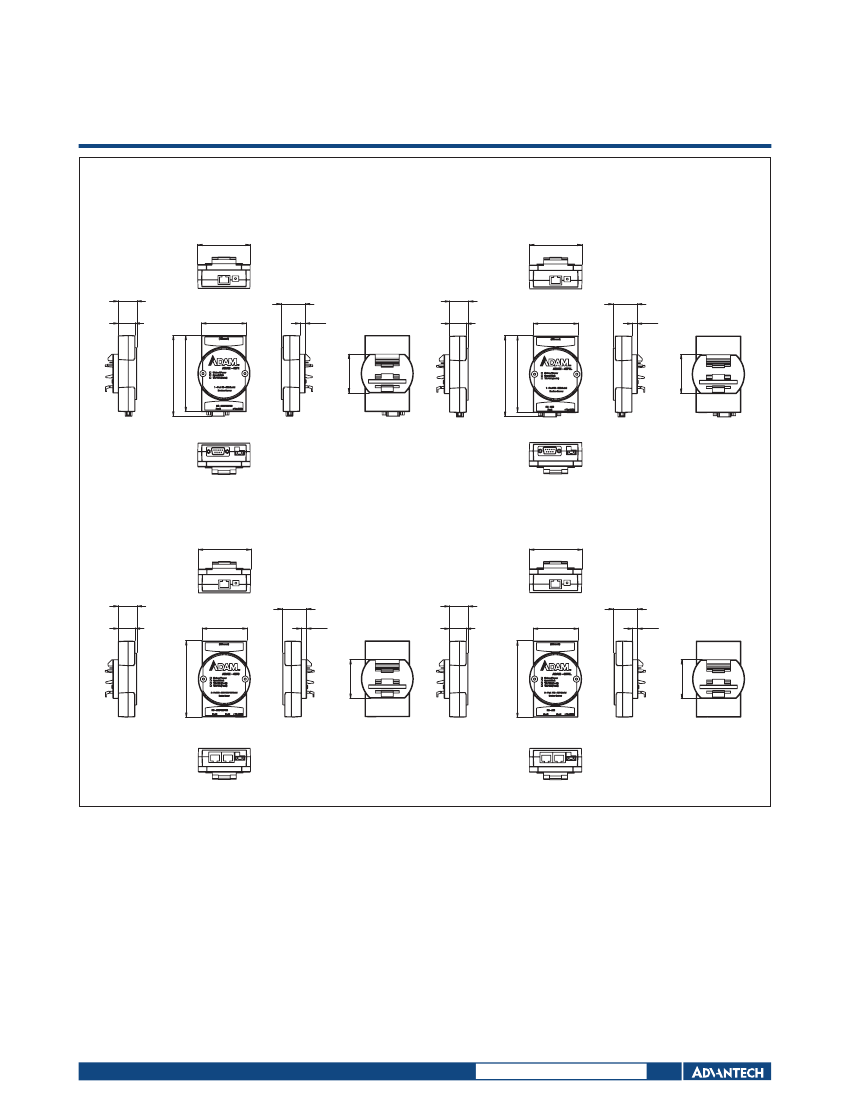

Dimension (W x H x D)
Enclosure
Mounting
Weight
70 x 130 x 30 mm (2.76" x 5.12" x 1.18")
ABS+PC with solid mounting hardware
DIN-rail, Stack, Wall
ADAM-4571/4571L: 135 g
ADAM-4570/4570L: 160 g
Serial Communications
Port Type
No. of Ports
Port Connector
Data Bits
Stop Bits
Parity
Flow Control
Baud Rate
Serial Signals
ADAM-4571/4570: RS-232/422/485, software
selectable
ADAM-4571L/4570L: RS-232
ADAM-4571/4571L: 1
ADAM-4570/4570L: 2
ADAM-4571/4571L: DB9 male
ADAM-4570/4570L: 10-pin RJ48
5, 6, 7, 8
1, 1.5, 2
None, Odd, Even, Space, Mark
XON/XOFF, RTS/CTS
50 bps ~ 921.6 kbps, any baud rate setting
RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI,
GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
15 KV ESD protection for all signals
General
LED Indicators
Reboot Trigger
System: Power, System Status
LAN: Speed, Link/Active
Serial: Tx, Rx
Built-in WDT (watchdog timer)
Power Requirements
Power Input
Power Connector
Power Consumption
10 ~ 30 V
DC
Terminal block
ADAM-4571/4571L: 2.5 W
ADAM-4570/4570L: 2.5 W
Environment
Operating Temperatures
Storage Temperature
Operating Humidity
-10 ~ 60°C (14 ~ 140°F)
-20 ~ 80°C (-4 ~ 176°F)
5 to 95% RH
Protection
Regulatory Approvals
EMC
CE, FCC Part 15 Subpart B (Class A)
Software
OS Support
Utility Software
Operation Modes
32-bit/64-bit Windows XP/Vista/7/8, Windows Server
2003/2008/2008 R2/2012, Windows CE 5.0, and Linux
Advantech EKI Device Configuration Utility
COM port redirection (Virtual COM)
TCP/UDP server (polling) mode
TCP/UDP client (event handling) mode
Pair Connection (peer to peer) mode
Windows utility, Telnet console, Web Browser
ARP, ICMP, IP, TCP, UDP, BOOTP, DHCP Client,
Auto IP, Telnet, SNMP, HTTP, DNS, SMTP
Ordering Information
ADAM-4571
1-port RS-232/422/485 Serial Device Server
ADAM-4571L
1-port RS-232 Serial Device Server
ADAM-4570
2-port RS-232/422/485 Serial Device Server
ADAM-4570L
2-port RS-232 Serial Device Server
*ADAM-4570/4570L includes 2pcs OPT1A
Configuration
Protocol
Accessories
OPT1A
OPT1D
1 m RJ48 to DB9 Male Cable
30 cm RJ48 to DB9 Male Cable
Serial Device Servers and IP Gateways
All product specifications are subject to change without notice
Last updated : 8-Oct-2014
