AGU-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> AGU-25

AGU-25: DescriptionElectric Fuse, Fast Blow, 25A, 32VAC, Inline/holder; CategoryCircuit protection; File Size33KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

AGU-25 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AGU-25	-	-	View	Buy Now

AGU-25 Overview

Electric Fuse, Fast Blow, 25A, 32VAC, Inline/holder

AGU-25 Parametric

Parameter Name	Attribute value
Maker	Cooper Industries
Reach Compliance Code	unknown
Is Samacsys	N
Fusing characteristics	FAST
body height	38.1 mm
Body length or diameter	10.41 mm
Circuit protection type	ELECTRIC FUSE
Manufacturer's serial number	AGU
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	10.41mm x 38.1mm
Rated current	25 A
Rated voltage (AC)	32 V
surface mount	NO
Terminal shape	END CAP
Base Number Matches	1

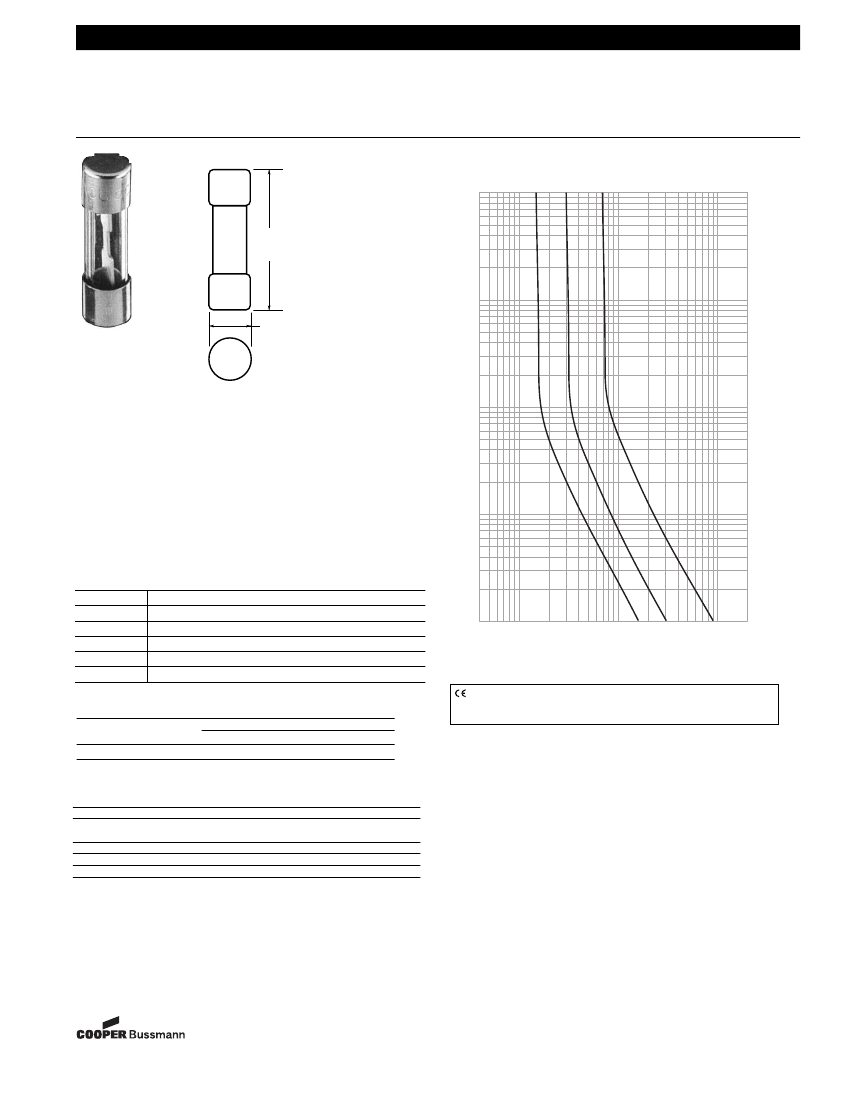

Preview

Download Datasheet

View All

Bussmann

Fast-Acting Ferrule Fuses

⁄‹Ω£™∑ ≈ 1⁄Ω™∑ Midget

Dimensional Data

AGU

Time-Current Characteristic Curves–Average Melt

100

AMPERE

RATING

1.5"

(±0.031)

0.41"

(±0.003)

Catalog Symbol:

AGU (5AG)

Fast-Acting

Ampere Rating:

1 to 60 Amperes

No Agency Listings

• Glass tube.

• Nickel plated brass ferrules.

Options:

• Gold plated ferrules

Order number AGU-(amp)-1J0281

TIME IN SECONDS

AGU-50

AGU-60

—

Electrical Ratings (Catalog Symbol and Amperes)

250 Volts AC

AGU-1

AGU-2

AGU-3

—

32 Volts AC

AGU-4

AGU-5

AGU-8

AGU-10

AGU-15

AGU-20

AGU-25

AGU-30

AGU-35

AGU-40

.01

100

CURRENT IN AMPERES

200

Form No. AGU

Page 1 of 1

BIF Doc #2008

Carton Quantity and Weight

Ampere

Ratings

1-60

Carton

Qty.

100

Weight

Lbs.

1.3

Kg.

0.590

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000 Vac, 75-1500 Vdc). Refer to BIF document #8002 or contact

Bussmann Application Engineering at 314-527-1270 for more information.

Recommended Fuseblocks–30 amps maximum

Poles

Terminal Type

Screw With

Quick Connect

BM6031SQ

BM6032SQ

BM6033SQ

Pressure Plate

w/Quick Connect

BM6031PQ

BM6032PQ

BM6033PQ

Box

Lug

BM6031B

BM6032B

BM6033B

The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin

is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information con-

tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

12-17-98

SB98107

Rev. A
