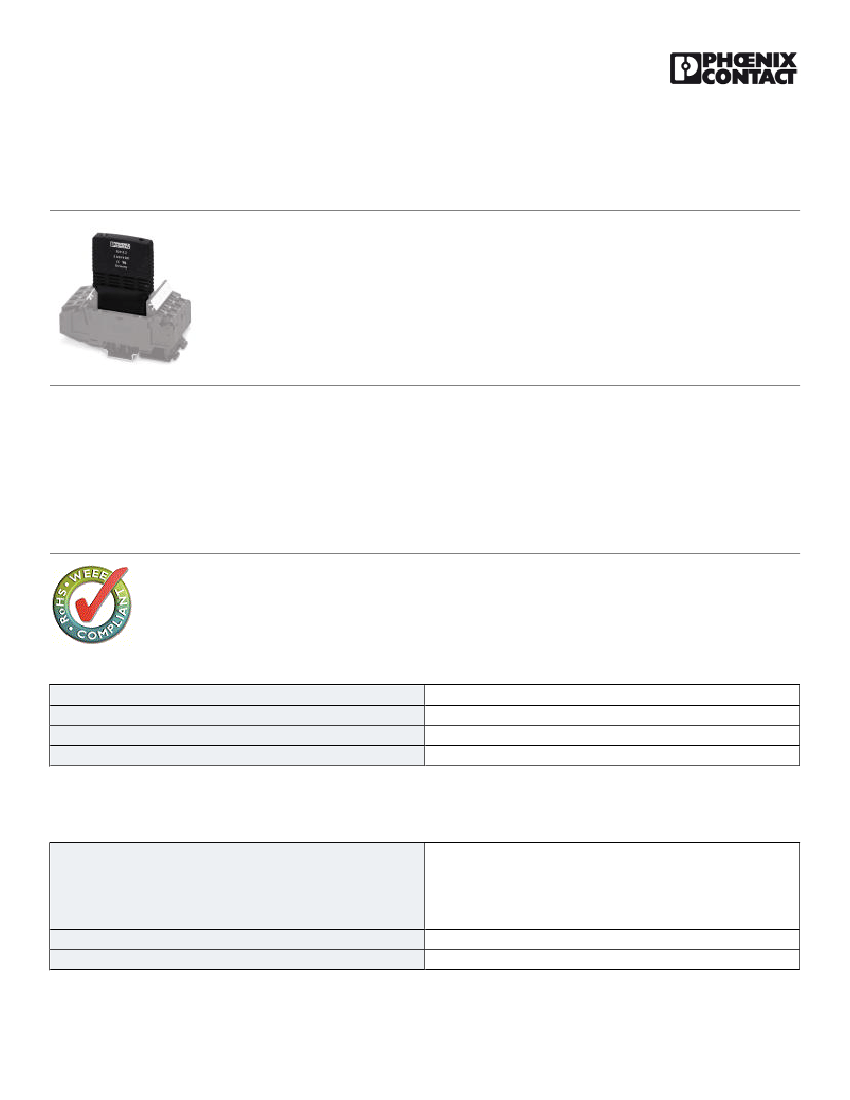

Electronic device circuit breaker - ECP-E2-1A - 0900139
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic device circuit breaker, Number of positions: 1, Connection method: Screw connection, Width: 12.5 mm,
Fuse type: Electronic, Fuse type: Automatic device, Mounting type: On base element, Color: black
Why buy this product
■
■
■
■
■
■
Includes the advantages of current limitation
Sufficient supply of all error-free load circuits
Output voltage of switched-mode power supply unit remains stable
Responds faster than switched-mode power supply unit to overload and short circuit
In addition, the ECP-E2 can be controlled remotely by the control input (12), e.g., by means of a PLC
Application - all aspects of the switched-mode power supply unit
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
44.0 g
85363030
Germany
Technical data
General
When mounted in rows without convection cooling, the nominal device
current should only be led to a maximum of 80% due to the thermal effect
during continuous operation (100% operating factor).
Special precautionary measures must be taken in systems or machines, to
prevent components from restarting (e.g., use of a safety PLC).
Parallel connection of multiple circuit breakers is not permitted.
On base element
black
08/01/2016 Page 1 / 5
Installation instructions
Mounting type
Color
https://www.phoenixcontact.com/us/products/0900139
Electronic device circuit breaker - ECP-E2-1A - 0900139
Technical data
General
Number of positions
Overvoltage category
Insulating material
Flammability rating according to UL 94
1
II
PA66/6
V0
Electrical data
Fuse
Fuse type
Rated surge voltage
Operating voltage
Electronic
Automatic device
0.5 kV
24 V DC
24 V DC ()
18 V DC ... 32 V DC
Nominal current I
N
Required backup fuse
Dielectric strength
Degree of pollution
Overvoltage category
Insulating material group
Switching capacity I
CN
Closed-circuit current range I0
1A
not required, integrated failsafe element
max. 32 V DC (Load circuit)
2
II
I
Active current limitation
typ. 25 mA ±5 mA (When switched on)
Dimensions
Height
Width
Depth
Height NS 35/7,5
Height NS 35/15
Complete module height
Complete module width
Complete module depth
60 mm
12.5 mm
70 mm
144 mm
151.5 mm
115 mm
38 mm
112.5 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP30 (Actuation area)
0 °C ... 50 °C (non-condensing)
Connection data
Connection method
Screw connection
Standards and Regulations
Standards/specifications
UL 2367
08/01/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/0900139
Electronic device circuit breaker - ECP-E2-1A - 0900139
Technical data
Standards and Regulations
UL 508
CSA 22.2 No. 14
Drawings
Block diagram
On/Off
LINE (+)
GND (-)
Diagram
Stop point
typ. 1,1 x l
N
1,8 x l
N
Control Unit
Switching time [s]
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27141116
27141116
27141116
27141116
27141116
27141116
27141116
27141116
1 11 13
14 12 2
10
10
4
SC
3
10
2
SO
Control
LOAD (+)
<I
10
5
1
0,1
0,01
0
1
2
I
K
3
Multiples of I
N
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000899
EC000899
EC000899
EC000899
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
30211812
39121411
39121411
08/01/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/0900139
Electronic device circuit breaker - ECP-E2-1A - 0900139
Classifications
UNSPSC
UNSPSC 12.01
UNSPSC 13.2
39121411
39121411
Approvals
Approvals
Approvals
UL Recognized / EAC
Ex Approvals
CSA
Approvals submitted
Approval details
UL Recognized
EAC

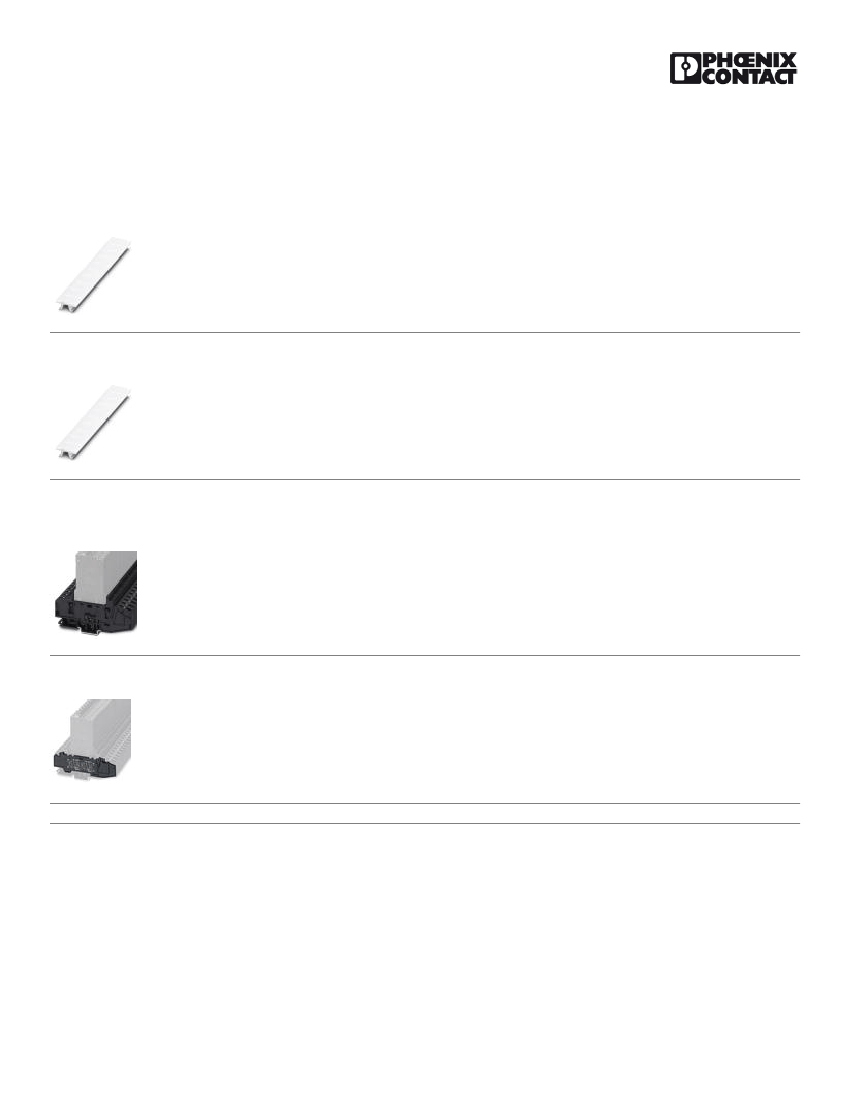

Accessories
Accessories
Marker pen
Marker pen - X-PEN 0,35 - 0811228
Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
Terminal marking
08/01/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/0900139
Electronic device circuit breaker - ECP-E2-1A - 0900139
Accessories
Zack marker strip - ZB 6:UNBEDRUCKT - 1051003
Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into tall marker groove, for
terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm
Zack marker strip - ZB 6/WH-100:UNBEDRUCKT - 5060935
Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into tall marker groove, for
terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm
Additional products
Box mounting base - TMCP SOCKET M - 0916589
Modular socket element, 2-position, for holding two circuit breakers, each with a single position
End cover - TMCP CONNECT LR - 0916592
End cover, Length: 115 mm, Width: 6 mm, Color: black
