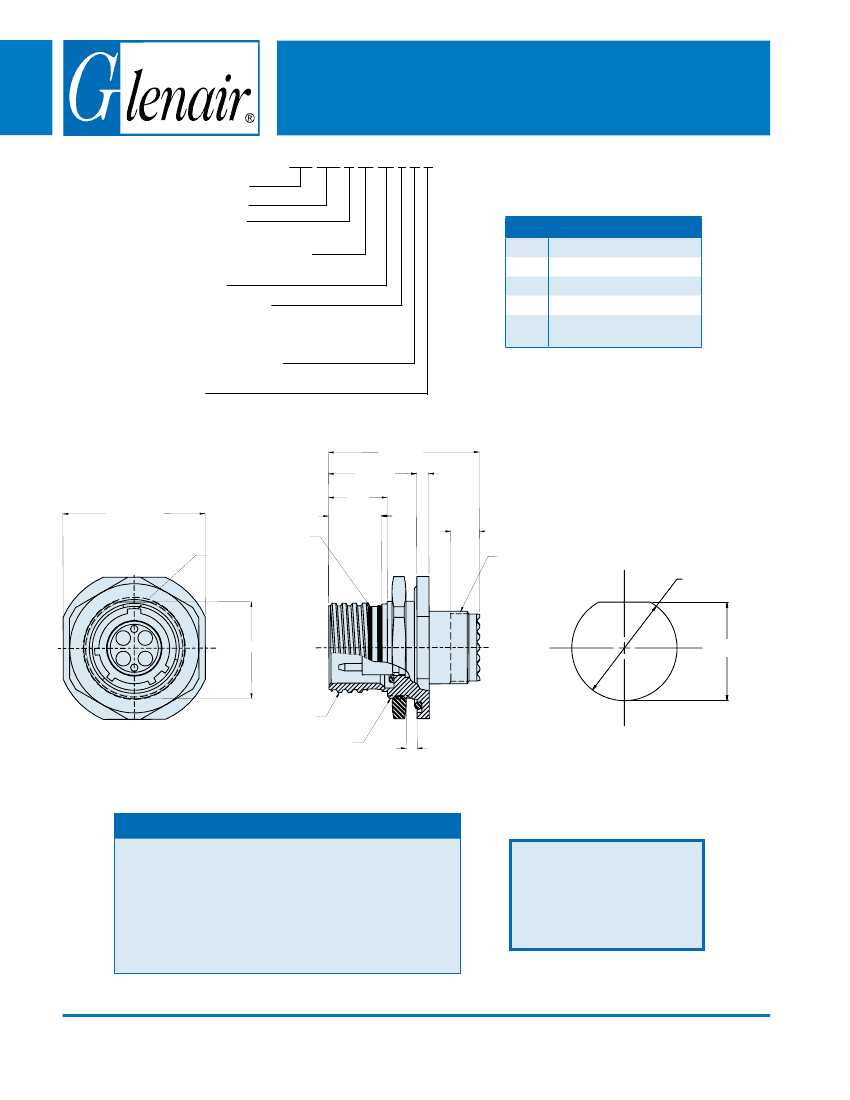

185-001 (08 Jam Nut)
Expanded Beam Fiber Optic Threaded Coupling
Jam Nut Receptacle Connector
D38999 Style Shell Size 13
Expanded Beam
Connectors
Product Series
Basic Number
Finish Symbol
(Table II) Omit for None
Shell Size
Mode
S = Singlemode
M = Multimode
2X 1.390
Max
Master
Polarizing
Keyway
.942 Max Flat
185-001 C 08-13-4 N S
TABLE II: FINISH
SYM
C
M
Z1
NF
FINISH
Anodize, Black
Electroless Nickel Plate
Stainless Steel, Passivated
Zinc-Nickel/Olive Drab over
Electroless Nickel
08 = Receptacle Assembly,
Jam Nut
Insert arrangement
4 = 4 Optical Channels
2 = 2 Optical Channels
F = 2 Optical and 2 Electrical
Aternate Key Position
(N,A,B,C,D,E) Per MIL-DTL-38999
1.468 Max
.890 Max
.579
.555
.121 Max
Yellow Band
.520 Max
Fully Mated
Indicator
Red Band
.280 Min Full Thread
M18 X 1.0-6g-0.100R
Dia.
1.020
1.010
.955
Flat
.945
.8750-.1P-.3L-TS-2A
08
Jam Nut
Receptacle
M25 X 1.0-6g 0.100R
.126 Panel Thickness
.062
APPLICATION NOTES
1. Assembly identified with Glenair, Inc and P/N, Space Permitting.
2. Glenair 185-001 Connector Features:
A. Plug Barrel, Shell, Coupling Nut- AL/BR AB2 or CA104 or
DGS1043
B. Seal, Gasket- Fluorosilicone Blend
C. Thrust Washer & Retaining Ring- Stainless Steel
D. Grounding Fingers- Copper Alloy
3. Metric dimensions (mm) are in parentheses.
PART SuPPLIED ONLY AS
TERMINATED ASSEMBLY
CONSuLT FACTORY
FOR CABLE DESIGN
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
G-4
