1-1478930-1 datasheet, PDF - EEWORLD Datasheet

1-1478930-1: DescriptionSMA CONNECTOR, JACK; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

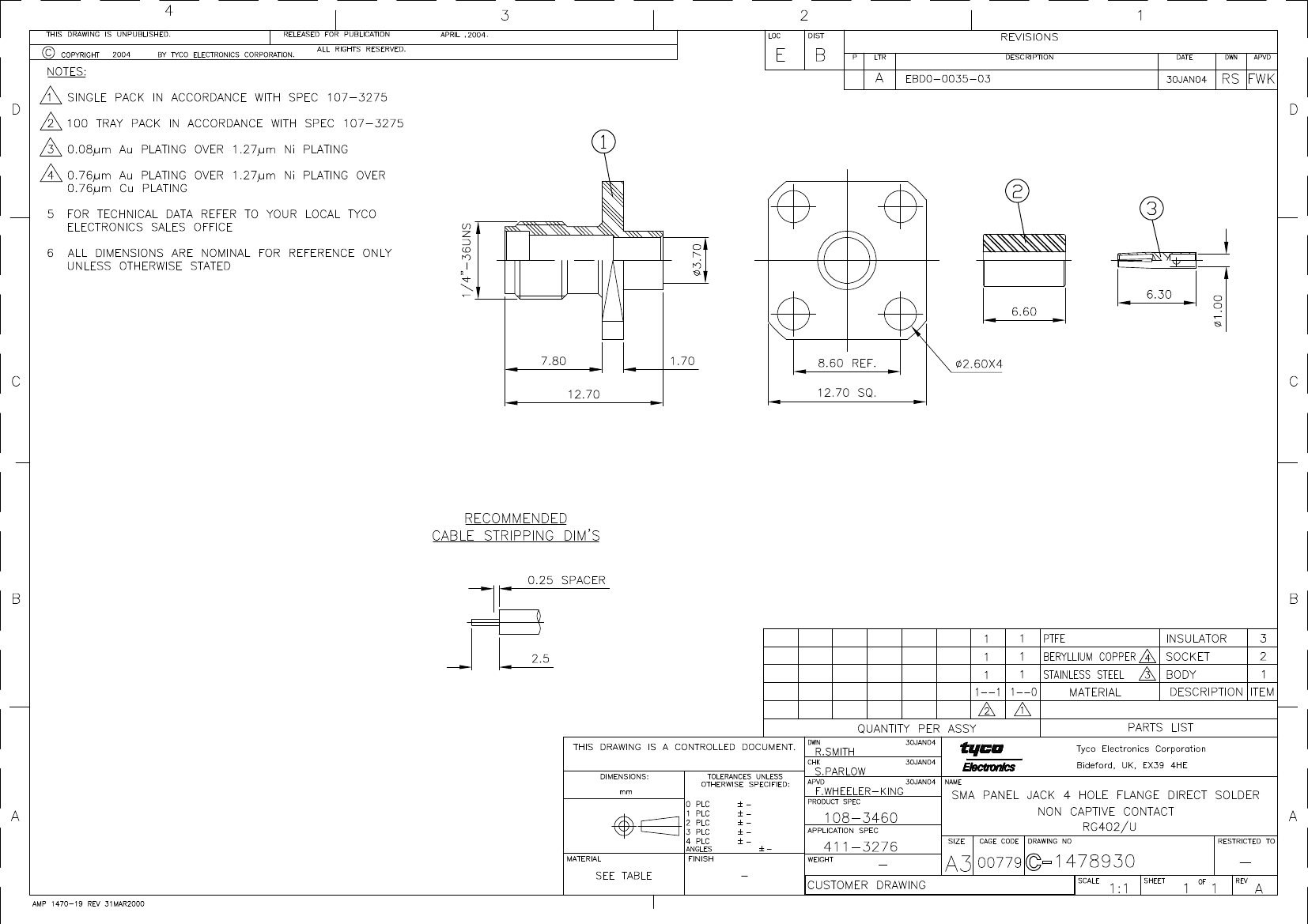

1-1478930-1 Overview

SMA CONNECTOR, JACK

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
subject depth	0.307 inch
Body/casing type	JACK
Cable type	RG-402/U
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
Contact style	COAX
DIN compliance	NO
IEC compliance	NO
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1478930
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Terminal length	0.126 inch
Termination type	SOLDER LUG
Total number of contacts	1
Base Number Matches	1

	1-1478930-1
Description	SMA CONNECTOR, JACK
Reach Compliance Code	unknow
ECCN code	EAR99
subject depth	0.307 inch
Body/casing type	JACK
Cable type	RG-402/U
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (30) OVER NICKEL
Contact point gender	FEMALE
Contact style	COAX
DIN compliance	NO
IEC compliance	NO
insulator material	POLYTETRAFLUOROETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1478930
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	165 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Terminal length	0.126 inch
Termination type	SOLDER LUG
Total number of contacts	1
Base Number Matches	1
