VS-MBRB745TRL-M3

Description
DIODE SCHOTTKY 45V 7.5A TO263AB
CategoryDiscrete semiconductor    diode
File Size232KB,11 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

VS-MBRB745TRL-M3 Online Shopping

Suppliers Part Number Price MOQ In stock
VS-MBRB745TRL-M3 - - View Buy Now

VS-MBRB745TRL-M3 Overview

DIODE SCHOTTKY 45V 7.5A TO263AB

VS-MBRB745TRL-M3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVishay
package instructionD2PAK-3/2
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time26 weeks
Other featuresFREE WHEELING DIODE
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.84 V
JEDEC-95 codeTO-263AB
JESD-30 codeR-PSSO-G2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current150 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Maximum output current7.5 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)245
Maximum repetitive peak reverse voltage45 V
Maximum reverse current100 µA
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationSINGLE
Maximum time at peak reflow temperature30

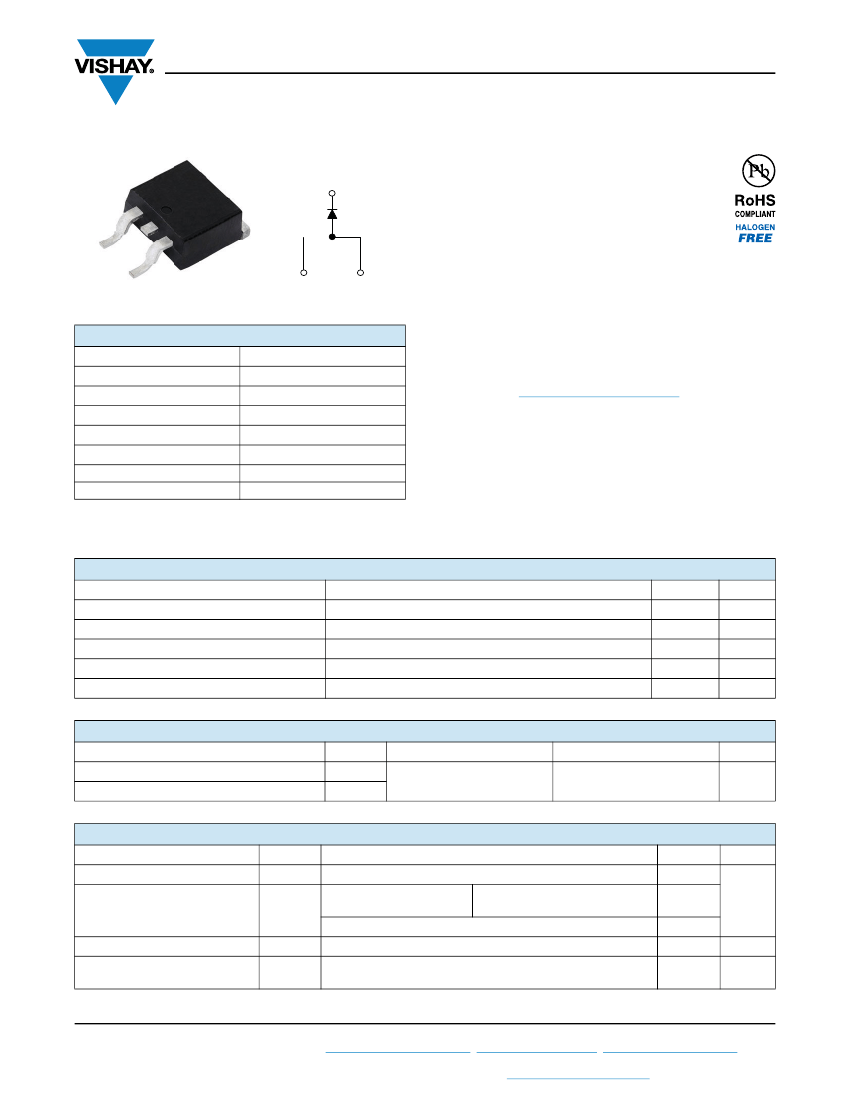

VS-MBRB735-M3, VS-MBRB745-M3
www.vishay.com
Vishay Semiconductors
High Performance Schottky Rectifier, 7.5 A
Base
cathode
2
FEATURES
• 150 °C T
J
operation
• High frequency operation
• Low forward voltage drop
• High purity, high temperature epoxy
encapsulation for enhanced mechanical
strength and moisture resistance
• Guard ring for enhanced ruggedness and long term
reliability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 245 °C
2
1
3
1
N/C
3
Anode
D
2
PAK (TO-263AB)
PRIMARY CHARACTERISTICS
I
F(AV)
V
R
V
F
at I
F
I
RM
T
J
max.
E
AS
Package
Circuit configuration
7.5 A
35 V, 45 V
0.57 V
15 mA at 125 °C
150 °C
7 mJ
D
2
PAK (TO-263AB)
Single
• Designed and qualified according to JEDEC
®
-JESD 47
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION
The VS-MBRB7... Schottky rectifier series has been
optimized for low reverse leakage at high temperature. The
proprietary barrier technology allows for reliable operation
up to 150 °C junction temperature. Typical applications are
in switching power supplies, converters, freewheeling
diodes, and reverse battery protection.
MAJOR RATINGS AND CHARACTERISTICS
SYMBOL
I
F(AV)
V
RRM
I
FSM
V
F
T
J
t
p
= 5 μs sine
7.5 A
pk
, T
J
= 125 °C
Range
CHARACTERISTICS
Rectangular waveform
VALUES
7.5
35, 45
690
0.57
-65 to +150
UNITS
A
V
A
V
°C
VOLTAGE RATINGS
PARAMETER
Maximum DC reverse voltage
Maximum working peak reverse voltage
SYMBOL
V
R
V
RWM
VS-MBRB735-M3
35
VS-MBRB745-M3
45
UNITS
V
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Maximum average forward current
Non-repetitive peak surge current
Non-repetitive avalanche energy
Repetitive avalanche current
SYMBOL
I
F(AV)
I
FSM
E
AS
I
AR
T
C
= 131 °C, rated V
R
5 μs sine or 3 μs rect. pulse
Following any rated load condition
and with rated V
RRM
applied
TEST CONDITIONS
VALUES
7.5
690
150
7
2
mJ
A
A
UNITS
Surge applied at rated load condition halfwave single phase 60 Hz
T
J
= 25 °C, I
AS
= 2 A, L = 3.5 mH
Current decaying linearly to zero in 1 μs
Frequency limited by T
J
maximum V
A
= 1.5 x V
R
typical
Revision: 06-Nov-17
Document Number: 96396
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

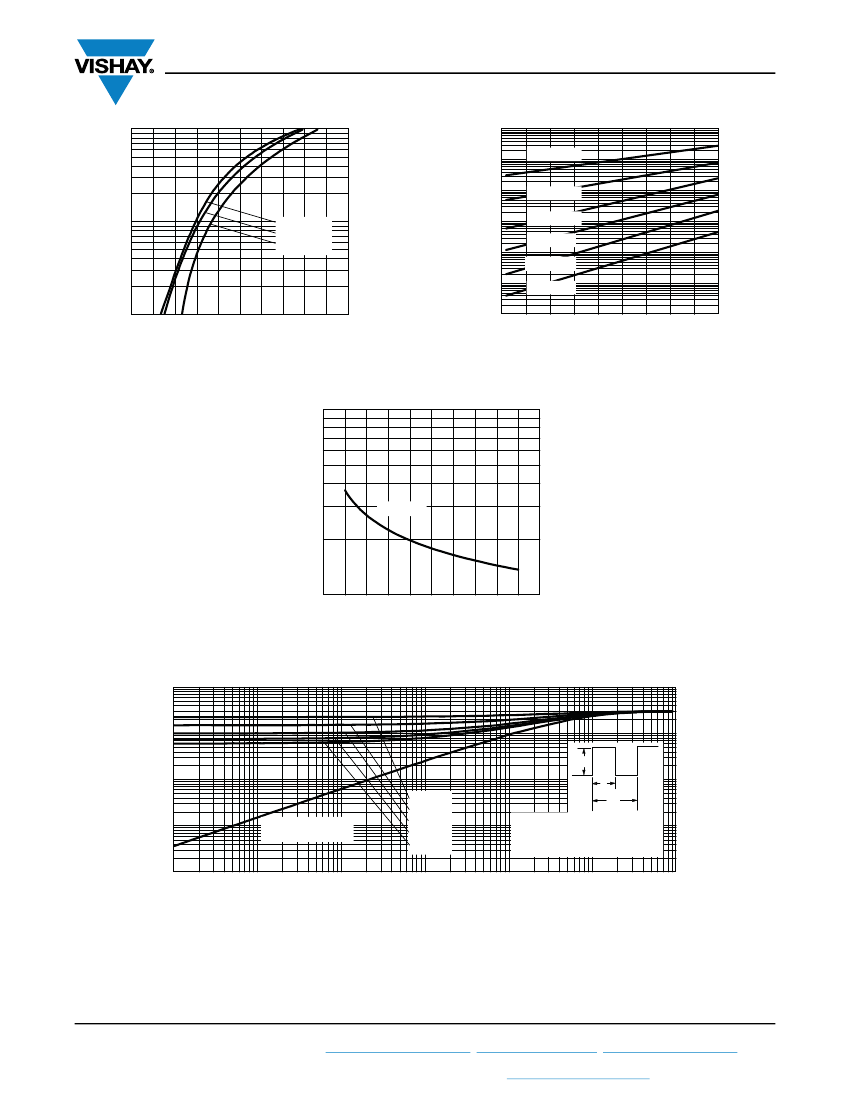

VS-MBRB745TRL-M3 Related Products

VS-MBRB745TRL-M3 VS-MBRB735TRR-M3 VS-MBRB735TRL-M3 VS-MBRB745TRR-M3
Description DIODE SCHOTTKY 45V 7.5A TO263AB DIODE SCHOTTKY 35V 7.5A TO263AB DIODE SCHOTTKY 35V 7.5A TO263AB DIODE SCHOTTKY 45V 7.5A TO263AB
Is it Rohs certified? conform to conform to conform to conform to
Maker Vishay Vishay Vishay Vishay
package instruction D2PAK-3/2 D2PAK-3/2 D2PAK-3/2 D2PAK-3/2
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Factory Lead Time 26 weeks 26 weeks 26 weeks 26 weeks
Other features FREE WHEELING DIODE FREE WHEELING DIODE FREE WHEELING DIODE FREE WHEELING DIODE
application GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell connection CATHODE CATHODE CATHODE CATHODE
Configuration SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.84 V 0.84 V 0.84 V 0.84 V
JEDEC-95 code TO-263AB TO-263AB TO-263AB TO-263AB
JESD-30 code R-PSSO-G2 R-PSSO-G2 R-PSSO-G2 R-PSSO-G2
JESD-609 code e3 e3 e3 e3
Humidity sensitivity level 1 1 1 1
Maximum non-repetitive peak forward current 150 A 150 A 150 A 150 A
Number of components 1 1 1 1
Phase 1 1 1 1
Number of terminals 2 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C
Maximum output current 7.5 A 7.5 A 7.5 A 7.5 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 245 245 245 245
Maximum repetitive peak reverse voltage 45 V 35 V 35 V 45 V
Maximum reverse current 100 µA 100 µA 100 µA 100 µA
surface mount YES YES YES YES
technology SCHOTTKY SCHOTTKY SCHOTTKY SCHOTTKY
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form GULL WING GULL WING GULL WING GULL WING
Terminal location SINGLE SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature 30 30 30 30
