8830-0-15-15-22-14-10-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8830-0-15-15-22-14-10-0

Preview

8830-0-15-15-22-14-10-0: DescriptionCONN PIN RCPT; CategoryThe connector terminals; File Size655KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

8830-0-15-15-22-14-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8830-0-15-15-22-14-10-0	-	-	View	Buy Now

8830-0-15-15-22-14-10-0 Overview

CONN PIN RCPT

8830-0-15-15-22-14-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8830
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

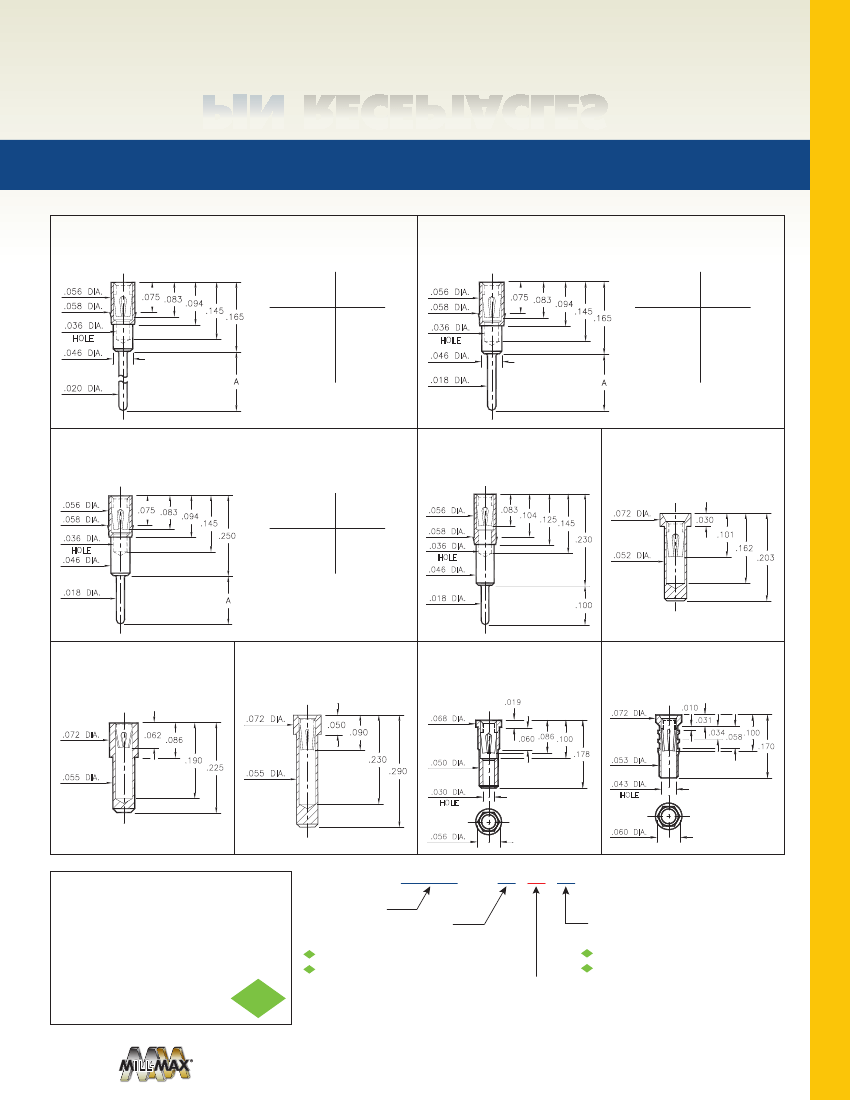

RECEPTACLES

FOR .015” - .025” DIAMETER PINS

1802/3802/4030/8866

XXXX-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

.056 DIA.

.058 DIA.

.036 DIA.

HOLE

.046 DIA.

A

.075 .083

1803/1805/1808/3805

XXXX-0-15-XX-XX-XX-04-0

Press-fit in .057 mounting hole

.094

Basic Part

Number

.145

.165

Length

A

.056 DIA.

.058 DIA.

.036 DIA.

HOLE

.046 DIA.

.018 DIA.

.075 .083

.094

Basic Part

Number

.145

.165

Length

A

1802-0

3802-0

8866-0

4030-0

.125

.165

.775

.815

1808-0

1803-0

1805-0

3805-0

.100

.145

.213

.393

.020 DIA.

A

1804/1806

.056 DIA.

.058 DIA.

.036 DIA.

HOLE

.046 DIA.

180X-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

1807

Basic Part

Number

.250

1807-0-15-XX-43-XX-04-0

Press-fit in .057 mounting hole

4728

.072 DIA.

4728-15-XX-30-XX-10-0

Solder mount in .054 min. mounting hole

.075 .083

.094

.145

Length

A

.056 DIA.

.058 DIA.

.036 DIA.

HOLE

.046 DIA.

.083

.104

.125

.145

.230

.030

.101

.162

.203

1804-0

1806-0

.080

.115

.052 DIA.

.018 DIA.

A

.018 DIA.

.100

8830

8830-15-XX-22-XX-10-0

Solder mount in .057 min. mounting hole

8363

.072 DIA.

8363-0-15-XX-35-XX-10-0

Solder mount in .057 min. mounting hole

4622

.068 DIA.

4622-0-15-XX-30-XX-10-0

Hex press-fit in .053 plated through-hole

.019

6252

.072 DIA.

6252-0-15-XX-32-XX-10-0

Hex press-fit in .057 plated through-hole

.010

.031

.034

.178

.050

.072 DIA.

.062

.086

.190

.225

.090

.230

.060 .086 .100

.050 DIA.

.058

.100

.170

.053 DIA.

.043 DIA.

HOLE

.055 DIA.

.290

.030 DIA.

HOLE

.056 DIA.

.060 DIA.

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths: ± .005

Diameters: ± .002

Angles:

±2°

ORDER CODE: XXXX - X - 15 - XX -

XX

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200

μ”

TIN/LEAD OVER NICKEL

80

200

μ”

TIN OVER NICKEL (RoHS)

15

10

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

02

100

μ”

TIN/LEAD OVER NICKEL

84

100

μ”

TIN OVER NICKEL (RoHS)

27

30

μ”

GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#22, #30, #32 or #43

CONTACT (DATA ON PAGES 252, 253 & 254)

(For alternate contact choices, see groups B and C on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 169 | PIN RECEPTACLES
