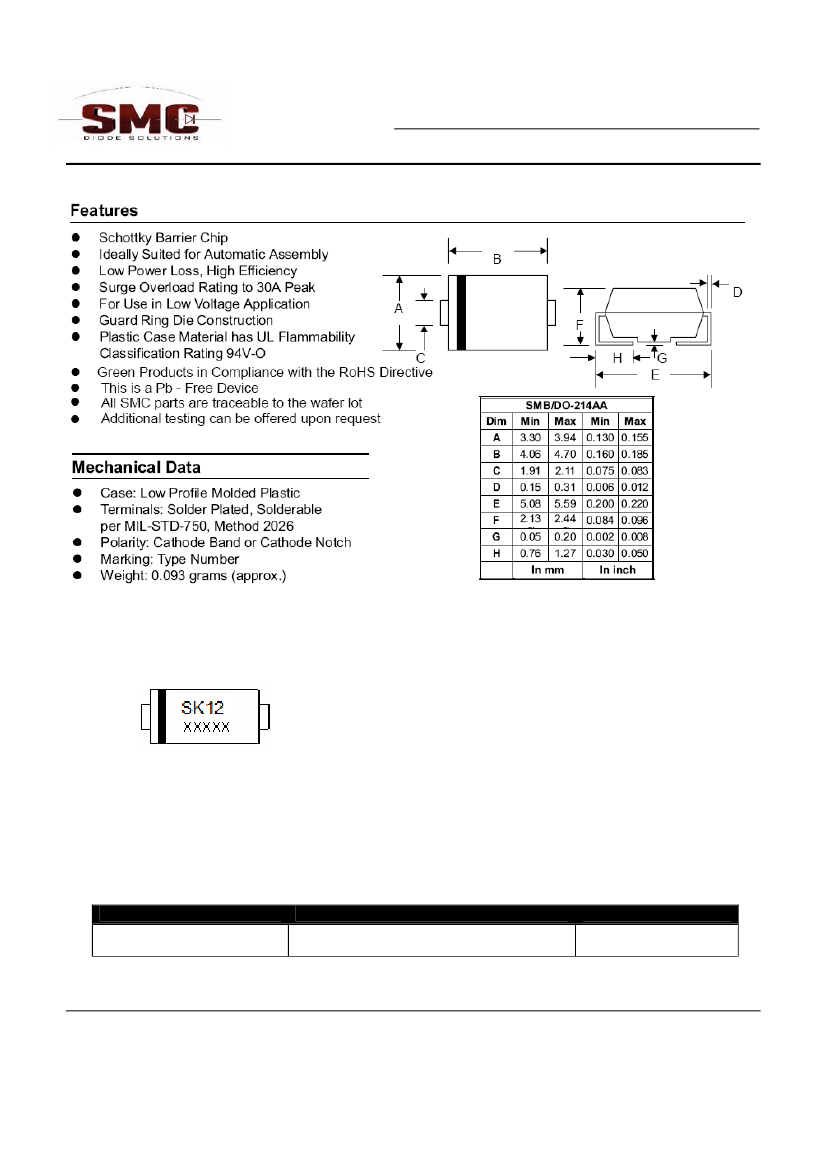

SK12-SK110
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Technical Data
Data Sheet N0930, Rev. A
Green products
Marking Diagram:
Where XXXXX is YYWWL
SK12
YY
WW
L
Cautions：
Molding resin
Epoxy resin UL:94V-0
= Part Name
= Year
= Week
= Lot Number
Ordering Information:
Device
SK12-SK110
Package
SMB
(Pb-Free)
Shipping
3000pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
•
China - Germany - Korea - Singapore - United States
•
•
http://www.smc-diodes.com - sales@ smc-diodes.com
•
SK12-SK110
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Technical Data
Data Sheet N0930, Rev. A
Green products
Maximum Ratings and Electrical characteristics
@T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Maximum RMS voltage
Average Rectified Output Current @T
L
= 75°C
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on
rated load (JEDEC Method)
Forward Voltage
@ I
O
= 1.0 A
Symbol
SK12 SK13 SK14 SK15 SK16
V
RRM
V
RWM
V
R
V
RMS
I
O
I
FSM
V
F
I
RM
R
θJA
T
J
T
STG
0.55
20
14
30
21
40
28
50
35
1.0
30
0.70
0.5
20
95
-55 to +125
-55 to +150
0.85
60
42
SK18
80
56
SK19 SK110
Unit
90
64
100
71
V
V
A
A
V
mA
K/W
°C
°C
Peak Reverse Current
@T
A
= 25°C
At Rated DC Blocking Voltage @T
A
= 100°C
Typical Thermal Resistance Junction
to Ambient (Note 1)
Operating Temperature Range
Storage Temperature Range
Note: 1. mounted on P.C. Board with 0.5mm
2
copper pad areas.
•
China - Germany - Korea - Singapore - United States
•
•
http://www.smc-diodes.com - sales@ smc-diodes.com
•
SK12-SK110
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Technical Data
Data Sheet N0930, Rev. A
Green products
DISCLAIMER:
1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product
characteristics. Before ordering, purchasers are advised to contact the SMC - Sangdest Microelectronics (Nanjing) Co., Ltd sales
department for the latest version of the datasheet(s).
2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,
medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by
means of users’ fail-safe precautions or other arrangement .
3- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any damages that may result from an accident or
any other cause during operation of the user’s units according to the datasheet(s). SMC - Sangdest Microelectronics (Nanjing) Co., Ltd
assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information,
products or circuits described in the datasheets.
4- In no event shall SMC - Sangdest Microelectronics (Nanjing) Co., Ltd be liable for any failure in a semiconductor device or any
secondary damage resulting from use at a value exceeding the absolute maximum rating.
5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC - Sangdest Microelectronics
(Nanjing) Co., Ltd.
6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC
- Sangdest Microelectronics (Nanjing) Co., Ltd.
7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will
hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third
party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and
regulations..
•
