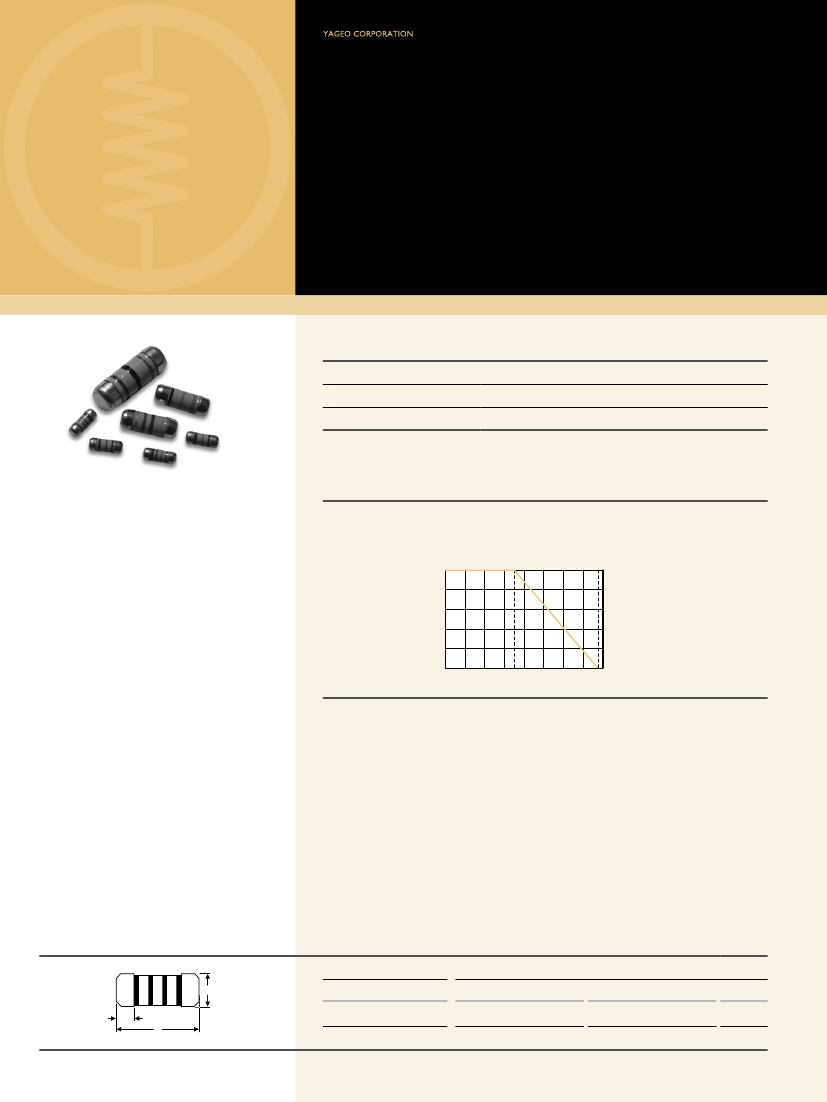

Through-hole resisTors
Melf Metal Film Resistors
High Power Type
Ultra Miniature Style [ MMP Series ]
FeATures
Power Rating
Resistance Tolerance
T.C.R.
1W, 2W
±1%, ±2%, ±5%
±50ppm/°C, ±100ppm/°C
DerATiNg CurVe
iNTroDuCTioN
The MMP Series Melf Metal Film High Power
Resistors are manufactured using a vacuum
sputtering system to deposit multiple layers of
mixed metal alloys and passivative materials
onto a carefully treated high grade ceramic
substrate. SMD enabled structure and high
power in small packages. The resistors are
coated with layers of lacquer.
For resistors operated in ambient temperatures above 70°C, power rating must be derated
in accordance with the curve below.
Rated Load (%)
70
100
80
60
40
20
20
40
60
80
100 120 140 160
155 °C
Ambient Temperature (°C)
DiMeNsioNs
sTYle
D
C
L
Unit: mm
DiMeNsioN
l
5.9±0.2
8.5±0.2
D
2.2±0.1
3.2±0.2
C Min.
0.5
0.5
ultra Miniature
MMP100
MMP200
25
Note:
eleCTriCAl ChArACTerisTiCs
sTYle
Power Rating at 70°C
Maximum Working Voltage
Maximum Overload Voltage
Voltage Proof on Insulation
Resistance Range
Operating Temp. Range
Temperature Coefficient
MMP100
1W
350V
700V
500V
1Ω - 1MΩ & 0Ω for E24 & E96 series value
-55°C to +155°C
±50ppm/°C, ±100ppm/°C
MMP200
2W
Note: Special value is available on request
eNViroNMeNTAl ChArACTerisTiCs
PerForMANCe TesT
Short Time Overload
Voltage Proof on Insulation
Temperature Coefficient
Insulation Resistance
Solderability
Solvent Resistance of Marking
Periodic-pulse Overload
Damp Heat Steady State
Endurance at 70°C
Temperature Cycling
Resistance to Soldering Heat
TesT MeThoD
IEC 60115-1 4.13
IEC 60115-1 4.7
IEC 60115-1 4.8
IEC 60115-1 4.6
IEC 60115-1 4.17
IEC 60115-1 4.30
IEC 60115-1 4.39
IEC 60115-1 4.24
IEC 60115-1 4.25
IEC 60115-1 4.19
IEC 60115-1 4.18
2.5 times RCWV for 5 Sec.
in V-block for 60 Sec., test voltage by type
-55°C to +155°C
in V-block for 60 Sec.
235±5°C for 3±0.5 Sec.
IPA for 5±0.5 Min. with ultrasonic
4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off)
40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV
70±2°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off)
-55°C
Room Temp.
+155°C
Room Temp. (5 cycles)
260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body
APPrAise
±0.5%+0.05Ω
By type
By type
>10,000MΩ
95% Min. coverage
No deterioration of
coatings and markings
±1.0%+0.05Ω
±2.0%+0.1Ω
±2.0%+0.1Ω
±0.75%+0.05Ω
±0.5%+0.05Ω
Revision: 201304
Note: RCWV(Rated Continuous Working Voltage) = Power Rating x Resistance Value or Max. working voltage listed above, whichever less.
88
exPlANATioNs oF orDeriNg CoDe
MFr
Code 1 - 3
series Name
See Index
-12
Code 4 - 6
Power rating
-05 = ød0.5mm
-06 = ød0.6mm
-07 = ød0.7mm
-08 = ød0.8mm
-10 = ød1.0mm
-14 = ød1.4mm
-12 = 1/6W
-25 = 1/4W
25S = 1/4WS
-50 = 1/2W
50S = 1/2WS
100 = 1W
1WS = 1WS
200 = 2W
2WS = 2WS
204 = 0.4W
207 = 0.6W
300 = 3W
3WS = 3WS
3WM = 3WM
400 = 4W
500 = 5W
5WS = 5WS
5SS = 5WSS
700 = 7W
7WS = 7WS
10A = 10W
20A = 20W
30A = 30W
40A = 40W
50A = 50W
10S = 10WS
15A = 15W
25A = 25W
10B = 100W
25B = 250W
F
Code 7
Tolerance
P = ±0.02 %
A = ±0.05 %
B = ±0.1 %
C = ±0.25%
D = ±0.5 %
F = ±1 %
G = ±2 %
J = ±5 %
K = ±10 %
- = Base on Spec.
T
Code 8
Packing style
T = Tape/Box
R = Tape/Reel
B = Bulk
F
Code 9
Temperature Coef-
ficient of Resistance
- = Base on Spec.
A = ±5 ppm/°C
B = ±10 ppm/°C
C = ±15 ppm/°C
S = ± 20ppm/°C
D = ±25 ppm/°C
E = ±50 ppm/°C
F = ±100 ppm/°C
G = ±200 ppm/°C
H = ±250 ppm/°C
I = ±300 ppm/°C
J = ±350 ppm/°C
52-
Code 10 - 12
Forming Type
26- = 26mm
52- = 52.4mm
73- = 73mm
81- = 81mm
91- = 91mm
F = F Type
FK = FK Type
FKK = FKK Type
FFK = F-form Kink
M = M-Type Forming
MB = M-form W/flat
MT = MT Type Forming
MR = MR Type
AV = AVIsert
PN = PANAsert
100r
Code 13 - 17
resistance Value
0R1 = 0.1
100R = 100
10K = 10,000
10M = 10,000,000
exCePTioN:
• Cement series:
• JPW series:
<Code 8>: Special packing style code
B: Bulk with wirewound or metal oxide sub-assembly for resistance value
W: Bulk with ceramic based wirewound sub-assembly for resistance value
M: Bulk with metal oxide sub-assembly for resistance value
F: Bulk with Fiberglass based wirewound sub-assembly for resistance value
<Code 10-12>: Without forming code
Example:
<Code 13-17>: without resistance value code
Example:
JPW-06-T-52-
SQP500JB-10R
