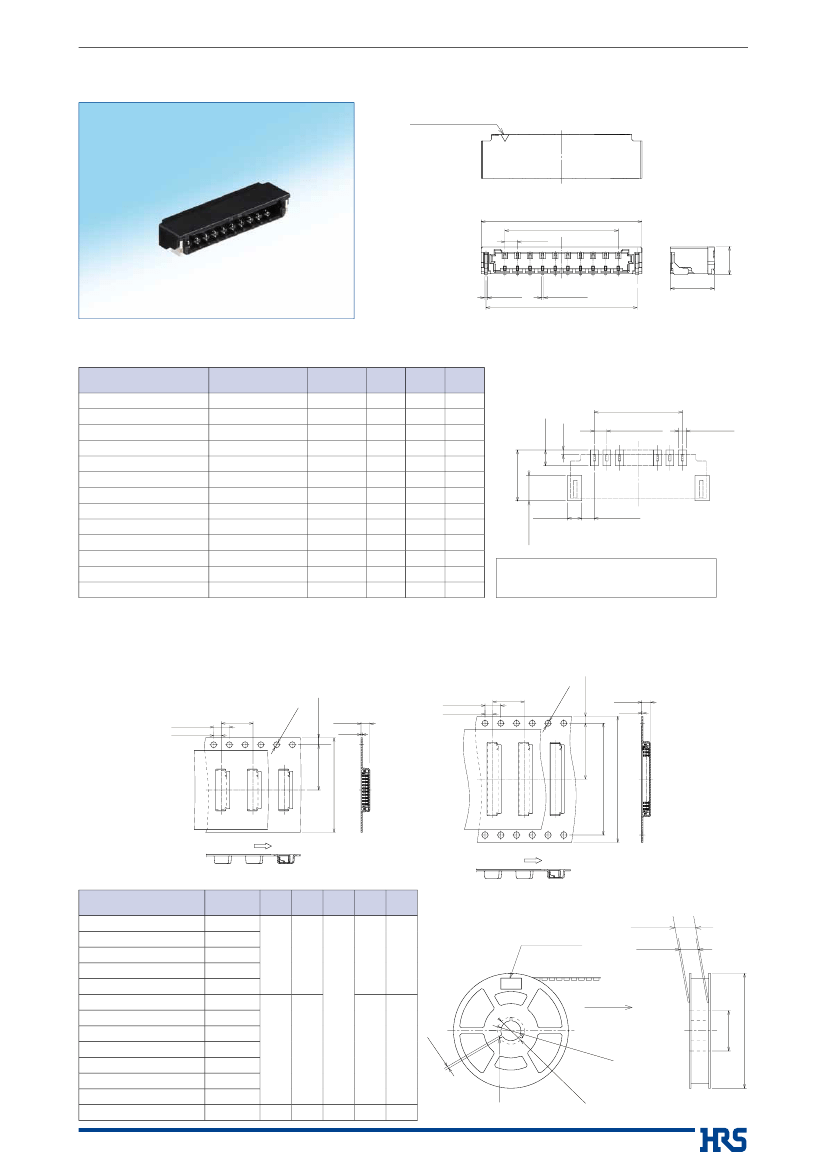

DF52-17S-0.8H(21)

Description
CONN RCPT 0.8MM 17POS R/A PCB
CategoryThe connector
File Size247KB,6 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric View All

DF52-17S-0.8H(21) Overview

CONN RCPT 0.8MM 17POS R/A PCB

DF52-17S-0.8H(21) Parametric

Parameter NameAttribute value
Connector typejack
Contact typeNo male or female type
styleBoard to cable/wire
Number of pins17
Number of pins loadedall
Spacing - Mating0.031"(0.80mm)
Number of rows1
Line spacing - patching-
Installation typeSurface mount, right angle
Terminationwelding
Fastening typepin lock
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating-
Insulation colorblack
Insulation height0.069"(1.75mm)
Contact length - terminal-
Operating temperature-40°C ~ 85°C
Material flammability ratingUL94 V-0
Contact Surface Preparation - Columntin
Joint stack height-
Intrusion protection-
characteristicMeets glow wire specifications, solder retained
Rated current1.5A
Rated voltage100V
application-
Insulation MaterialsPolyamide (PA), nylon, glass fiber reinforced
Contact shape-
Contact materialcopper alloy
Contact Surface Treatment Thickness - Column-
0.8mm Pitch, Compact and Robust Wire-to-Board Connectors
DF52 Series
◆Small
and robust structure
Board side
Thick wall parts
Thick wall parts

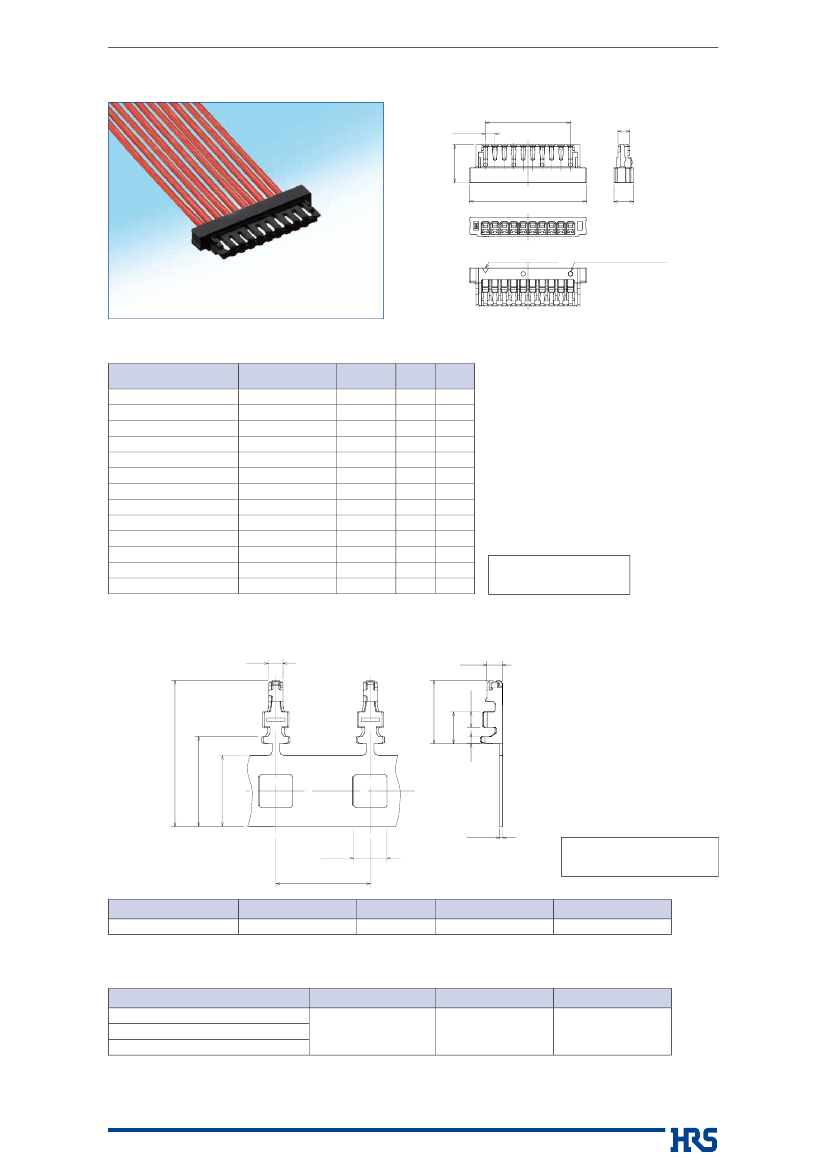

Cable side
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Housing walls are thick while the connector remains small.

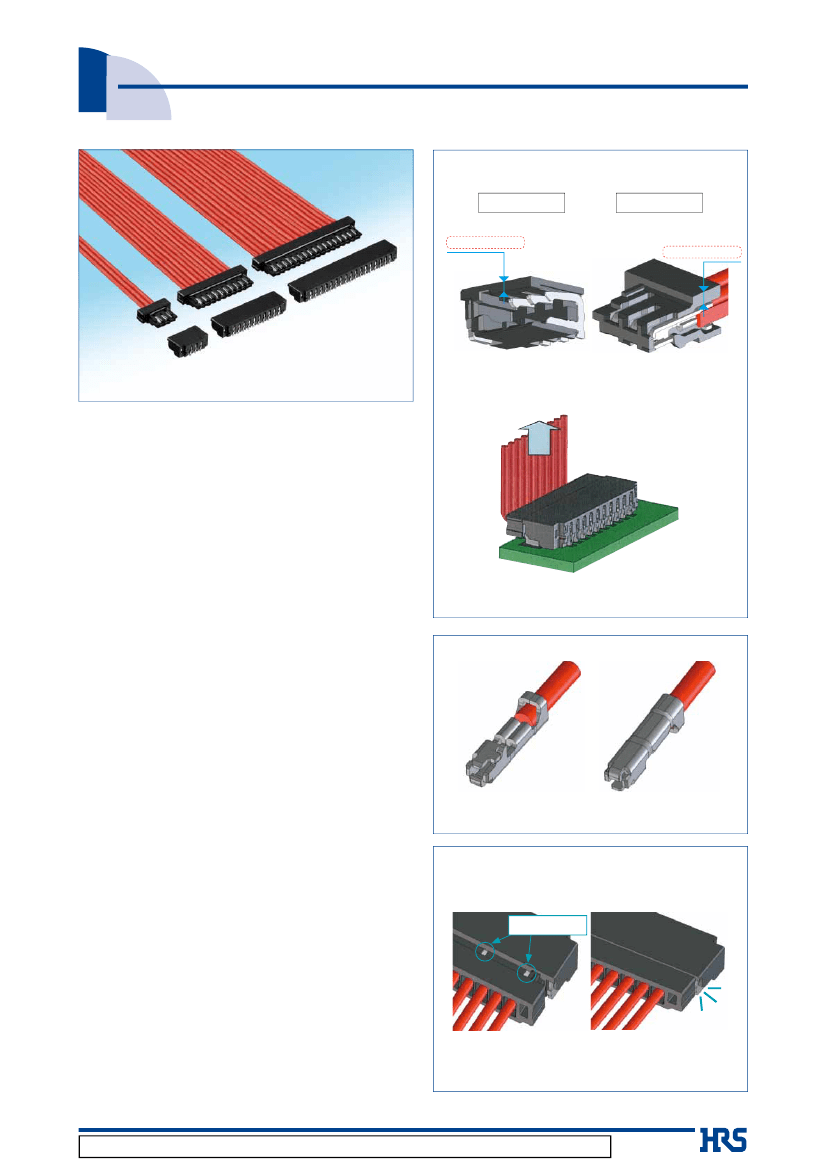

■Features
1. Small-sized connector
0.8mm Pitch, 1.75mm Height, 4.1mm Depth. Suitable for
small-sized applications.
2. Small but robust structure
The housing is designed with thick walls while remaining
small. This produces a strong, robust connector that
resists damage.
3. Suitable for high current applications.
The maximum current of 2.5A (using 2-pos 28 AWG wire)
is achieved by using highly conductive material and
appropriate contact force.
Robust structure prevents damage while routing wiring.
Fig.1
4. BOX shaped contact prevents deformation.
The BOX shaped crimp contact prevents deformation
during assembly and contributes to the overall stability
and robustness.
◆Box
shaped contact structure
5. Visual check insures fully mated Plug and Receptacle
The housing is designed with an open side that allows for
visual inspection to insure the connectors are fully mated
preventing accidental disconnect.
6. Glow Wire compliance (Compliant with IEC 60695-2-11)
7. Halogen-free
Chlorine and bromine levels are below standard values of
IEC 61249-2-21.
Br : less than 900ppm, Cl : less than 900ppm,
Br + Cl : less than 1,500ppm.
The Box shaped structure of the crimp contact prevents deformation.
Fig.2
◆Allows
for visual inspection of the mating process.
Incomplete mating
Exposed contact
Mating complete
The contact is exposed in the
half-mated state.
Mating is complete when the
contact is no longer visible.
The mated condition can be visually checked.
Fig.3
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2017.2②
1
