Bergquist
Standard Configurations
®
POWER LED IMS
®
SUBSTRATES
Thermal Clad
Bergquist shortens the design cycle and speeds up your time to market.
Thermal Clad substrates offer more flexibility in selecting LED components
Bergquist offers a family of standard thermally conductive insulated
Now you can get a jump-start on your design with one of these star
metal substrate (IMS) circuit boards specifically for LED applications
or square substrates; available in single, strip or array configurations.
which replace conventional FR-4 PCBs. Better thermal management
Choose from 10 different LED footprints to give you the freedom
allows more forward current to be applied to the LED, while still
to select the LED component’s color, brightness and power that best
maintaining desired die temperatures, which means more light and
fits your needs. Optimize the prototyping process with the lowest
possibly reducing the number of LEDs required to achieve the desired
possible operating temperatures and the brightest light output for
light output. With proper thermal management, Power LED lifetimes
your next Power LED application.The most popular LED profiles
can be extended considerably.
on the world’s most reliable IMS – matched for your design ease.
®

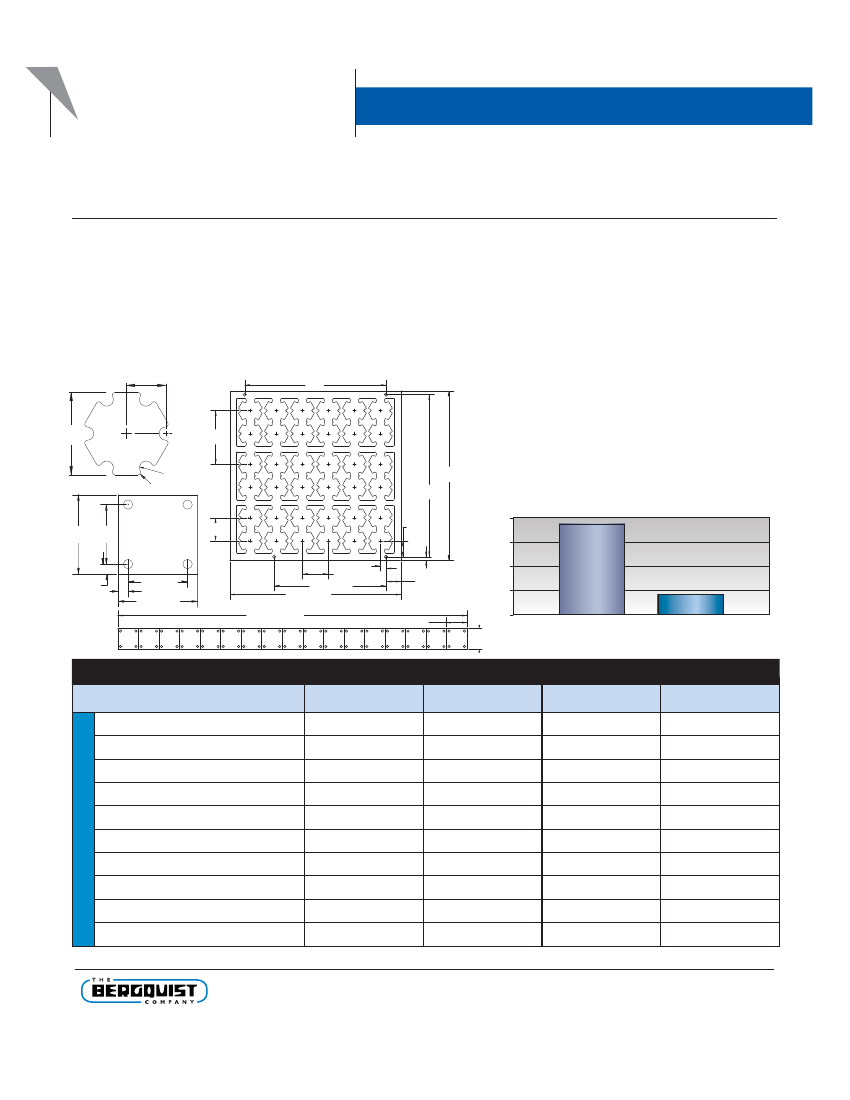

Standard Bergquist Thermal Clad LED Configurations
Bergquist Thermal Clad
®
IMS Specs
C/L
9.5mm
(.374")
121.9 mm
(4.80")
19.9mm
(.784")
C/L
Base Metal
1.57mm (0.062") Aluminum 5052
Thermally Conductive
.076mm (3 mil ) MP
Dielectric
Copper Circuit Foil
Surface Finish
35 m (1oz.) copper circuit foil
White solder mask, Pb-free HASL solder pads
(RoHS compliant)
( A) Star
R 1.6mm
(.063") 6x
R .8mm (.032")
46.2mm
(1.819")
146.1mm
(5.75")
139.9mm
(5.508")
13.8mm
(.543")
25.4mm 19.1mm
(1.00") (.75")
(C) Square
19.9mm
(.784")
20.0
15.0
Thermal Impedance of FR4
to MP
FR- 4 compared
compared to MP
3.2mm
(.125")
3.2mm (.125")
25.4mm (1.00")
19.1mm (.75")
4.9mm (.192")
22.4mm (.883")
96.5mm (3.80")
147.3mm (5.80")
3.1mm (.121")
12.7mm (.50")
o
C/W
T-rise based on 32 sq/mm slug
5.0
0.0
10.0
(B) Star Array
25.4mm (1.00")
431.8mm (17.00")
( D) Square
Strip
25.4mm
(1.00")
Thermal Conductivity
FR- 4
Thermal Conductivity
MP
0.3 W/m-K
1.3 W/m-K

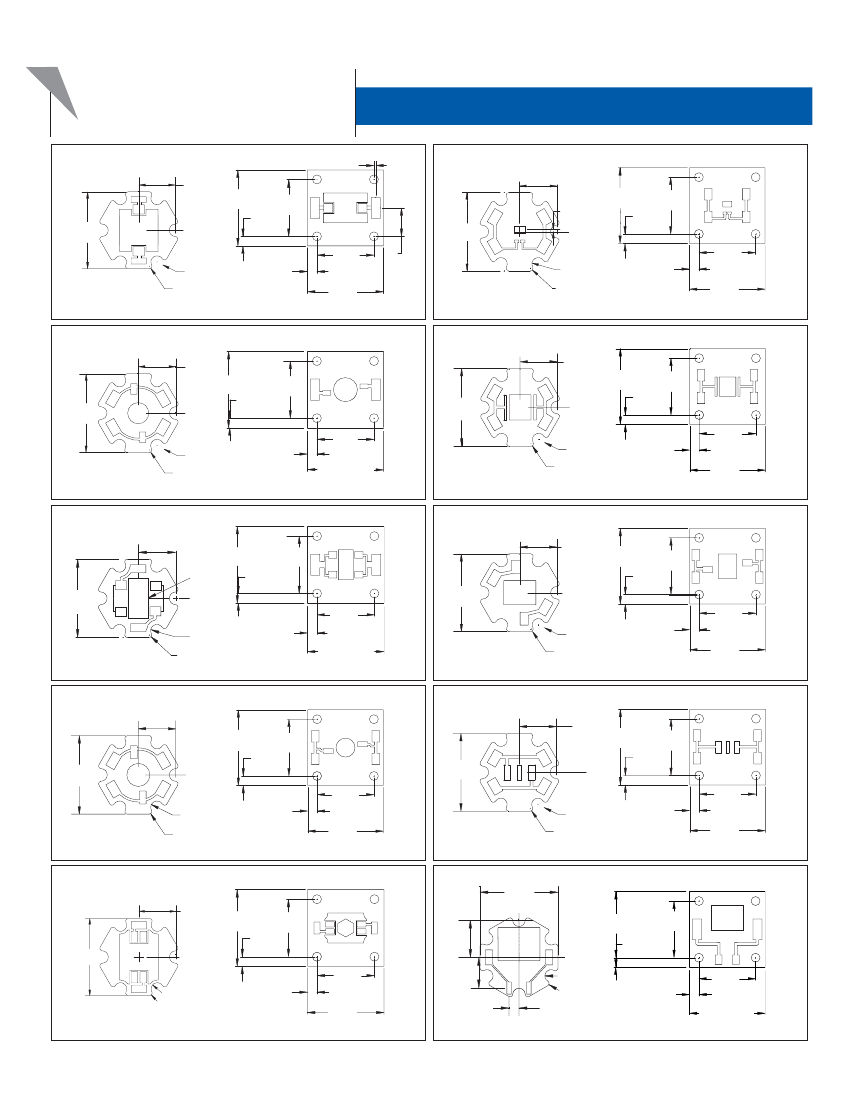

Bergquist Thermal Clad
®
- Standard Power LED IMS Selection Guide
LED Footprint Type
1
2
3
4
5
6
7
8
9
10
Osram Golden Dragon
®
Lite-On
®
LOPL
Lumex SML-LX
Lumileds
™
Luxeon
®
I, III and V
Lumileds
™
Luxeon
®
K2
Lumileds
™
Luxeon
®
Rebel
Cree
®
XLamp
®
Seoul Semiconductor Z-Power
Nichia Power LED 3.5 x 3.5
Avago Moonstone
™
Emitter
Star Board (1- up )
( A ) Part No.
803128
803123
803124
803125
803126
803127
803122
803129
803291
803121
Star Array ( 36 - up )
( B ) Part No.
803268
803263
803264
803265
803266
803267
803262
803269
803292
803261
Square Board (1- up )
(C ) Part No.
803118
803113
803114
803115
803116
803117
8 03112
8 03119
803290
8 03111
Square Strip (17- up )
( D ) Part No.
803288
803283
803284
803285
803286
803287
803282
803289
803293
803281
These products are available through your local distributor, please call or check our website for contact information.
www.bergquistcompany.com
The Bergquist Company
North American Headquarters
18930 West 78th Street
Chanhassen, MN 55317
Phone: 800-347-4572
Fax: 952-835-4156
The Bergquist Company
European Headquarters
Bramenberg 9a, 3755 BT Eemnes
Netherlands
Phone: 31-35-5380684
Fax: 31-35-5380295
All statements, technical information and recommendations herein are based on tests we believe to be reliable, and
THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OF MARKETABILITY AND FITNESS FOR PURPOSE. Sellers’ and manufacturers’ only obligation shall be to
replace such quantity of the product proved to be defective. Before using, user shall determine the suitability of the product
The Bergquist Company
for its intended use, and the user assumes all risks and liability whatsoever in connection therewith. NEITHER SELLER NOR
Asian Headquarters
MANUFACTURER SHALL BE LIABLE EITHER IN TORT OR IN CONTRACT FOR ANY LOSS OR DAMAGE, DIRECT,
INCIDENTAL, OR CONSEQUENTIAL, INCLUDING LOSS OF PROFITS OR REVENUE ARISING OUT OF THE USE
Room 15, 8/F
Wah Wai Industrial Centre No.38-40 OR THE INABILITY TO USE A PRODUCT. No statement, purchase order or recommendations by seller or purchaser not
contained herein shall have any force or effect unless in an agreement signed by the officers of the seller and manufacturer.
Au Pui Wan Street,
Fotan, Shatin, N.T. , Hong Kong
WHP_TClad_LED_715 08_v8
Ph: 852-2690-9296
Fax: 852-2690-2344
