Printed-circuit board connector - DMCV 0,5/15-G1-2,54 P20THR
R56 - 1845001
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

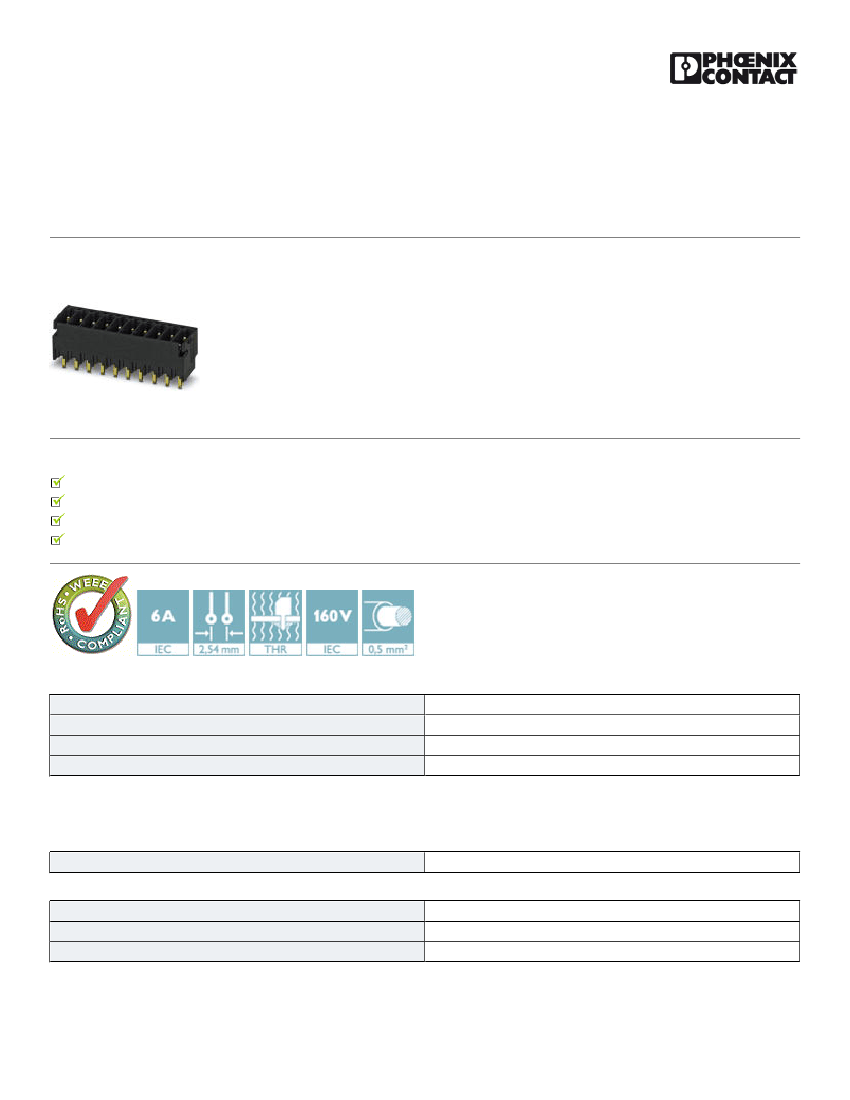

Header, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 15, Pitch: 2.54 mm, Color: black,
Contact surface: Gold, Mounting: THR soldering, Sample values available under SAMPLE DMC...
The figure shows a 10-pos. version
with 20 contacts
Why buy this product
Gold-plated contacts ensure transfer quality remains stable over the long term
Designed for integration into the SMT process
Vertical connection enables multi-row arrangement on the PCB
Small component size for applications where space is at a premium
Key Commercial Data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
1 STK
330 STK
85366990
Germany
Technical data
Environmental Product Compliance
China RoHS
No hazardous substances above threshold values
Dimensions
Length
Pitch
Dimension a
7.39 mm
2.54 mm
35.56 mm
08/29/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1845001
Printed-circuit board connector - DMCV 0,5/15-G1-2,54 P20THR
R56 - 1845001
Technical data
Dimensions
Width
Height
Length of the solder pin
Pin dimensions
Pin spacing
Hole diameter
38.6 mm
7.1 mm
2 mm
0,64 x 0,64 mm
2.54 mm
1.2 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Insulating material
Flammability rating according to UL 94
Color
Number of positions
DMCV 0,5/..-G1-THR
IIIa
2.5 kV
2.5 kV
2.5 kV
32 V
160 V
160 V
EN-VDE
6A
LCP
V0
black
15
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Drawings
08/29/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1845001
Printed-circuit board connector - DMCV 0,5/15-G1-2,54 P20THR
R56 - 1845001

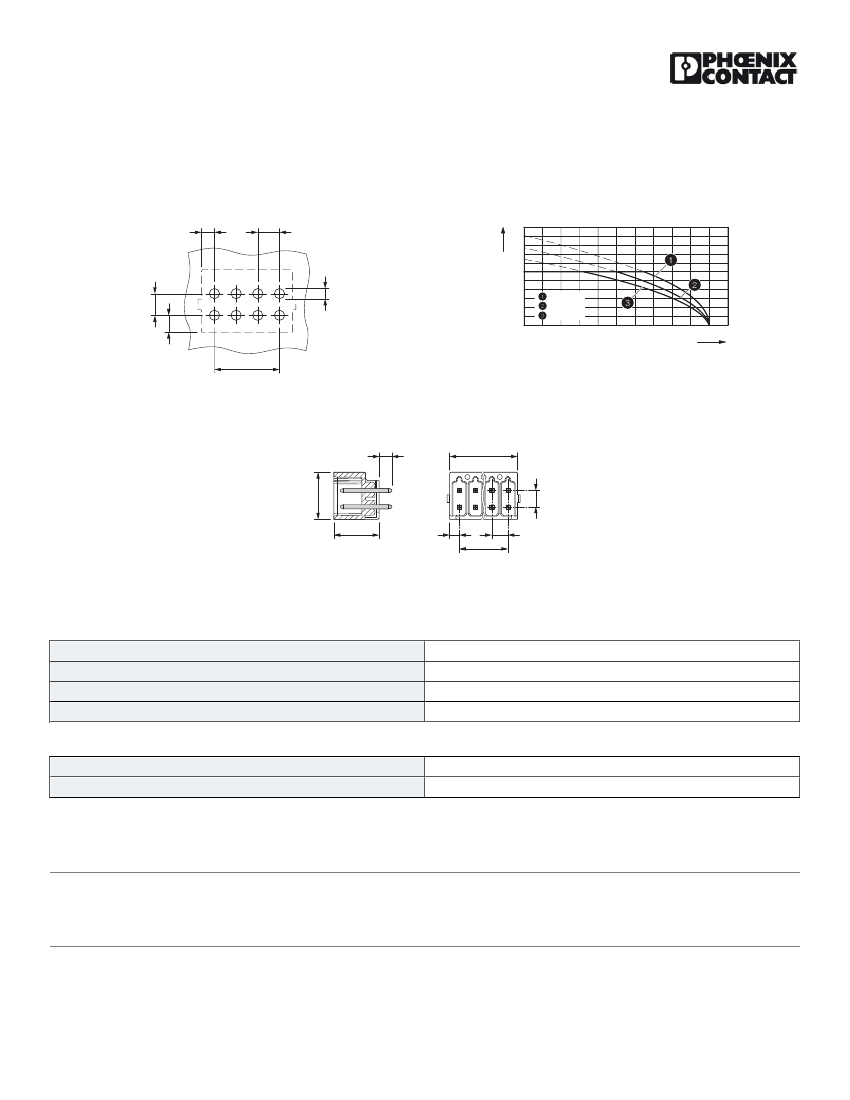

Drilling diagram
Current strength [A]
1,52
2,54
10
8
6
4
2
0
0
10
20
30
40
50
60
70
80
90 100 110
Diagram
Ø1,2
= 2-pos.
= 5-pos.
= 16-pos.
2,54
1,97
Ambient temperature [°C]
a
Type: DFMC 0,5/...-ST-2,54 with DMCV 0,5/...-G1-2,54 P20THR R...
Dimensional drawing
2
a+3,04
7,39
7,1
1,52
a
2,54
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27260701
27260704
27440402
27440402
ETIM
ETIM 4.0
ETIM 5.0
EC002637
EC002637
Approvals
Approvals
Approvals
cULus Recognized / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC
2,54
08/29/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1845001
Printed-circuit board connector - DMCV 0,5/15-G1-2,54 P20THR
R56 - 1845001
Approvals
Ex Approvals
Approval details
cULus Recognized http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
Nominal current IN
Nominal voltage UN
B
6A
150 V
C
6A
50 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
http://www.vde.de 40042389
6A
160 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ DE1-55740
6A
160 V
EAC B.01742
Accessories
Accessories
Labeled terminal marker
Marker card - SK 2,54/2,8:FORTL.ZAHLEN - 0804853
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type:
Adhesive, for terminal block width: 2.54 mm, Lettering field: 2.54 x 2.8 mm
08/29/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1845001
Printed-circuit board connector - DMCV 0,5/15-G1-2,54 P20THR
R56 - 1845001
Accessories

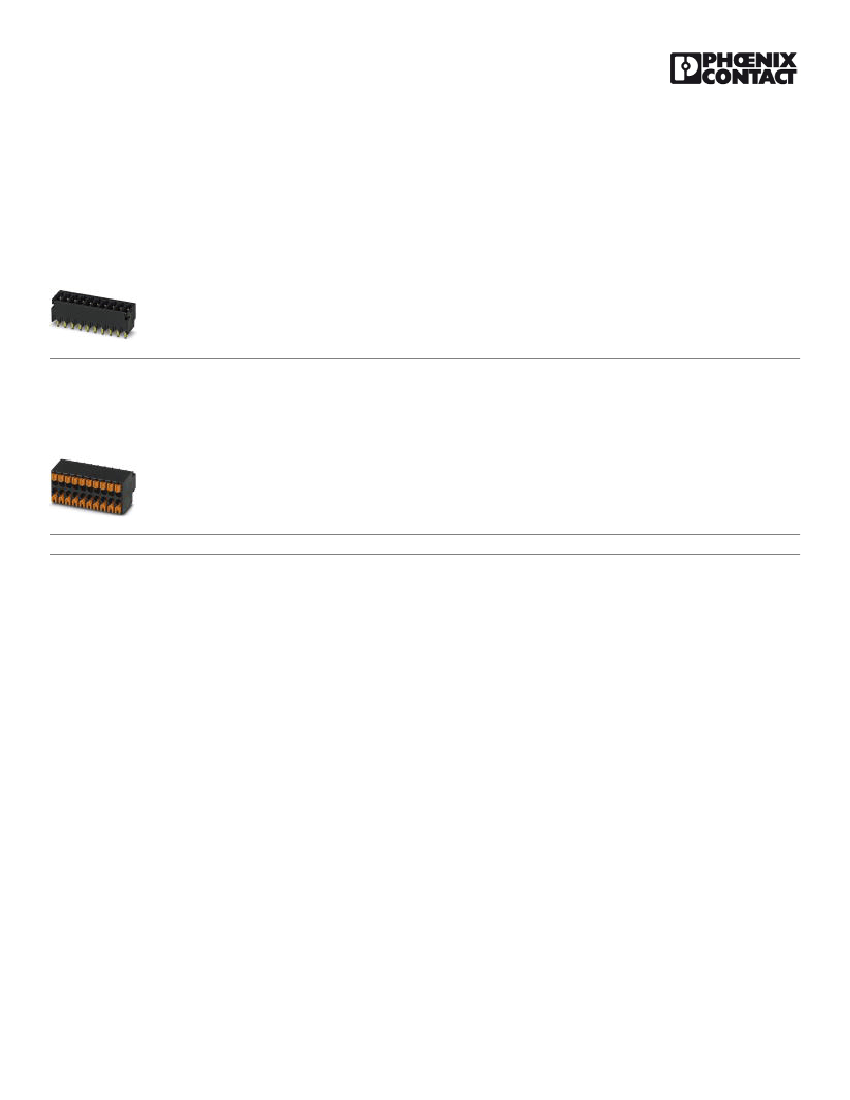

Sample set - SAMPLE DMCV 0,5/15-G1-2,54 THR - 1859770
Header, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 15, Pitch: 2.54 mm, Color: black, Contact
surface: Gold, Mounting: THR soldering
Additional products
Printed-circuit board connector - DFMC 0,5/15-ST-2,54 - 1844701
Plug, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 15 with 30 contacts, pitch: 2.54 mm,
connection method: spring connection, color: black, contact surface: gold
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
08/29/2016 Page 5 / 5
