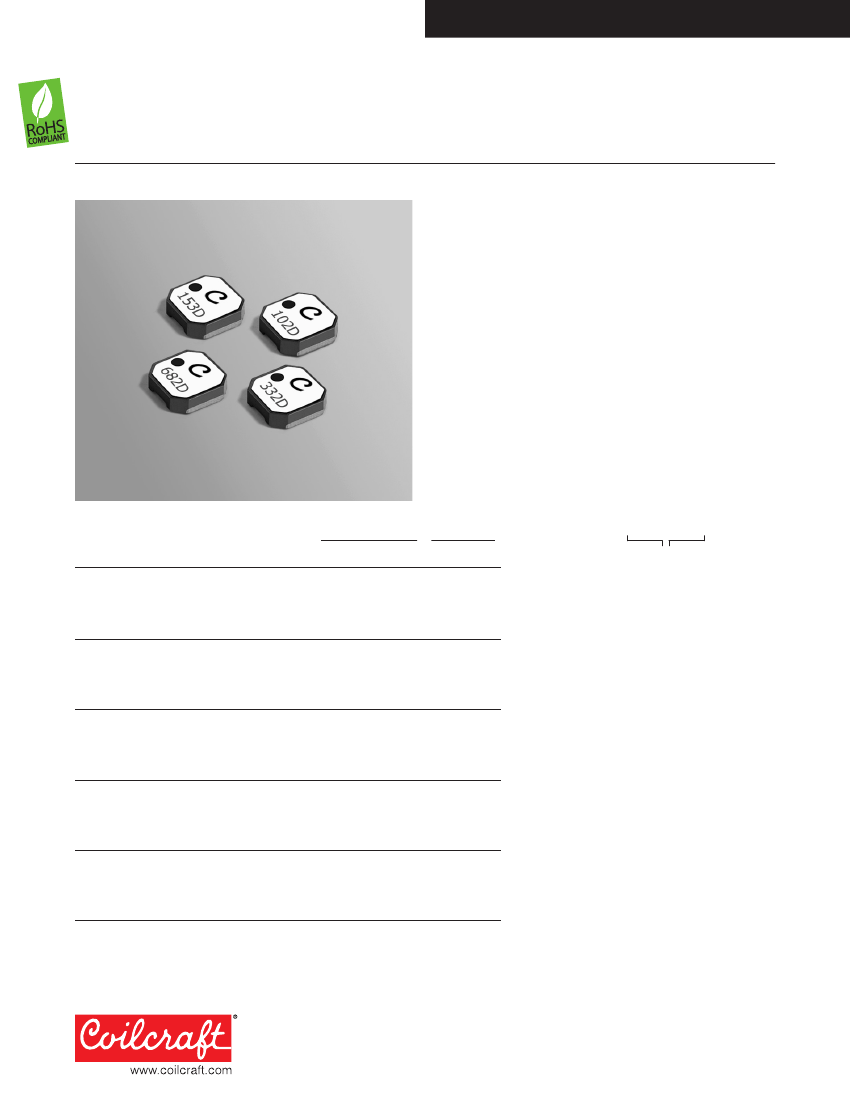

Document 433-1
Shielded Power Inductors – LPS4012
• Very low DCR; excellent current handling
• 4.0 × 4.0 mm footprint; less than 1.2 mm tall
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant silver-palladium-platinum-glass frit.
Other terminations available at additional cost.
Weight
54 – 64 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.25 mm thick, 8 mm pocket spacing, 1.32 mm pocket depth
Recommended pick and place nozzle
OD: 4 mm; ID:
≤
2 mm
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Part number
1
LPS4012-331ML_
LPS4012-681ML_
LPS4012-102NL_
LPS4012-152ML_
LPS4012-222ML_
LPS4012-332ML_
LPS4012-472ML_
LPS4012-562ML_
LPS4012-682ML_
LPS4012-103ML_
LPS4012-153ML_
LPS4012-223ML_
LPS4012-333ML_
LPS4012-473ML_
LPS4012-683ML_
LPS4012-104ML_
LPS4012-124ML_
LPS4012-154ML_
LPS4012-184ML_
LPS4012-224ML_
LPS4012-334ML_
LPS4012-474ML_
LPS4012-564ML_
LPS4012-684ML_
LPS4012-824ML_
LPS4012-105ML_
LPS4012-155ML_
LPS4012-185ML_
LPS4012-225ML_
LPS4012-335ML_
Isat
(A)
5
DCR
SRF
Inductance
2
max
3
typ
4
10% 20% 30%
(µH)
(Ohms) (MHz) drop drop drop
0.33 ±20% 0.025
0.68 ±20% 0.055
1.0 ±30% 0.060
1.5 ±20% 0.070
2.2 ±20% 0.100
3.3 ±20% 0.100
4.7 ±20% 0.175
5.6 ±20% 0.260
6.8 ±20% 0.340
10 ±20%
0.350
15 ±20%
0.550
22 ±20%
0.600
33 ±20%
0.825
47 ±20%
1.40
68 ±20%
1.70
100 ±20%
2.40
120 ±20%
3.30
150 ±20%
3.50
180 ±20%
5.00
220 ±20%
5.20
330 ±20%
7.20
470 ±20% 10.0
560 ±20% 12.5
680 ±20% 13.5
820 ±20% 20.0
1000 ±20% 21.5
1500 ±20% 30.0
1800 ±20% 35.0
2200 ±20% 42.0
3300 ±20% 65.0
375
220
180
140
115
100
70
60
55
40
30
25
22
19
15
12
11.5
10.0
8.0
7.0
7.0
4.0
3.5
3.0
3.0
3.0
2.5
2.0
1.0
0.95
5.2
3.5
2.8
2.6
2.3
1.3
1.6
1.5
1.3
0.98
0.79
0.74
0.45
0.35
0.30
0.24
0.23
0.21
0.18
0.15
0.14
0.10
0.10
0.10
0.090
0.080
0.080
0.079
0.079
0.074
5.4
3.6
2.9
2.7
2.4
1.4
1.7
1.6
1.3
1.0
0.82
0.78
0.47
0.37
0.32
0.26
0.24
0.22
0.19
0.16
0.14
0.11
0.105
0.105
0.095
0.090
0.090
0.085
0.083
0.078
5.5
3.7
3.0
2.8
2.5
1.4
1.8
1.6
1.4
1.1
0.84
0.79
0.48
0.38
0.33
0.27
0.25
0.23
0.20
0.17
0.15
0.12
0.115
0.110
0.095
0.095
0.090
0.087
0.085
0.080
Irms
(A)
6
20°C 40°C
rise rise
2.2
1.8
1.7
1.6
1.2
1.45
1.10
0.85
0.80
0.55
0.53
0.52
0.46
0.40
0.35
0.30
0.27
0.25
0.23
0.21
0.17
0.13
0.11
0.11
0.105
0.100
0.087
0.075
0.070
0.050
3.0
2.4
2.4
2.2
1.75
2.00
1.45
1.10
0.98
0.75
0.73
0.70
0.61
0.52
0.46
0.40
0.36
0.32
0.29
0.27
0.225
0.175
0.140
0.135
0.132
0.130
0.115
0.100
0.090
0.065
1. Please specify
termination
and
packaging
codes:
LPS4012-682MLC
Termination: L
= RoHS compliant silver-palladium-
platinum-glass frit.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape (1000 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready.
To have a leader and trailer added
($25 charge), use code letter C
instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory
order only, not stocked (3500 parts
per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an
Agilent/HP 4192A. Inductance at 1 MHz is the same for
parts with SRF
≥10
MHz.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 8753ES or equivalent.
5. DC current that causes the specified inductance drop
from its value without current.
6. Current that causes the specified temperature rise
from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 433-1
Revised 04/24/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

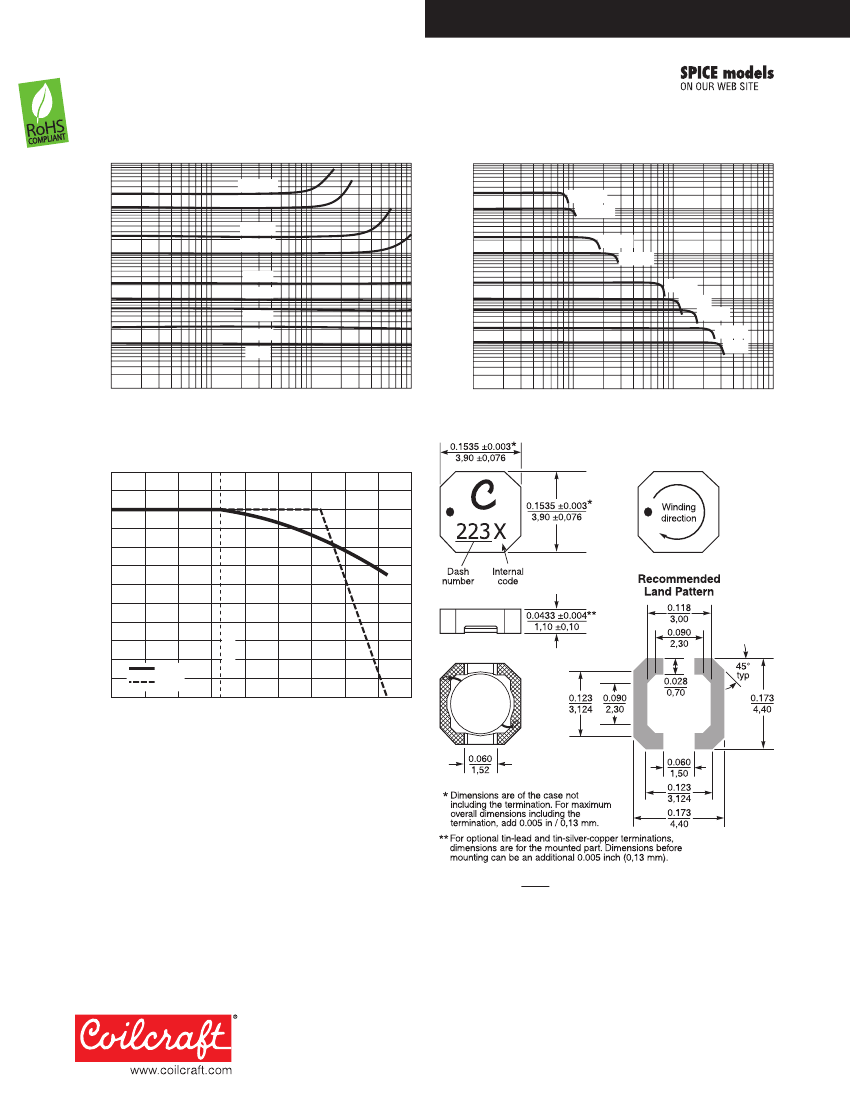

Document 433-2
Shielded SMT Power Inductors – LPS4012 Series
Typical L vs Frequency
10000
2200 µH
1000 µH
220 µH
Typical L vs Current
10000
2200 µH
1000 µH
220 µH
1000
1000
Inductance (µH)
100
100 µH
22 µH
Inductance (µH)
100
100 µH
22 µH
10
10 µH
5.6 µH
10
10 µH
5.6 µH
2.2 µH
1 µH
1
2.2 µH
1 µH
1
0.1
0.01
0.1
Frequency (MHz)
1
10
0.1
0.01
0.1
Current (A)
1
10
Current Derating
120
110
100
Percent of rated current
90
80
70
60
50
40
20
10
0
30
Isat
Irms
-40
-20
0
20
25°C
40
60
80
100
120 140
Ambient temperature (°C)
Coilcraft
Designer’s Kit C392
contains samples of 0.80 µH to 33 µH
parts (3 each) from LPS3008, LPS3010 and LPS3015.
Kit C401
con-
tains samples of 0.56 µH to 33 µH parts (3 each) from LPS4012 and
LPS4018.
Kit C402
contains samples of 220 µH to 3300 µH parts
(3 each) from all five series. For details of kit contents and to order,
contact Coilcraft or visit
http://order.coilcraft.com.
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 433-2
Revised 04/24/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
