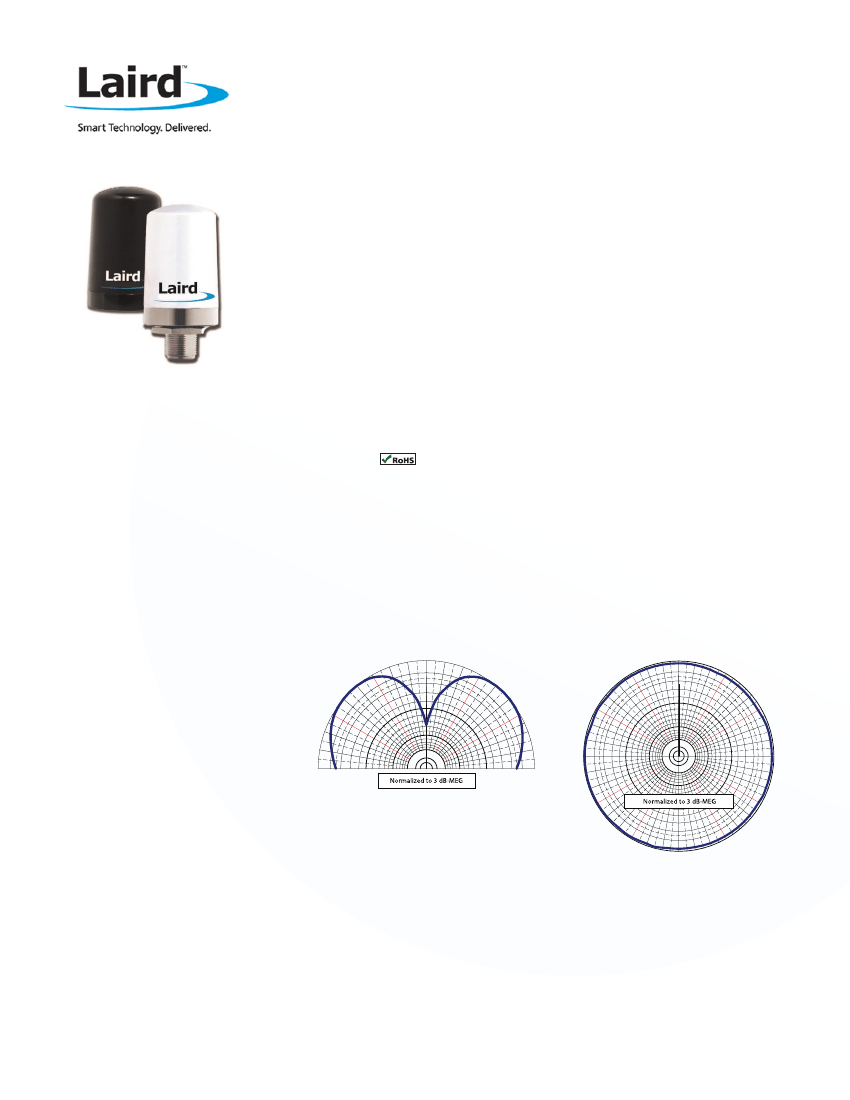

800 MHz-5.8GHz Antennas
Phantom
®
PhantoM
®
antenna is ideal For Cell, GsM, PCe, WiFi,
802.11 and Bluetooth Wireless aPPliCations
Laird's unique patented Phantom
®
is a tough low-profile antenna for outdoor or indoor
applications. Measuring only 2.7” tall, the Phantom 800 MHz to 5.8 GHz antenna models’
revolutionary design features field diversity with both vertical and horizontal polarization
components. This gives the antenna diversity, frequency agility, low visibility, wide
bandwidth and a low angle radiation pattern that is superior to traditional gain antennas in
most applications.
The industry standard NMO mounting socket mates with all Laird Technolgies’ magnetic, trunk
lid, and hole mounts. A threaded permanent stud mount model is also available for vandal
resistant mounting on brackets, panels, ceilings or any other kind of housing.
The Phantom
®
patented technology is beneficial when high performance is desired and
extreme ruggedness and low profile is required.
Features
• True Field Diversity design ensures
uninterrupted transmissions in urban
canyons and rural drop off areas
• Phantom
®
outperforms a 3dB whip in
many applications
• U.S. Patent Nos. 5,977,931 – 6,292,156
and 7,209,096
Markets
•
Cell
• GSM and PCS
• WiFi
• 802.11
• Bluetooth wireless applications
antenna Patterns
350°
°
340
10°
20°
340
10°
0°
33
0°
33
20°
30
°
0
-2
-4
-6
-8
-10
350
0
-2
-4
-6
-8
-10
30
°
0°
32
32
0°
°
40
°
40
°
°
50
60
°
Americas: +1.847 839.6925
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: IAS-AsiaSales@lairdtech.com
www.lairdtech.com
0°
23
Elevation Pattern (Y, Z, or H-plane)
0°
24
250
260°
90°
27 0°
-30
-40
-50
80°
280°
-20
70°
290
°
°
60
30
0°
5
0°
31
0°
°
31
0°
30
0°
-20
-30
-40
-50
70°
80°
290
°
280°
90 °
100°
270°
110°
12
0°
13
0°
22
0°
21
0°
15
0°
0°
14
Azimuth Pattern (X,Y, or E-plane)
200
°
160
190°
170°
180°
°
800 MHz-5.8GHz Antennas
Phantom
®
sPeCiFiCations
ELECTRICAL
VSWR
Nominal Gain
Maximum Power
Nominal Impedance
Polarization
Pattern
Half-Power Beamwidth
(Elevation° x Azimuth°)
Coaxial Cable Length & Type
Terminations
< 2.1
3 dB-M.E.G.
100 W
50
Ω
Vertical
Omnidirectional
130° x 360°
None
NMO Socket or, type N-female
Model and orderinG inForMation
MODEL
TRA8063
TRA8213
TRA8903
TRA9023
TRA18503
TRA24003
TRA58003
TRADCAGP
Sealtube3
DESCRIPTION
806-870 MHz 3 dB-MEG Phantom
®
¾ NMO, White Radome
821-896 MHz 3 dB-MEG Phantom
®
¾ NMO, White Radome
890-960 MHz 3 dB-MEG Phantom
®
¾ NMO, White Radome
902-928 MHz 3 dB-MEG Phantom
®
¾ NMO, White Radome
1.85 - 1.99 GHz 3dB-MEG Phantom
®
¾ NMO, White Radome
2.4 – 2.5 GHz 3 dB-MEG Phantom
®
¾ NMO, White Radome
4.9 – 6.0 GHz 3 dB-MEG Phantom
®
¾ NMO, White Radome
G - Drop ceiling antenna adaptor for P-mount Phantom w/
6”x6”x0.016” ground plane
Heat shrink tubing 3”x1”DIA install
(use for jaw protector on installation wrench)
MECHANICAL
Color
Height (initially)
Diameter
Weight
Material
Mounting Information
Black or White
2¾”
1.438”
0.173 lb
ABS
NMO (PN: MB8, MAB8)
Sold Separately
BlackHawk NS1535
1-35 VOLT, 15 Amp
Noise Suppessor
(Sold Separately)
Add “B” to model number for black radome. Example: TRAB8063
Add “P” to model number for Permanent Mount. Example: TRA8063P
Noise Suppressor
Permanent Mounting Option:
Please order by antenna model and insert letter “P” to indicate permanent mounting
option (TRA8063P).
ANT-DS-PHANTOM 800-5800 MHz 1214
