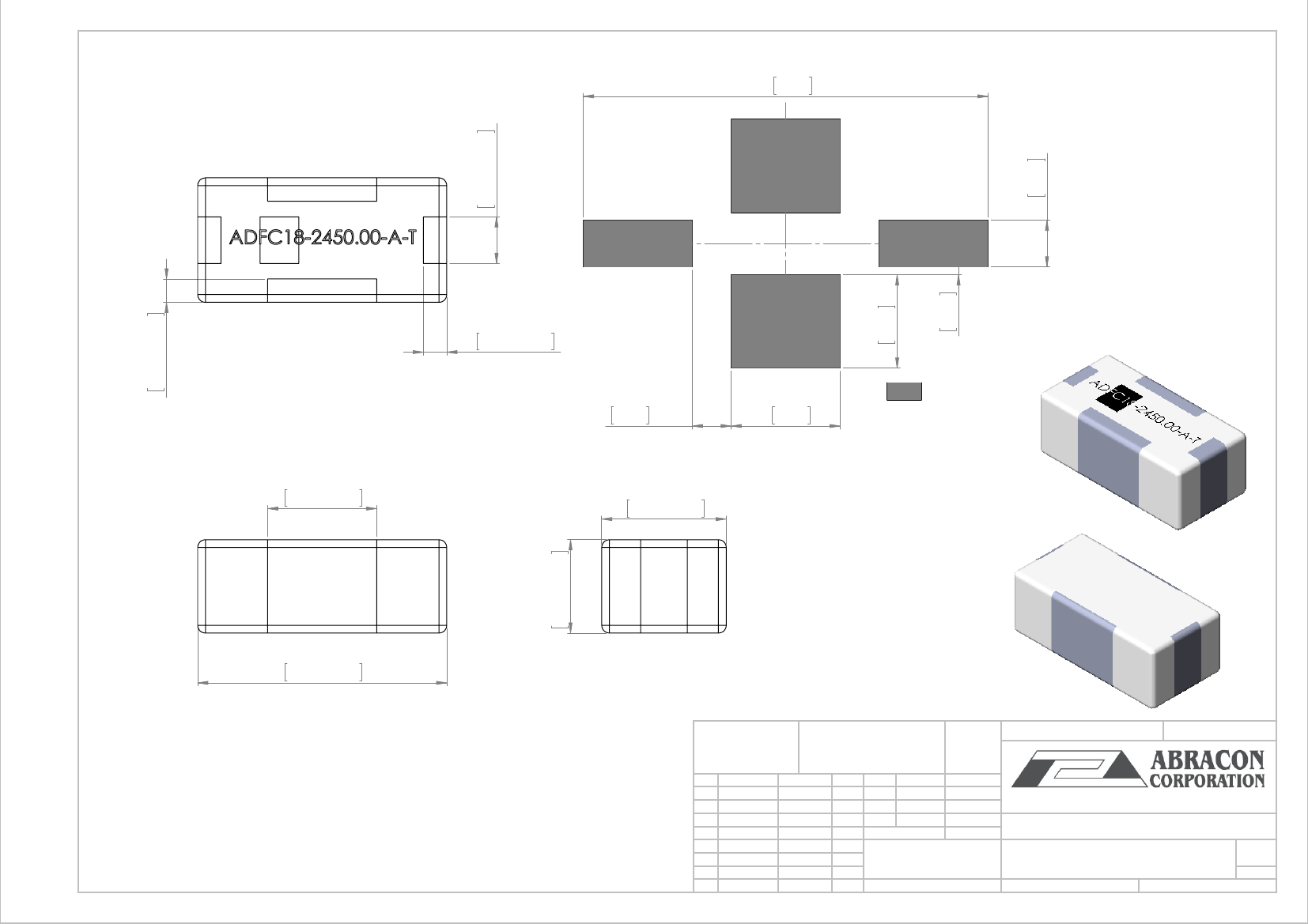

Recommended Land Pattern
0.102
2.60
0.012 ±0.004
0.30 ±0.10
(4)
(2)
0.006 ±0.004
0.15 ±0.10
0.006 ±0.004
0.15 ±0.10
0.010
0.25
0.028
0.70
0.024
0.60
(3)
0.028 ±0.006
0.70 ±0.15
0.031 ±0.004
0.80 ±0.10
0.024 ±0.004
0.60 ±0.10
0.063 ±0.004
1.60 ±0.10
(1) (3): GND
(2): OUT
(4): IN
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCH(MM)
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
NAME
DRAWN
CHK'D
APPV'D
MFG
Q.A
SAAZVAT
XXXXXX
FINISH:
0.002
0.05
Land
DEBUR AND
BREAK SHARP
EDGES
0.012
0.30
(1)
DO NOT SCALE DRAWING
REVISION
-
SIGNATURE
DATE
30332 Esperanza, Rancho Santa margarita, California 92688
TITLE:
Dielectric Filter
MATERIAL:
DWG NO.
ADFC18-2450.00-A-T
SHEET 1 OF 1
A3
WEIGHT:
SCALE:50:1
