SDURD560A
Technical Data
Data Sheet N0399 Rev. C
SDURD560A ULTRAFAST RECTIFIER
Applications
Antiparallel diode for high frequency
switching devices
Anti saturation diode
Snubber diode
Free wheeling diode in converters and
motor control circuits
Rectifiers in switch mode power supplies (SMPS)
Inductive heating and melting
Uninterruptible power supplies (UPS)
Ultrasonic cleaners and welders
DPAK

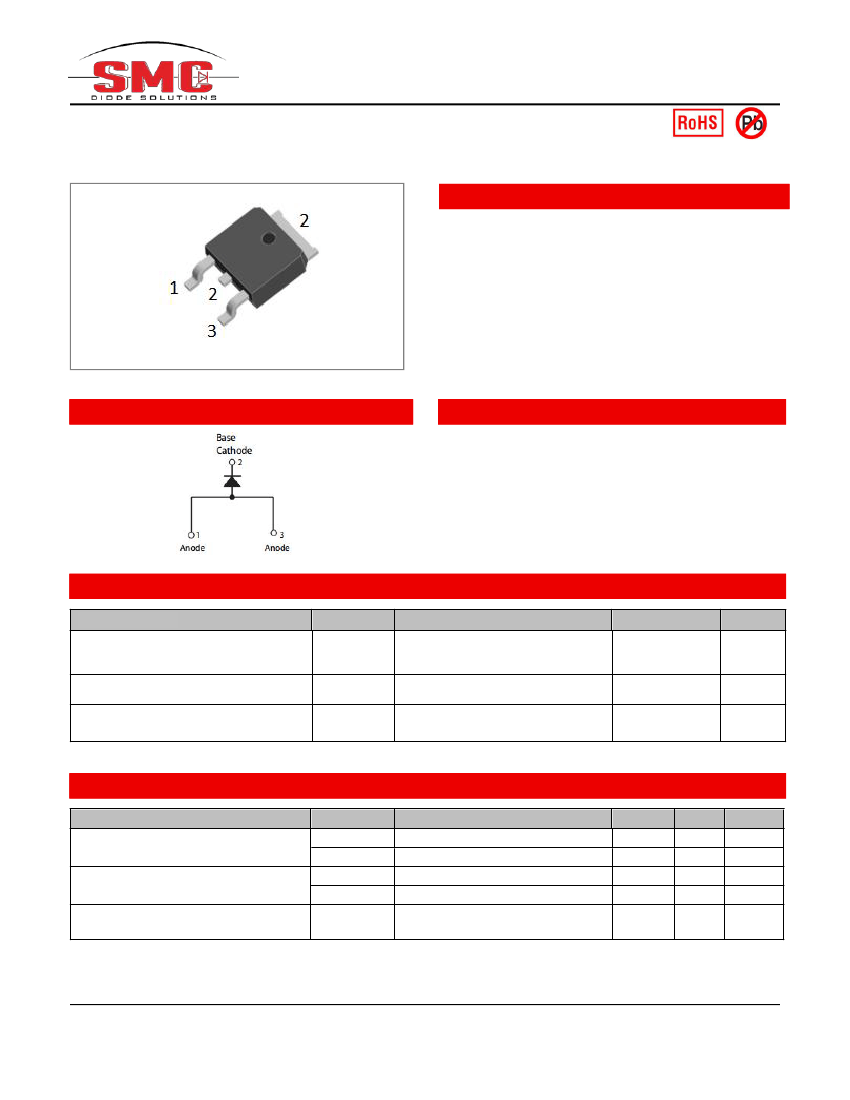

Circuit Diagram
Features
Ultra-Fast switching
High current capability
Low reverse leakage current
High surge current capability
This is a Pb − free device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Maximum Ratings
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @Tc=100°C,
rectangular wave form
8.3ms, Half Sine pulse
Max.
600
5
60
Units
V
A
A
Electrical Characteristics
Characteristics
Forward Voltage Drop*
Reverse Current*
Reverse Recovery Time
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
V
F2
I
R1
I
R2
t
rr
Condition
@ 5A, Pulse, T
J
= 25℃
@ 5A, Pulse, T
J
= 125C
@V
R
= rated V
R,
T
J
= 25℃
@V
R
= rated V
R,
T
J
= 125℃
I
F
=500mA, I
R
=1A,and I
rm
=250mA
1.50
1.41
0.1
52
32
Typ.
Max.
1.70
1.50
5
500
35
Units
V
V
μA
μA
ns
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDURD560A
Technical Data
Data Sheet N0399 Rev. C
Thermal-Mechanical Specifications
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
wt
Condition
-
-
-
-
DPAK
Specification
-55 to +150
-55 to +150
4.5
0.39
Units
C
C
C/W
g

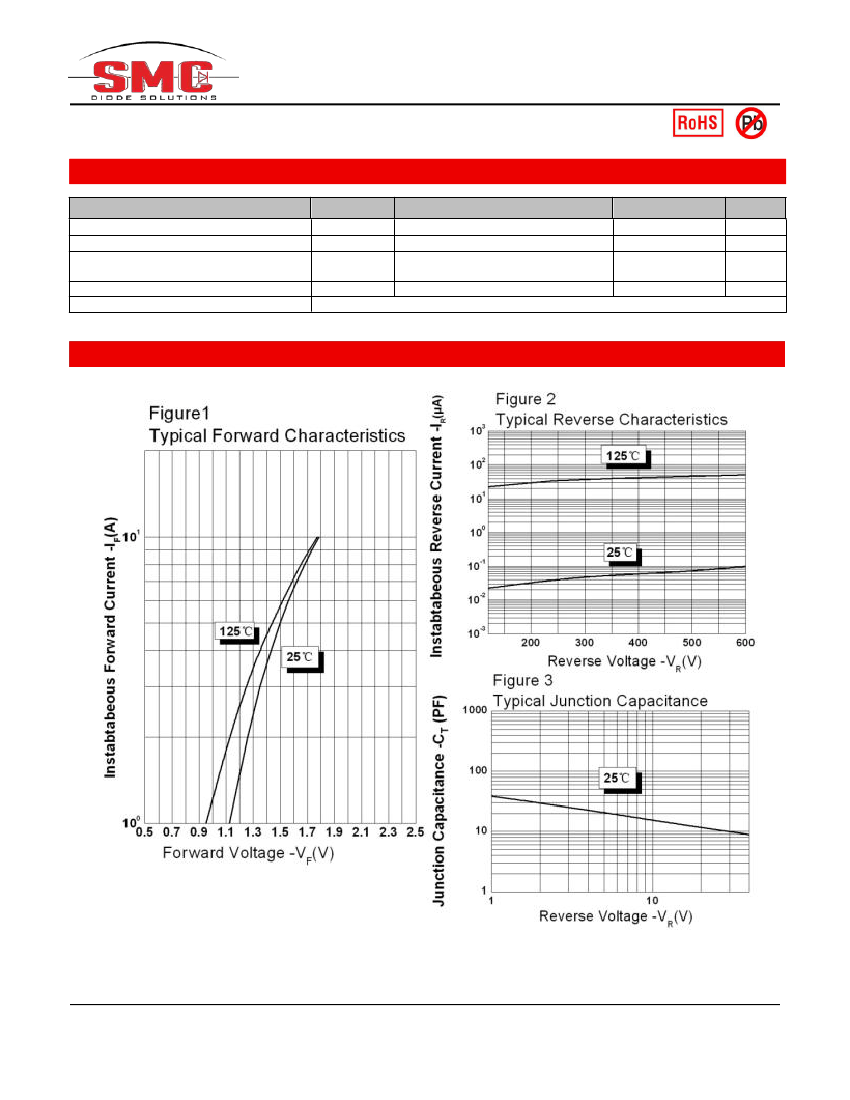

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDURD560A
Technical Data
Data Sheet N0399 Rev. C

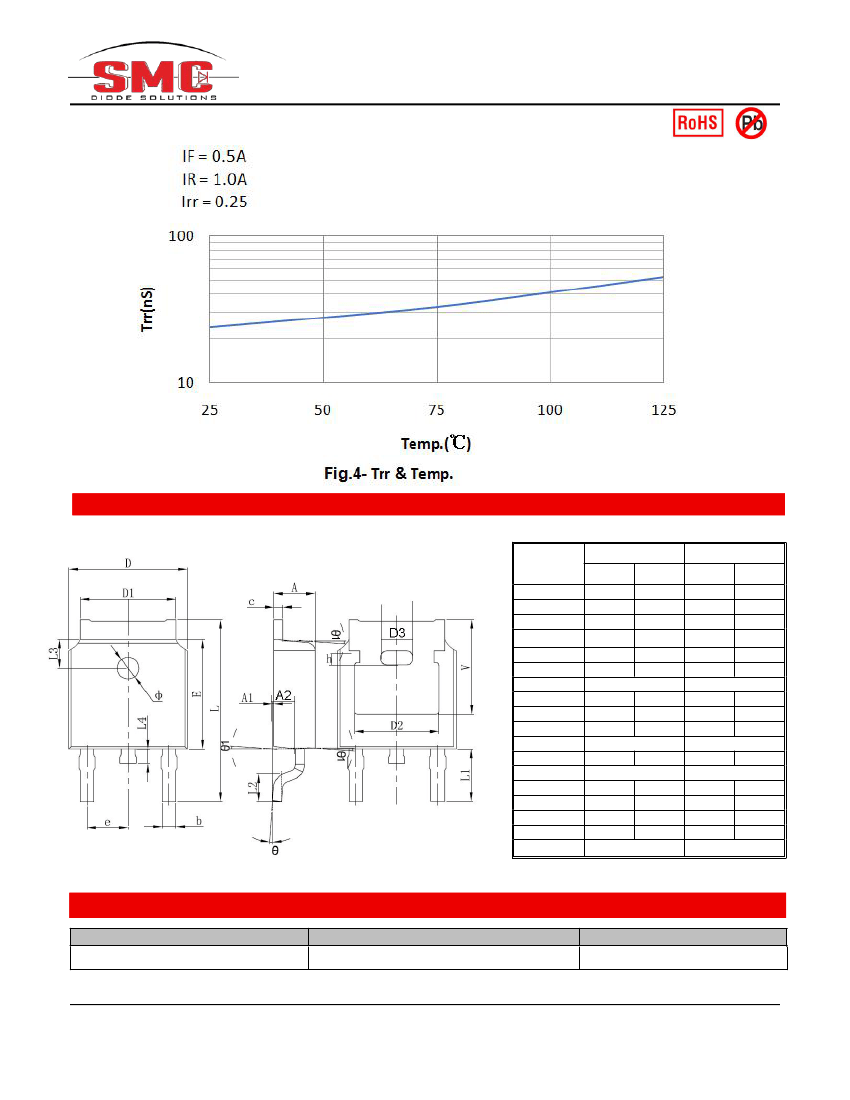

Mechanical Dimensions DPAK
SYMBOL
A
A1
b
c
D
D1
D2
E
e
L
L1
L2
L3
L4
Φ
Θ
h
V
Millimeters
Min.
Max.
2.20
2.40
0.00
0.127
0.66
0.86
0.46
0.60
6.50
6.70
5.13
5.46
4.83 REF.
6.00
6.20
2.186
2.386
9.70
10.40
2.90 REF.
1.40
1.70
1.60 REF.
0.60
1.00
1.10
1.30
0°
8°
0.00
0.30
5.35 REF.
Inches
Min.
Max.
0.087
0.094
0.000
0.005
0.026
0.034
0.018
0.024
0.256
0.264
0.202
0.215
0.190 REF.
0.236
0.244
0.086
0.094
0.381
0.409
0.144 REF.
0.055
0.067
0.063 REF.
0.024
0.039
0.043
0.051
0°
8°
0.000
0.012
0.211 REF.
Ordering Information
Device
SDURD560A
Package
DPAK (Pb-Free)
Shipping
2500pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
SDURD560A
Technical Data
Data Sheet N0399 Rev. C
Marking Diagram
Where XXXXX is YYWWL
SDUR
D
5
60
A
SSG
YY
WW
L
= Device Type
= Package type
= Forward Current (5A)
= Reverse Voltage (600V)
=A
= SSG
= Year
= Week
= Lot Number
Cautions：Molding
resin
Epoxy resin UL:94V-0

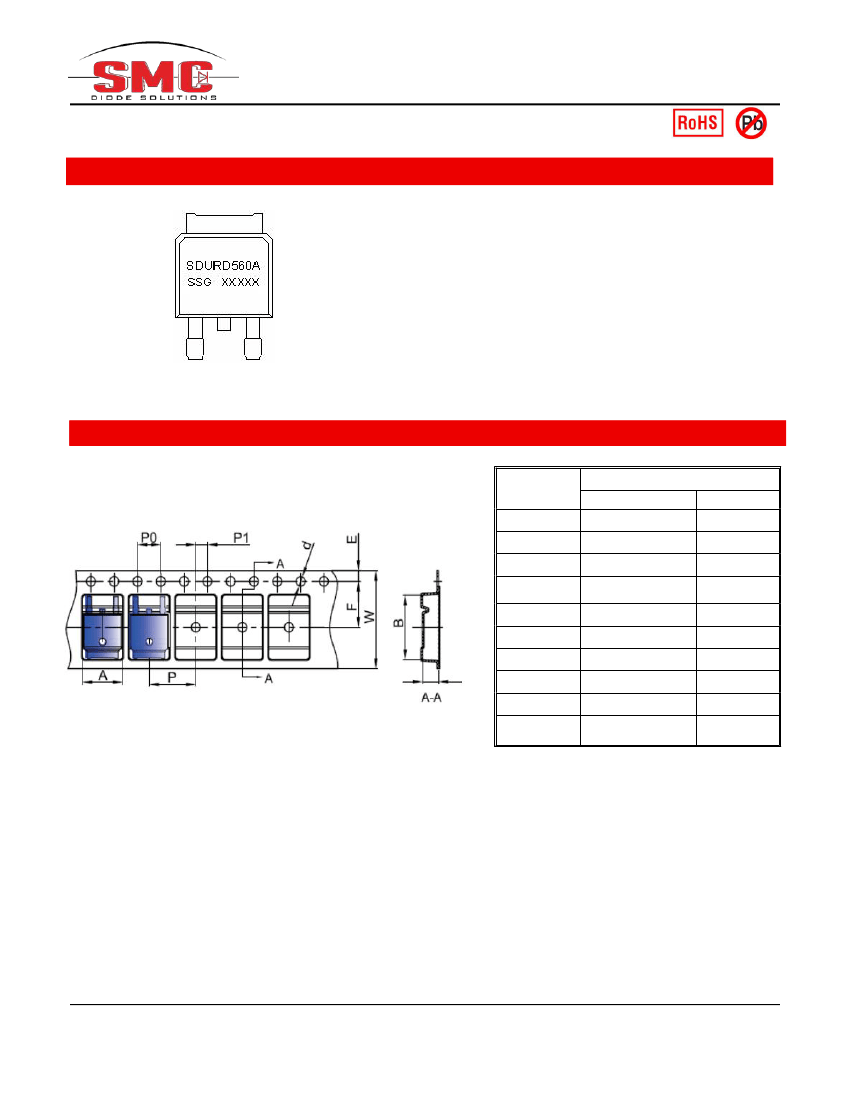

Carrier Tape & Reel Specification DPAK
SYMBOL
A
B
C
d
E
F
P0
P
P1
W
Millimeters
Min.
Max.
6.80
10.40
2.60
Φ1.45
1.65
7.40
3.90
7.90
1.90
15.90
7.00
10.60
2.80
Φ1.65
1.85
7.60
4.10
8.10
2.10
