MM74HCT05 — Hex Inverter (Open Drain)
March 2008
MM74HCT05
Hex Inverter (Open Drain)
Features
■

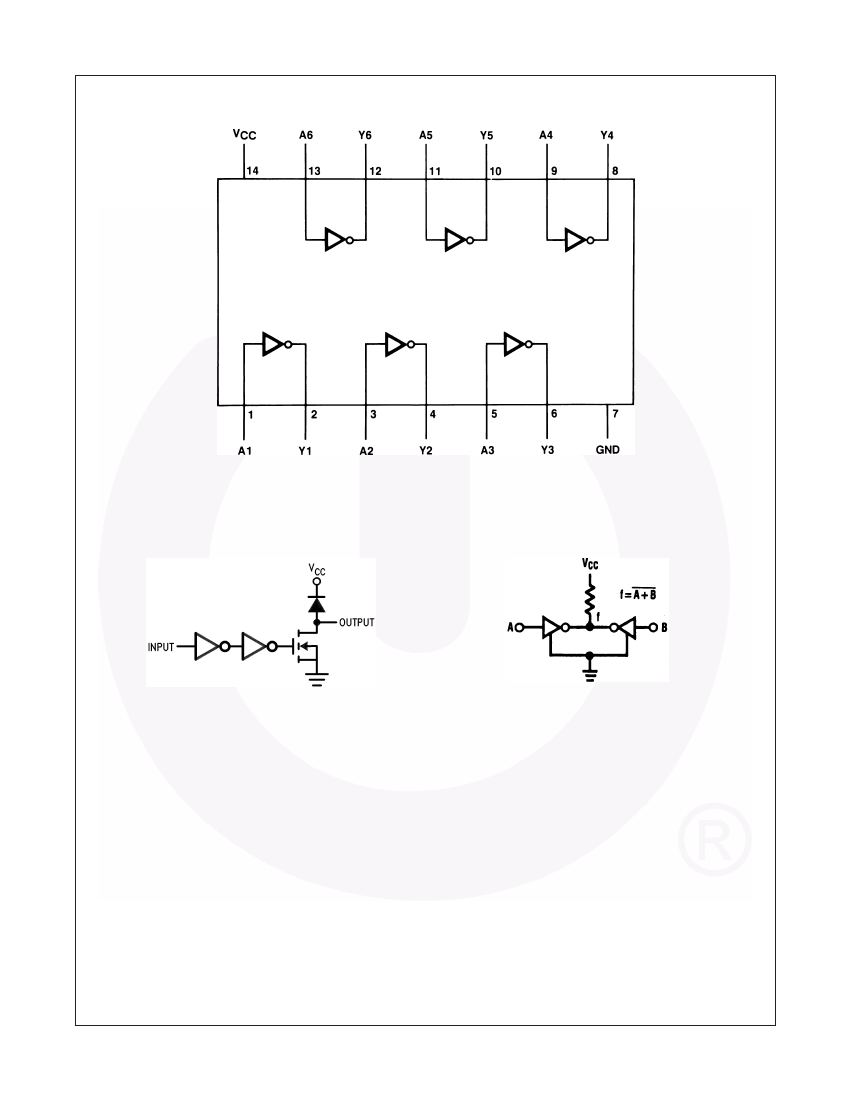

Open drain for wire-NOR function
■
LS-TTL pinout and threshold compatible
■
Fanout of 10 LS-TTL loads
■
Typical propagation delays:
General Description
The MM74HCT05 is a logic function fabricated by using
advanced silicon-gate CMOS technology, which pro-
vides the inherent benefits of CMOS—low quiescent
power and wide power supply range. The device is also
input and output characteristic and pinout compatible
with standard DM74LS logic families. The MM74HCT05
open drain Hex Inverter requires the addition of an exter-
nal resistor to perform a wire-NOR function.
All inputs are protected from static discharge damage by
internal diodes to V
CC
and ground.
MM74HCT devices are intended to interface between
TTL and NMOS components and standard CMOS
devices. These parts are also plug-in replacements for
LS-TTL devices and can be used to reduce power con-
sumption in existing designs.
– t
PZL
(with 1k
Ω
resistor) 10ns
– t
PLZ
(with 1k
Ω
resistor) 8ns
Ordering Information
Order Number
MM74HCT05M
MM74HCT05SJ
MM74HCT05MTC
MM74HCT05N
Package
Number
M14A
M14D
MTC14
N14A
Package Description
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150"
Narrow
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
