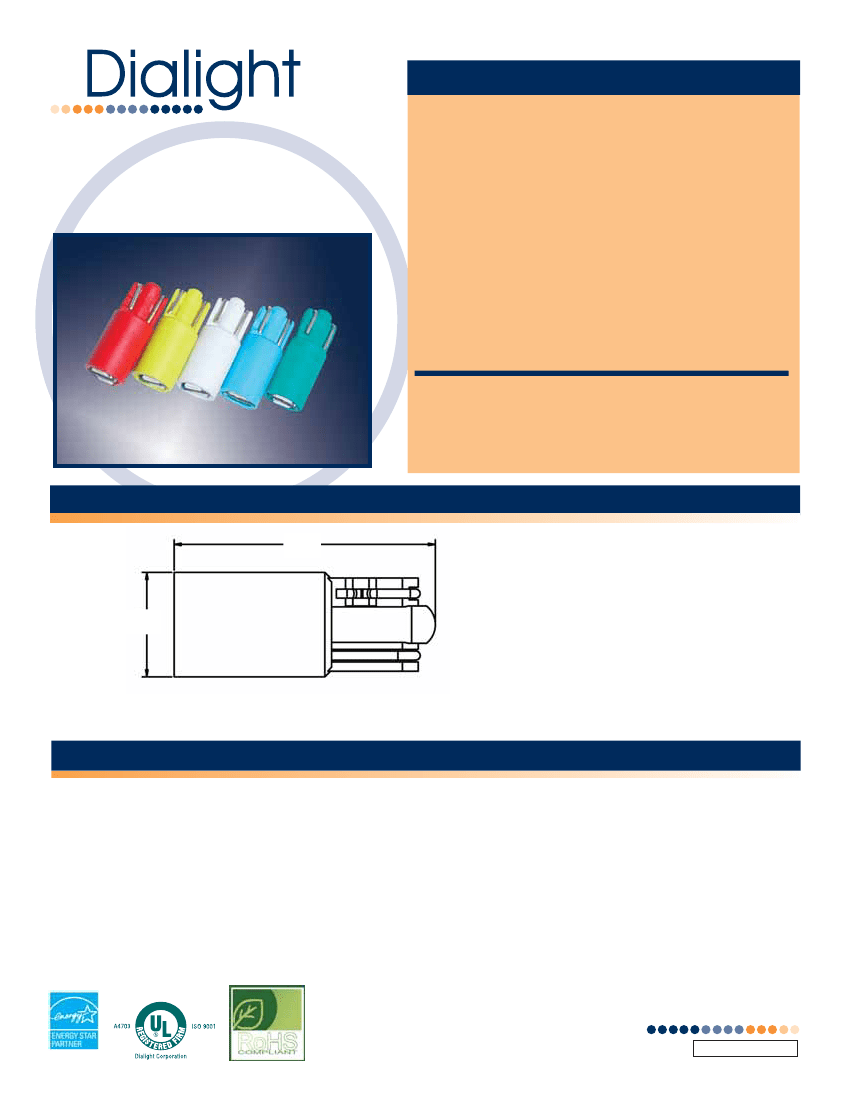

FEATURES / BENEFITS
RoHS Compliant
586 Series
BASED LED
T1 3/4 WEDGE (T5)
Unique multi-LED design provide superior illumination
High brightness with low current draw - uses up to 90% less
energy than incandescent
Long Life - up to 100K hours
True non-polarized design
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
Incorporating AlInGaP and InGaN technology
Colors include red, green, yellow, blue, and white
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.
SPECIFICATIONS
.579
[14.71]
Operating Voltages: 6, 12, 14, 24, and 28 VDC
Non-polarized
Operating temperature: -30
o
C
to +
85
o
C
.232
[5.89]
Storage temperature: -40
o
C
to +
100
o
C
Replaces incandescent lamp numbers*: 79, 16,
84, 86, 18, 37, 70, 73, 74, 17, 85
Measurements are typical
Dimensions are inches [mm]
*
See Dialight’s Incandescent lamp/based LED
cross reference guide for a complete listing
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.
If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses
which will optimize the light output.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586L001_B
586 Series BASED LED
T1 3/4 WEDGE (T5)
T1 3/4 WEDGE (T5) NON-POLARIZED
PART NUMBER
586-1201-201F
586-1202-201F
586-1203-201F
586-1205-201F
586-1206-201F
586-1201-202F
586-1202-202F
586-1203-202F
586-1205-202F
586-1206-202F
586-1201-203F
586-1202-203F
586-1203-203F
586-1205-203F
586-1206-203F
586-1201-204F
586-1202-204F
586-1203-204F
586-1205-204F
586-1206-204F
586-1201-205F
586-1202-205F
586-1203-205F
586-1205-205F
586-1206-205F
COLOR
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
Red
Green
Yellow
Blue
White
PEAK
WAVELENGTH
(nm)
615
528
587
470
*
615
528
587
470
*
615
528
587
470
*
615
528
587
470
*
615
528
587
470
*
VOLTAGE
(VDC)
6
6
6
6
6
12
12
12
12
12
14
14
14
14
14
24
24
24
24
24
28
28
28
28
28
CURRENT
TYP.-(mA)
35
12
35
12
15
18
8
18
8
11
20
8.5
20
8.5
12
14
10
14
10
14
14
10
14
10
14
INTENSITY
TYP.-(mcd)
450
120
450
50
320
450
170
450
70
450
500
185
500
75
500
350
215
350
85
580
350
210
350
80
540
RoHS
COMPLIANT
* Color Coordinates: x = .330, y = .330
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent lamp when used
in similar packages. These advancements have created a new type of product called the based LED - an LED with the functionality
of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange
T1 3/4 Bi-Pin
T1 3/4 Wedge (T5)
T3 1/4 Miniature Bayonet (BA9s)
T3 1/4 Miniature Screw (E10)
T3 1/4 Wedge (T10)
T2 Telephone Slide
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow. Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586L001_B
