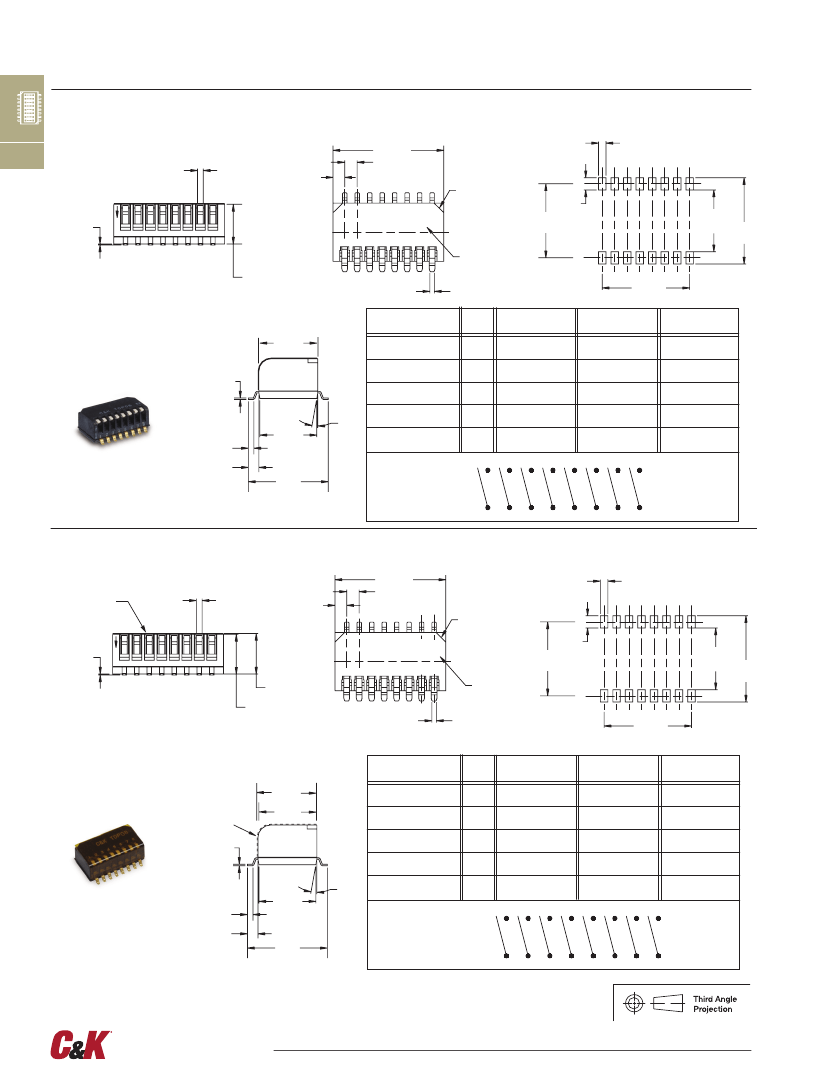

TDP Series
Ultra-miniature Surface Mount
Half-pitch Side-Actuated DIP Switches
Features/Benefits
•
World’s first ultra-miniature SMT half-pitch
•
•
•
•
side-actuated DIP
Side actuation allows visual indication of
on/off position in horizontal applications
Process sealed for surface mount soldering
and washable processing
RoHS compliant
Lead free
Typical Applications
•
Hand-held electronic devices
•
Portable computer and
electronic devices
•
Instrumentation and controls
H
DIP
Specifications
SWITCH FUNCTION: SPST — 2, 4, 6, 8, 10 positions.
CONTACT RATING:
24 V DC, 25 mA (switching).
50 V DC, 100 mA (steady state).
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles.
CONTACT RESISTANCE: 100 mΩ max.
INSULATION RESISTANCE: 100 MΩ @ 100 V DC min.
DIELECTRIC STRENGTH: 300 V AC min.
STORAGE TEMPERATURE: –40°C to 85°C.
OPERATING TEMPERATURE: –40°C to 85°C.
OPERATING FORCE: 4,9N max.
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
PACKAGING: Switches supplied in rigid dispensing tubes in full tube
quantities only, this may affect order quantity. Tape and reel
packaging also available.
Materials
CASE & COVER: glass filled PPS (UL94V-0).
ACTUATOR: PA6T (UL94V-0).
CONTACTS: Copper alloy with gold plate over nickel plate.
TERMINALS: Copper alloy, with gold over nickel plate.
All terminals are insert molded.
TAPE SEAL: Polyimide.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate
box.
All switches supplied in “OFF” position.
T D P
Designation
TDP
Number
of Positions
02
Actuator
04
H0
Flush Actuator
06
H1
Extended Actuator
08
Terminations
10
S
Gull wing
S
B
1
Packaging
(None)
Tubes
R
Tape and Reel
Terminal Seal
1
Terminals are sealed
Tape Seal
(None)
with tape
D
No tape
Contact Material
B
Gold
Note:
Tape seal is not available with H1 Extended Actuators.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–3
www.ckswitches.com
TDP Series
Ultra-miniature Surface Mount
Half-pitch Side-Actuated DIP Switches
Extended Actuator-No Top Tape,
Surface Mount Terminals
0.023
(0,6)
0.047
(1,2)
0.030
(0,76)
DIM 'A'
0.050 TYP.
(1,27)
2X 0.039 (1,0)
CHAMFER
C&K
2
3
4
5
6
7
8
1
2
3
4
5
6
H
0.300
(7,62)
0.050
(1,27)
DIP
0.012/0.004
(0,3/0,1)
O
N 1
TDP08
5A
7
8
DATE
CODE
0.250
(6,35)
0.350
(8,89)
0.161
(4,1)
0.018
(0,45)
PART NUMBER
NO.
POS.
2
4
6
8
10
DIM
‘A’
0.144 (3,67)
0.244 (6,21)
0.344 (8,74)
0.444 (11,29)
0.544 (13,82)
DIM
“B”
0.050 (1,27)
0.150 (3,81)
0.250 (6,35)
0.350 (8,89)
0.450 (11,43)
QUANTITY
PER TUBE
125
70
50
40
30
DIM 'B'
0.236
(6,0)
0.030
(0,75)
0.006
(0,15)
TDP02H1SBD1
TDP04H1SBD1
TDP06H1SBD1
TDP08H1SBD1
TDP10H1SBD1
Schematic
10
0
0.022
(0,57)
0.042
(1,06)
0.228
(5,8)
0.320
(8,12)
SPST
Tube Packaging
0.055
(1,4)
0.130
(3,3)
0.130
(3,3)
R 0.020
(R 0,5)
0.039
(1,0)
19.690±.039
(500,0±1,0)
0.248
(6,3)
0.201
(5,1)
MODEL NUMBER
QTY
IN TUBE
125
70
50
40
30
TDP02
0.134
(3,4)
0.440
(11,2)
Note:
Switch shown has H1 extended actuator.
0.020
(0,5)
TDP04
TDP06
R 0.043
(R 1,1)
TDP08
TDP10

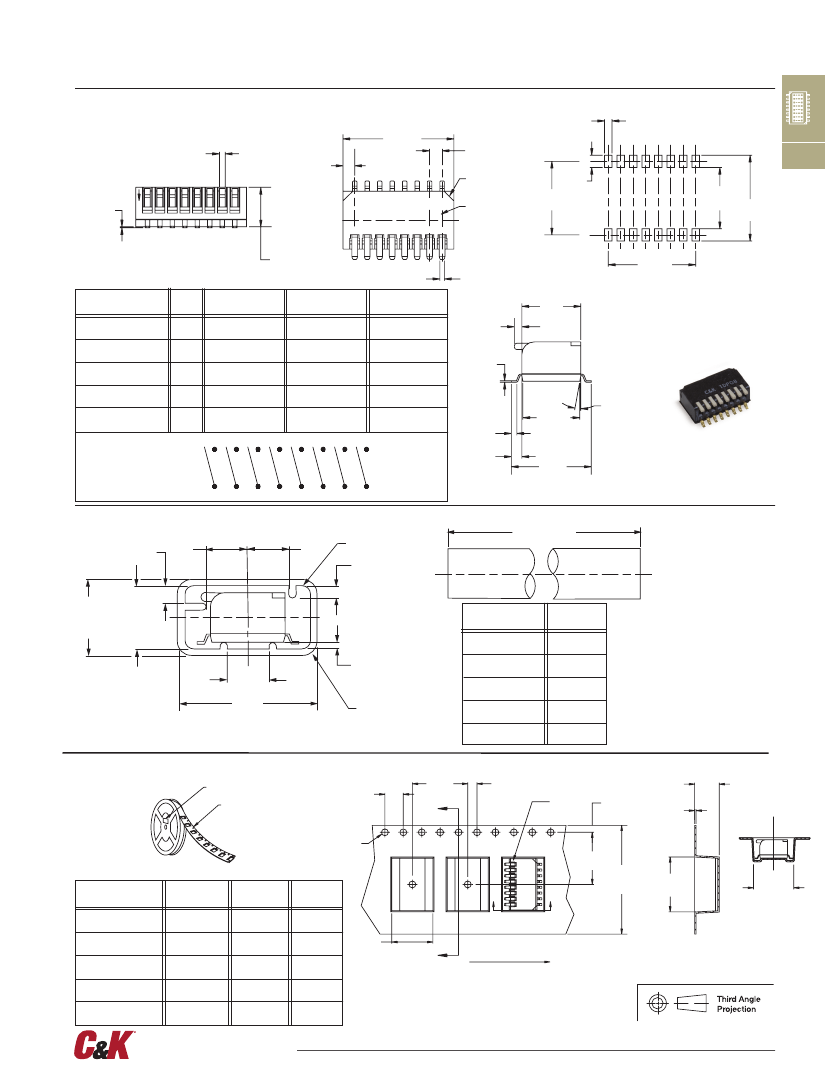

Tape and Reel Packaging
MARKING LABEL
EMBOSSED CARRIER
0.157
(4,00)
0.472
(12,00)
A
0.079
(2,00)
PIN #1
0.069
(1,75)
0.191
(4,86)
REF
0.012
(0,30)
Ø0.059
(1,50Ø)
C&K TDP08
5A
1 2 3 4 5 6 7 8
DIRECTION OF FEED
DIM
PART NUMBER
DIM.
‘W’
0.630 (16,0)
0.630 (16,0)
0.630 (16,0)
0.945 (24,0)
0.945 (24,0)
DIM
“P”
0.175 (4,45)
0.276 (7,0)
0.376 (9,55)
0.476 (12,1)
0.576 (14,65)
PER REEL
1,000
1,000
1,000
1,000
1,000
0.453
(11,5)
DIM. 'W'
SEE CHART
B
DIM. “P”
SEE CHART
0.350
(8,9)
SECTION B-B
B
TDP02
TDP04
TDP06
TDP08
TDP10
0.350
(8,9)
A
NOTE: PART NUMBER SHOWN:TDP08H1SBD1R
FEED DIRECTION
SECTION A-A
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
H–5
www.ckswitches.com
