3023475 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 3023475

3023475: DescriptionSWITCH CAP WHITE; CategoryLED optoelectronic/LED; File Size23KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric View All

3023475 Overview

SWITCH CAP WHITE

3023475 Parametric

Parameter Name	Attribute value
Accessory type	cap
Supporting products/related products	183 Series Panel Mount Indicator Lights

Preview

Download Datasheet

View All

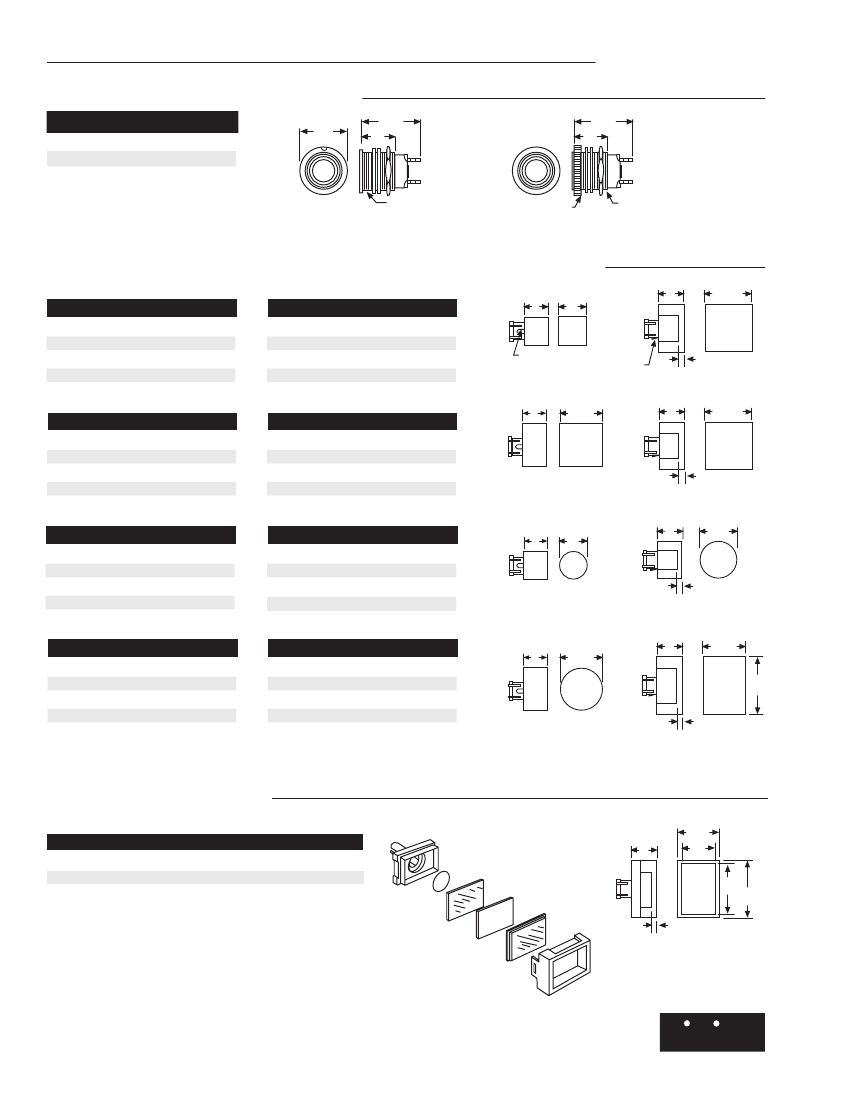

ILLUMINATED PUSHBUTTON SWITCHES & MATCHING PANEL MOUNT INDICATORS

183 SERIES INDICATOR LIGHTS

PART NO.

CAP

FIG

183-9730-14-602 ALL

183-9830-14-604 ALL

13.94

[.549]

21.42

[.84]

MAX

10.31

[.41]

Caps Ordered Separately, See Below

21.42

[.84]

MAX

12.29

[.48]

Uses:

T-1 3/4 MIDGET

FLANGE BASE

INCANDESCENT LAMP

11.84 [.469] -

32NS - 2A THD.

FRONT PANEL MOUNT

12.70 [.500] - 32 NS

KNURLED FLANGE NUT

2A THD.

2.39 [.094] X 16.51 [.650]

MAX O.D.

FRONT OR REAR PANEL MOUNT

Fig. 1

Fig. 2

184, 186, 187, 188, 302, 304, 305 & 307 SERIES CAPS

1/2" SQUARE

CAP PART NO.

184-1871

184-1872

184-1873

184-1875

1/2" ROUND

COLOR

RED

GREEN

YELLOW

WHITE

11.13

[.438]

FIG

CAP PART NO.

186-1471

186-1472

186-1473

186-1475

COLOR

RED

GREEN

YELLOW

WHITE

FIG

ANTI-

ROTATION

TAB

12.70

[.500]

SQ.

11.13

[.438]

15.77

[.621]

SQ.

ANTI-

ROTATION

TAB

Fig. 3

11.13

[.438]

19.05

[.750]

SQ.

1.96

[.078]

11.13

[.438]

Fig. 4

18.95

[.746]

SQ.

5/8" SQUARE

†

CAP PART NO.

304-1871

304-1872

304-1873

304-1875

5/8" ROUND

†

COLOR

RED

GREEN

YELLOW

WHITE

FIG

CAP PART NO.

305-1471

305-1472

305-1473

305-1475

COLOR

RED

GREEN

YELLOW

WHITE

FIG

Fig. 5

11.13

[.438]

1.96

[.078]

3/4" SQUARE

CAP PART NO.

187-1871

187-1872

187-1873

187-1875

3/4" ROUND

COLOR

RED

GREEN

YELLOW

WHITE

Fig. 6

11.13

[.438]

15.77

[.621]

SQ.

FIG

CAP PART NO.

188-1471

188-1472

188-1473

188-1475

COLOR

RED

GREEN

YELLOW

WHITE

FIG

12.70

[.500]

SQ.

1.96

[.078]

3/4" SQUARE

†

CAP PART NO.

307-1871

307-1872

307-1873

307-1875

3/4" x 1" RECTANGULAR

†

COLOR

RED

GREEN

YELLOW

WHITE

Fig. 7

Fig. 8

19.05

[.750]

SQ.

11.13

[.438]

18.54

[.730]

FIG

CAP PART NO.

302-3471

302-3472

302-3473

302-3475

COLOR

RED

GREEN

YELLOW

WHITE

FIG

11.13

[.438]

24.64

[.970]

1.96

[.078]

Please contact factory for legend information available on Figures 3 thru 10

Fig. 9

Fig. 10

534 SERIES CAP KITS

3/4" x 1" LEGEND KITS†

KIT PART NO.

534-0701-030

534-0701-037

534-0701-537

LENS/FILTER COLOR

RED, GREEN, AMBER, BLUE/NONE

CLEAR/NONE

CLEAR/RED, GREEN, AMBER, BLUE

FIG

CAP BASE

UNDERLYING

FILTER

DIFFUSING

LENS

LEGEND

PLATE

LENS

BLACK

FRAME

11.13

[.438]

18.54

[.730]

13.97

[.550]

20.07

[.790]

24.64

[.970]

Legends provided by Dialight Stocking Distributors

† Feature fingertip grip for use with snap-in mount switches and indicators

Material & Finish: Base, Clear anodized aluminum;

Cap, High temperature scratch-resistant plastic

Neon and incandescent lamp information on Pages 35 and 36.

Dimensions in mm [inches]

1.96

[.078]

Fig. 11

534-0701-537 SHOWN
