Xeon 7500 Series 4U
High Performance Heat Sink
RoHS
Compliant

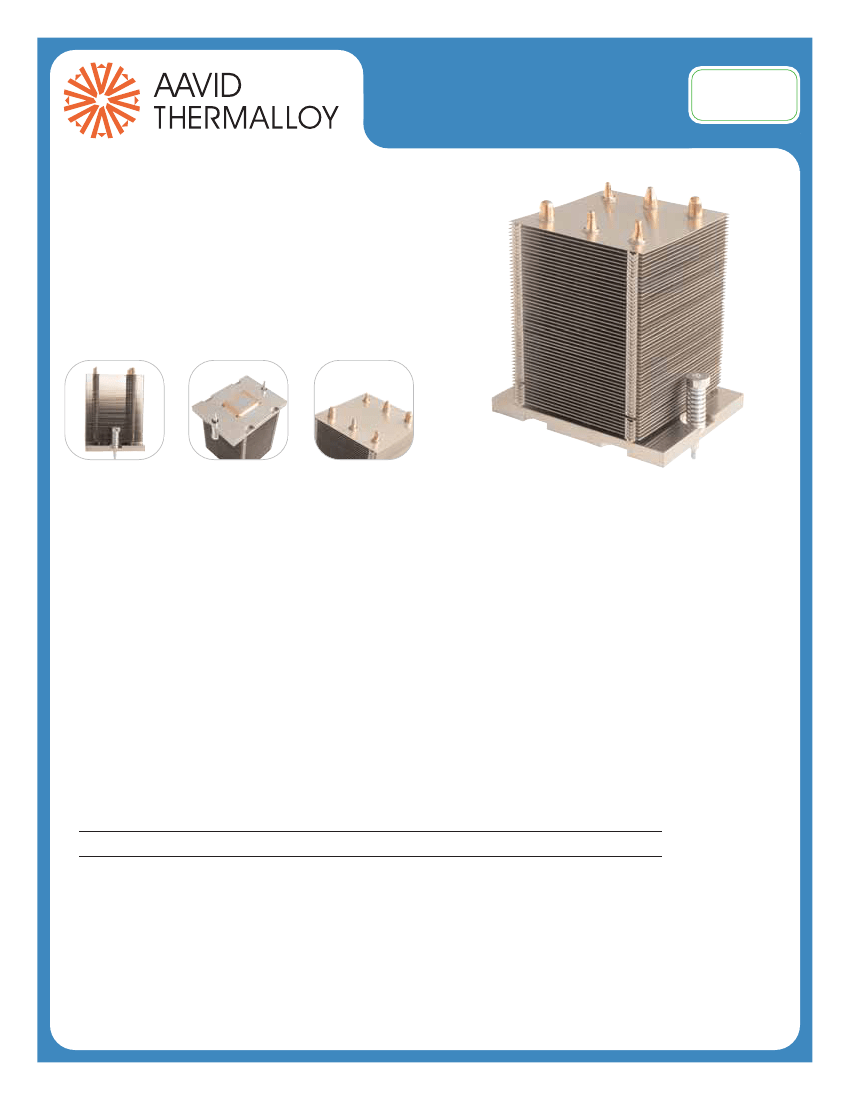

PASSIVE HEAT SINK FOR INTEL®
XEON 7500 SERIES PROCESSORS
Aavid’s line of 7500 series processor heat sinks
are suitable for mainstream servers. Their unique
design removes heat using heat pipes, copper,
and aluminum construction. Each heat sink
comes with the necessary hardware and thermal
interface for quick and easy assembly.
CRITICAL APPLICATION NEEDS:
• Remove heat from the processor
FEATURES:
• Optimized design and robust construction focusses
on rapid heat removal from the chip using heat pipes,
copper, and aluminum geometries
• This design was developed using an overall system
analysis with standard component layout and require-
ments. This solution met all of the parameters regarding
the standard server architecture and allowed for overall
system cooling to be achieved
• The new LGA1257 package requires the dynamic heat
sink loading to be controlled to achieve proper electrical
interconnect over long term reliability. These require-
ments have been achieved with our product
• CPU thermal solution is part of the system solution
• Proper mechanical force loading
ORDERING INFORMATION:
Part Number
050234
322145
Description
Aluminum Zipper Fin with Advanced Hi-Contact™ Heat Pipes
Backing Plate
FOR MORE INFORMATION, VISIT OUR WEB SITE:
WWW.AAVIDTHERMALLOY.COM
TEL:
(603) 224-9988
Xeon 7500 Series 4U
High Performance Heat Sink
RoHS
Compliant

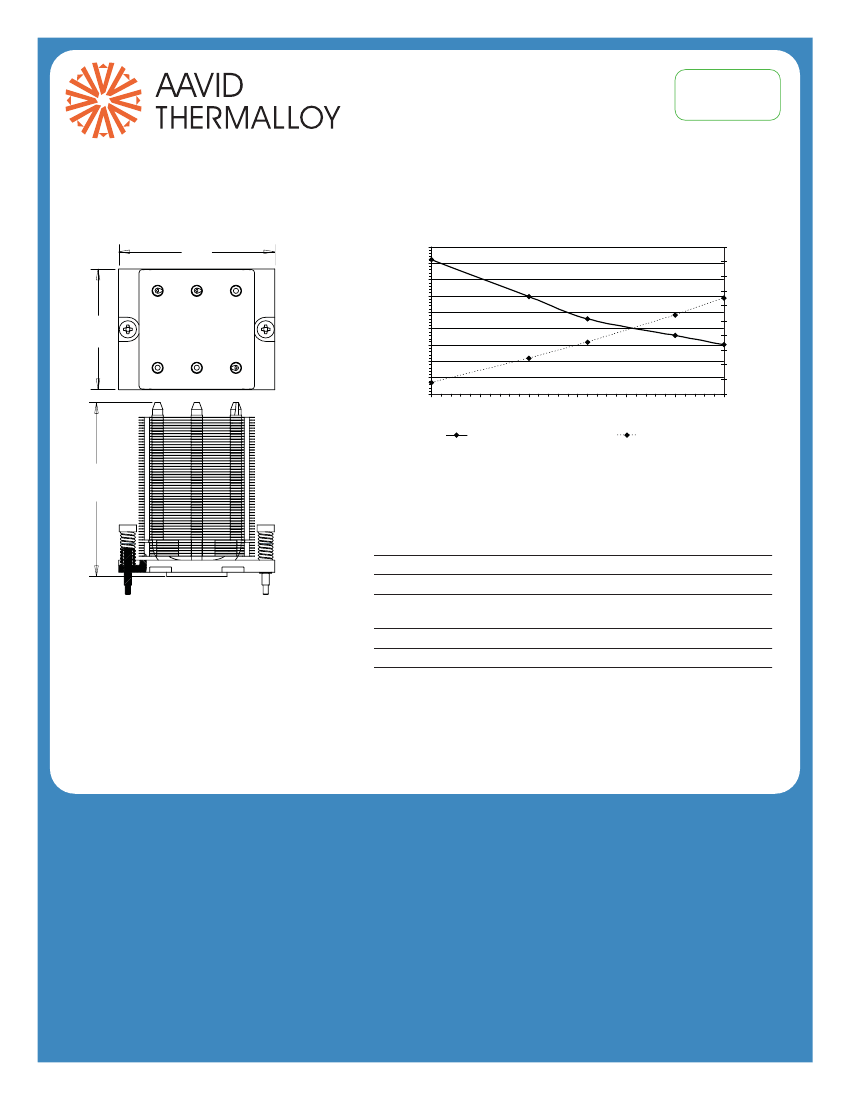

MECHANICAL DRAWING:
Dimensions are shown as mm
THERMAL PERFORMANCE:
90.5
0 .1 9
0 .1 8
0 .1 7
Theta C-A (˚C/ W )
0 .1 6
0 .1 5
0 .1 4
0 .1 3
0 .1 2
0 .1 1
0 .1
20
25
30
35
FL O W (CFM)
40
45
A vg . S a m p le #1 0 d P
50
0 .3 5
0 .3 2
0 .2 9
0 .2 6
0 .2 3
0 .2
0 .1 7
0 .1 4
0 .1 1
0 .0 8
0 .0 5
P res su re D ro p (in H 2 O )
70.0
A vg . S a m p le # 1 0
101
PHYSICAL SPECIFICATION:
Application
Intel Compatibility
Socket Type
Construction
Intel® Xeon 7500 series
TBD
LGA 1257
Base
Fins
Thermal Interface Material
1
Weight
Mechanical
Aluminum w/ Copper Pedestal & Heat Pipe
Aluminum Fin
Shin-Etsu G751Grease
335 Grams
Designed to meet Intel® shock and vibration requirements
North America
70 Commercial Street
Concord, NH 03301
TEL: (603) 224-9988
FAX: (603) 223-1790
EMAIL: info@aavid.com
Europe - Italy
Via Aprile,32
40057 Cadriano (BO), Italy
TEL: (39) 051 764011
FAX: (39) 051 764092
EMAIL: sales.it@aavid.com
Asia - Taiwan
14F-4, NO. 79, Hsin Tai Wu RD.
SEC. 1, Hsi Chih
Taipei Hsien, Taiwan
TEL: 011(886) 2–2698–9888
FAX: 011(886) 2–2698–9808
EMAIL: sales.tw@aavid.com
Asia - Singapore
31 Admiralty Road, #06-01
Singapore 739984
TEL: 65 –6362–8388
FAX: 65–6362–8588
EMAIL: sales.sg@aavid.com
PLEASE NOTE: Any information furnished by Aavid Thermalloy is believed to be accurate and reliable, but our customers must bear all responsibility for use and applications of
Aavid Thermalloy products. AAVID THERMALLOY MAKES NO WARRANTIES EXPRESSED OR IMPLIED, AS TO THE FITNESS, MERCHANTABILITY, OR SUITABILITY OF ANY AAVID PROD-
UCTS FOR ANY SPECIFIC OR GENERAL USES. AAVID THERMALLOY SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.All Aavid Thermalloy
products are sold pursuant to the Aavid Thermalloy Domestic Terms and Conditions of Sale in effect from time to time, a copy of which shall be furnished upon request (8911A).
Copyright© Aavid Thermalloy, LLC. May 2009. All icons, drawings, illustrations, and trademarks are the property of Aavid Thermalloy, LLC. and may not be reproduced without
express written permission. (5/2009)
FOR MORE INFORMATION, VISIT OUR WEB SITE: WWW.AAVIDTHERMALLOY.COM
TEL: (603) 224-9988
