10119130-W0C-70DLF

Description
XCEDE HD RIGHT 2W 6PVH 6COL WK
CategoryThe connector
File Size5MB,8 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

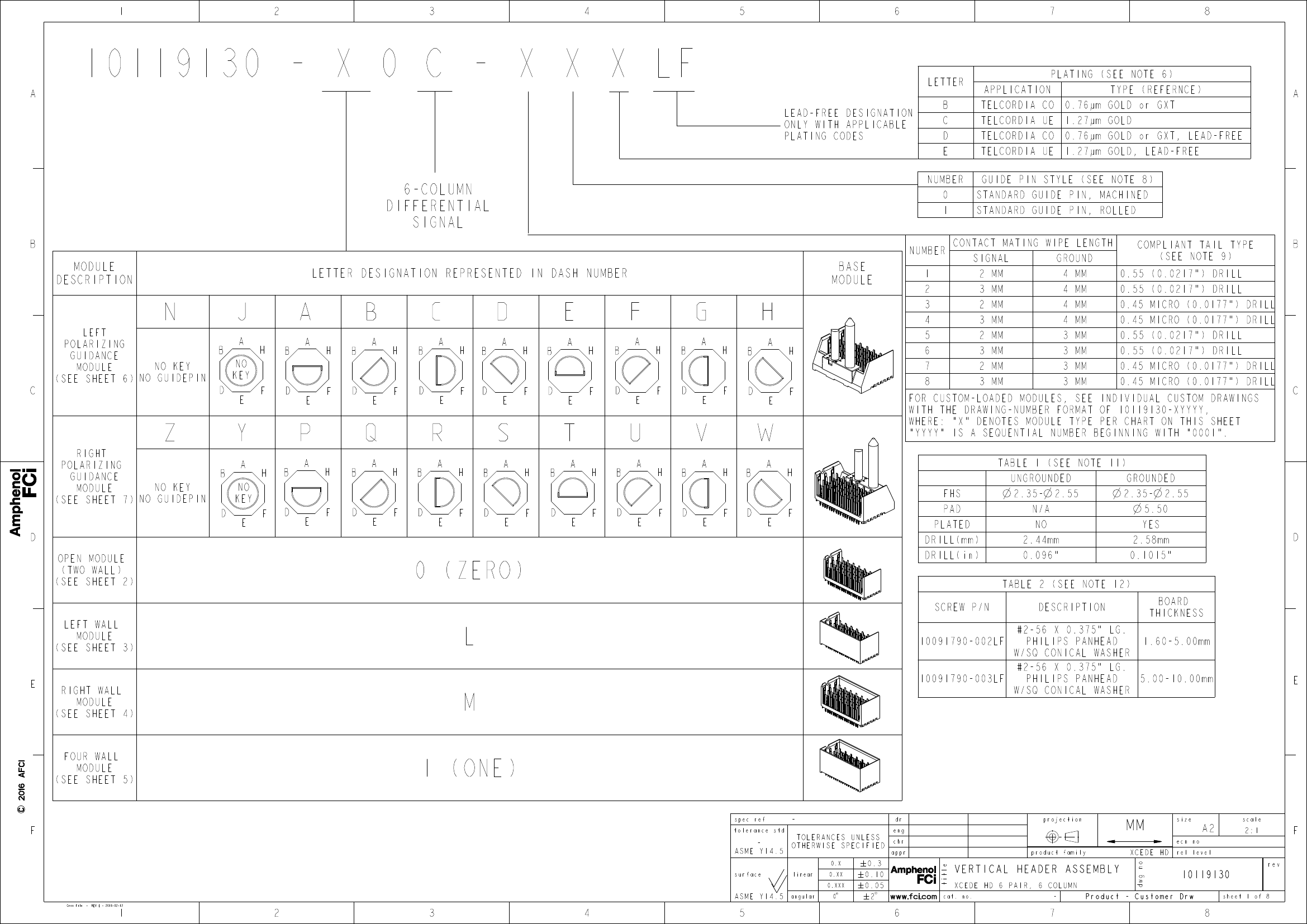

10119130-W0C-70DLF Overview

XCEDE HD RIGHT 2W 6PVH 6COL WK

10119130-W0C-70DLF Parametric

Parameter NameAttribute value
Connector usagebackplane
Connector typeHeaders, Male Pins and Blades
Connector styleXCede®, right rail
Number of pins-
Number of pins loadedall
spacing-
Number of rows-
Number of columns6
Installation typeThrough hole
TerminationPress fit
Contact layout (typical)36 signal pairs, 39 ground
characteristickey
Contact platingGold or Gold, GXT™
Contact plating thickness30.0µin(0.76µm)
colorblack
Rated current-
Material flammability ratingUL94 V-0
Operating temperature-
Rated voltage-

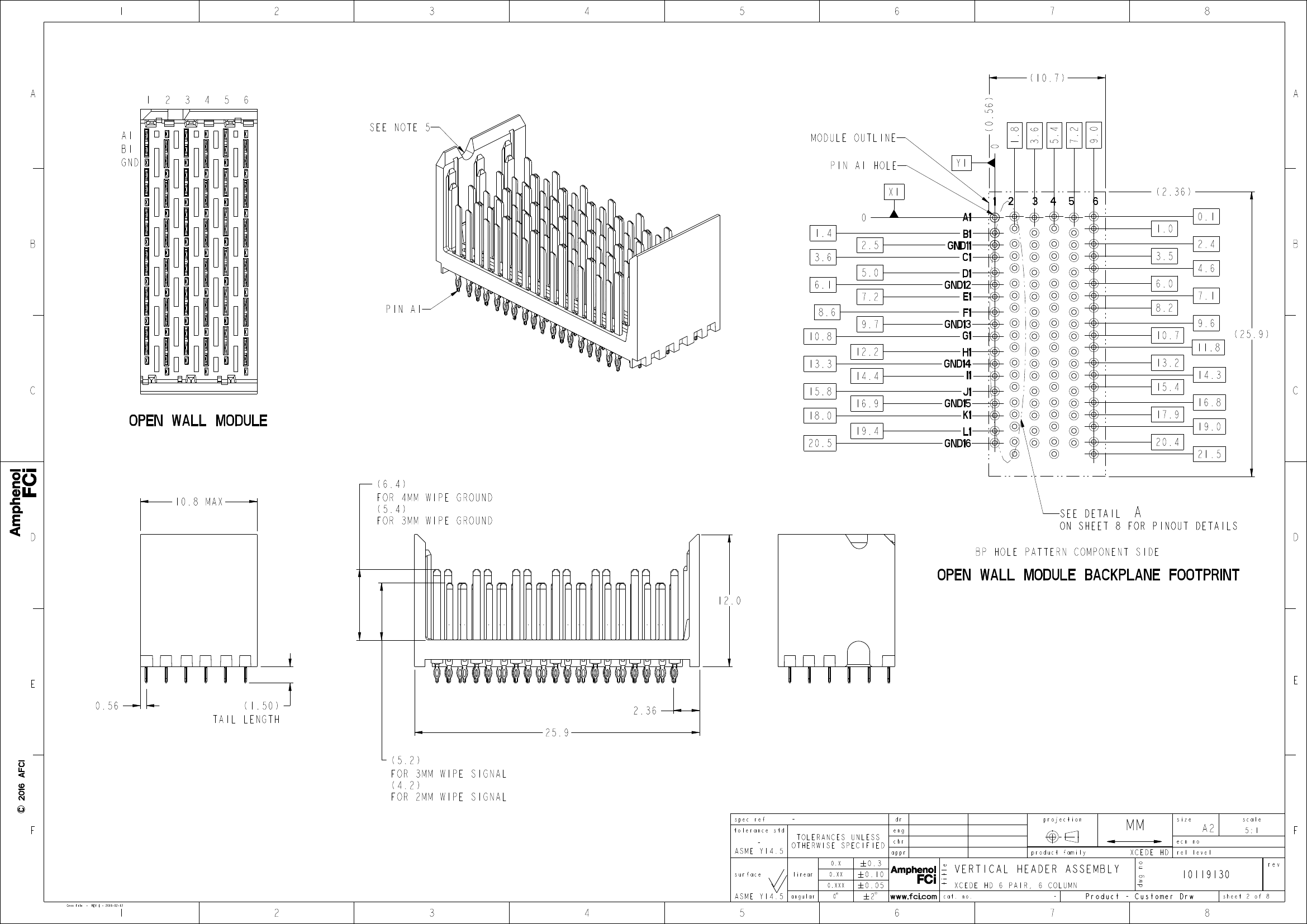

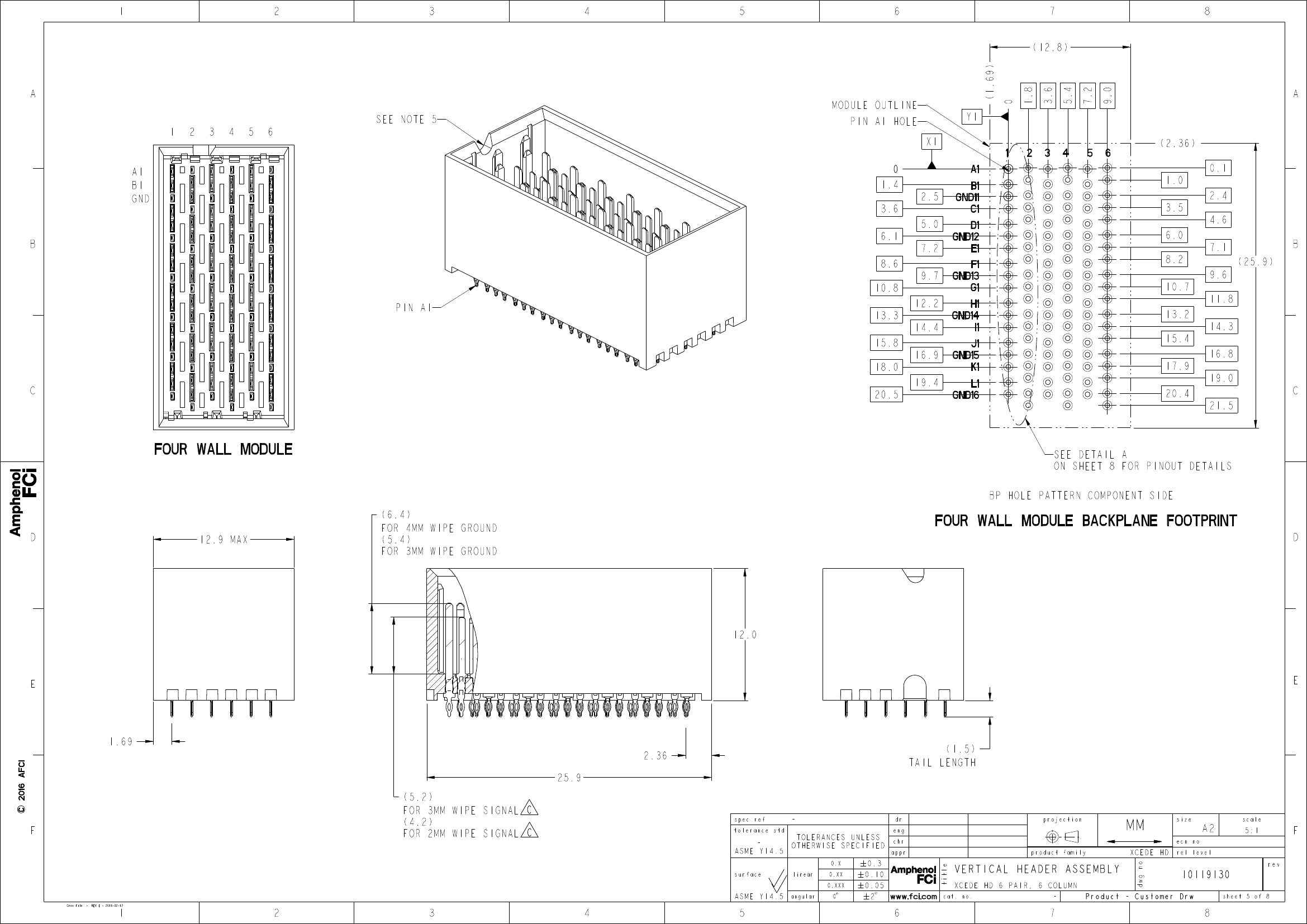

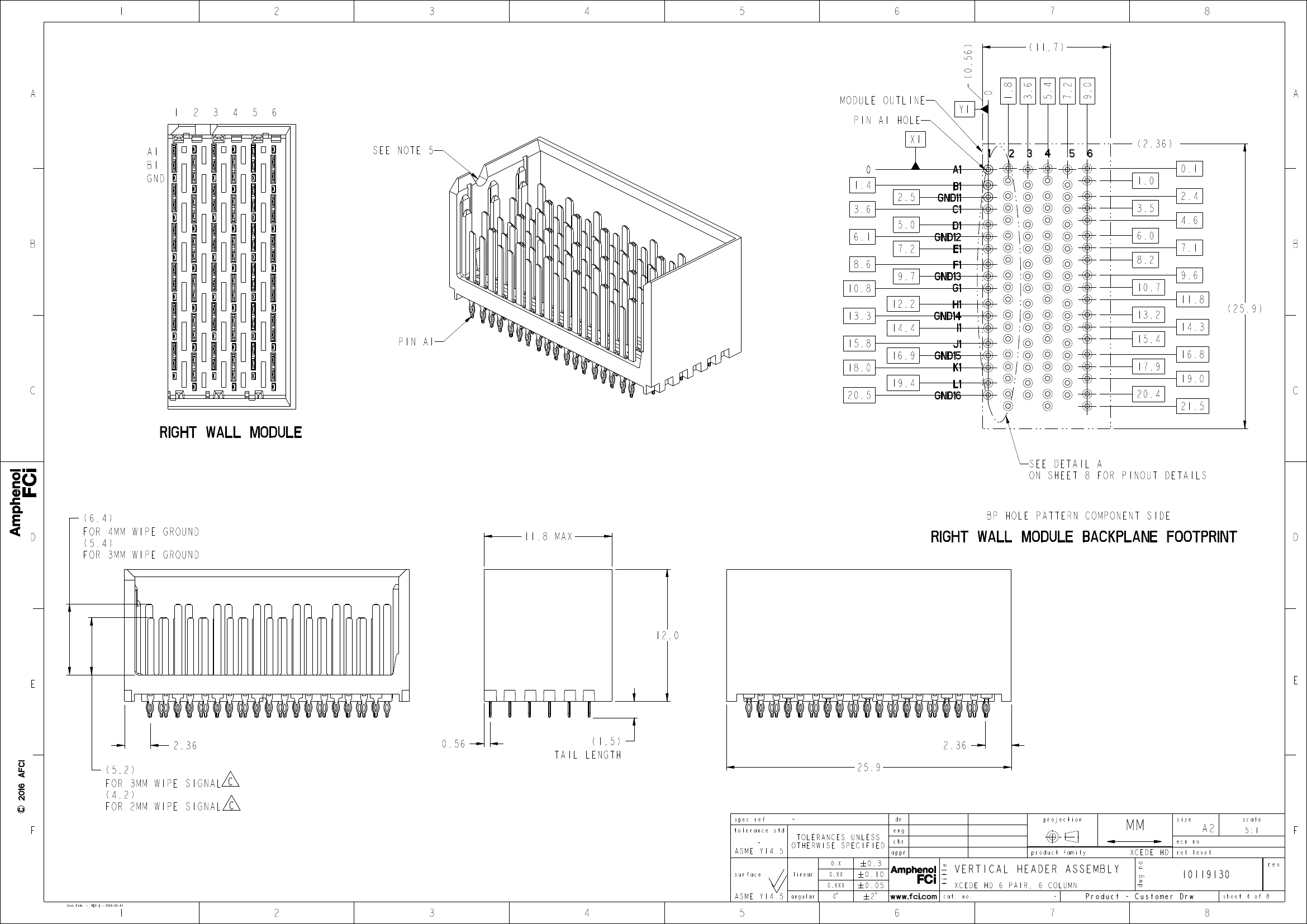

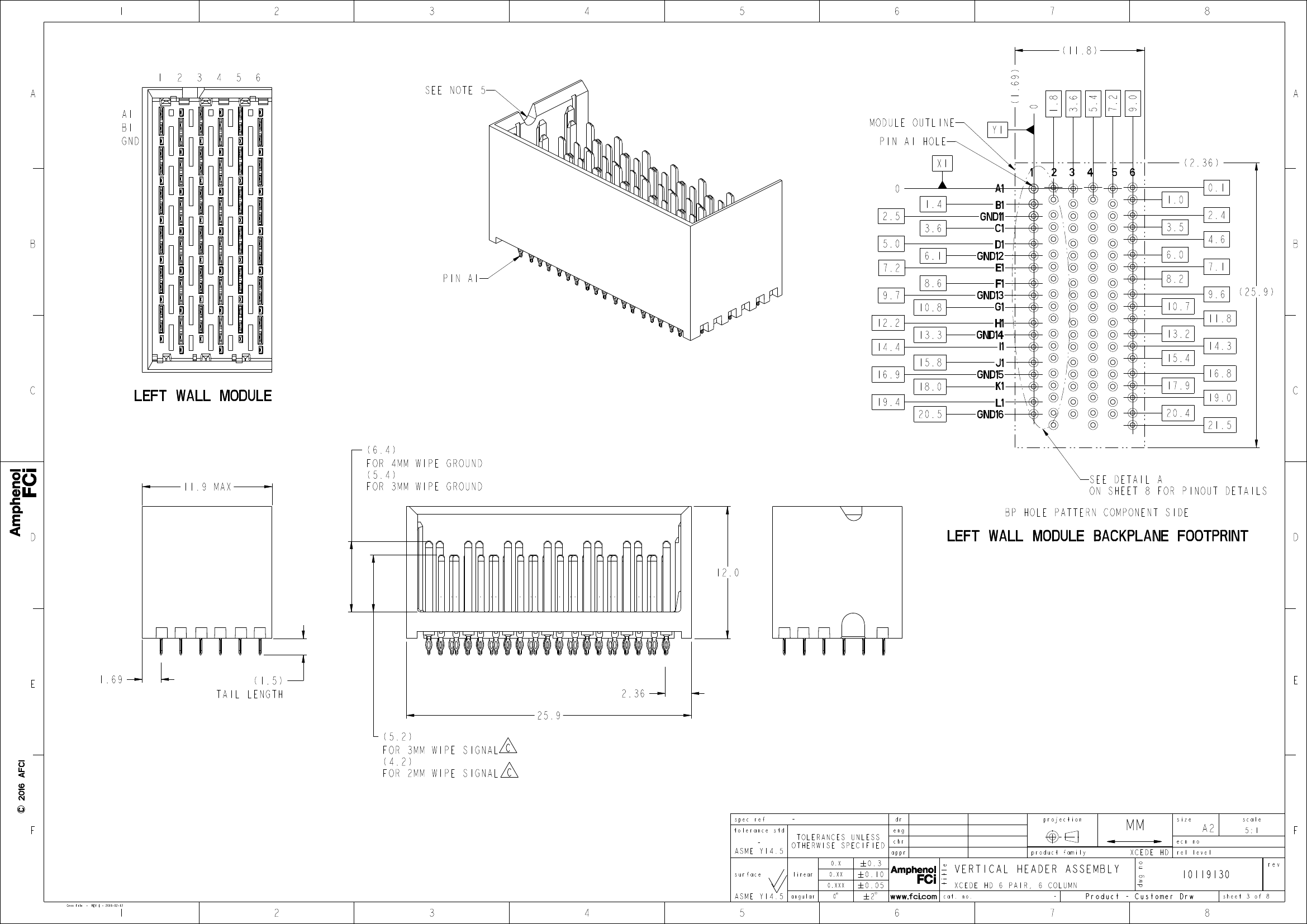

Marty Glass
Sandar Soe
-
Chen-Hong Tan
2012/02/09
2016/03/08
-
2016/03/17
ELX-S-17624-1
Released
C
PDS: Rev :C
STATUS:Released
Printed: Mar 17, 2016
