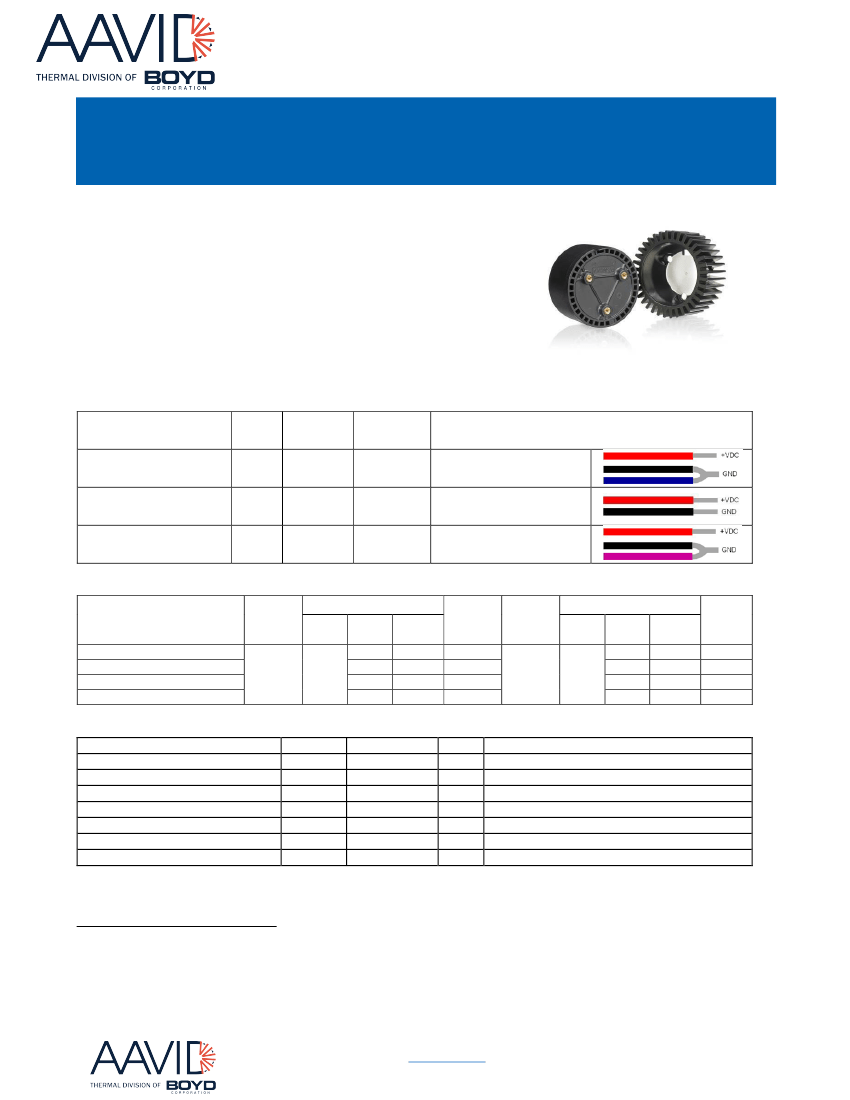

PRODUCT DATASHEET
SynJet MR16 Style Cooler 20W
SynJet cooling technology provides the most reliable
thermal management solution available. This LED cooler
has been developed by Aavid for cooling LED tracklights
styled after MR16 halogen fixtures.
Cools up to 20 W
4
L10 of 100K Hours at 60°C
Energy Efficient
5 Yr Warranty
Small Form Factor
Quiet Acoustics
®
Specifications
1
Thermal & Acoustic
SynJet Setting
2
Θs-a
2.0
3
TDP (W)
20
15
12
4
SPL (dBA)
30
19
16
5
Wire Connections
Red to +VDC
Black & Blue to Ground
Red to +VDC
Black only to Ground
Red to +VDC
Black & Purple to Ground
High Performance
Standard Performance
Silent Performance
2.65
3.25
Electrical
SynJet Setting
2
Voltage
(VDC)
+/- 10%
5
Current (mA)
Imin
20
Iavg
116
126
48
116
6
High Performance
Standard
Silent
PWM at 100% duty cycle
Ipeak
232
252
96
232
Pavg
(mW)
580
630
240
580
Voltag
e
(VDC)
+/- 10%
12
Current (mA)
Imin
10
Iavg
67
74
37
67
6
Ipeak
134
148
74
134
Pavg
(mW)
800
890
440
800
Environmental
All Settings
Operating Temperature
Storage Temperature
Storage Altitude
Operating Relative Humidity
Weight
Reliability
Regulatory Compliance
Min
-40
-50
5
Max
70
85
15K
95
120
100K
Units
C
C
m
%
g
hrs
Conditions
Air temperature surrounding cooler
Air temperature surrounding cooler
Above sea level
Non-condensing
SynJet with heatsink
L10 @ 60C
RoHS, UL, FCC Part 15 Class B, CE
1
2
All values are typical at 25ºC unless otherwise stated.
The Level Select model should be used for discrete performance settings. Follow the instructions in the Product Design Guide for adjusting settings.
3
Thermal resistance values are given as reference only and are measured in free air without airflow obstructions. Thermal resistance is measured from the bottom
middle of the heat sink, with a heat source at least 1cm
2
, to ambient air measured at the inlet to the SynJet. Actual thermal performance may vary by application
and final product design should be tested to assure proper thermal performance.
4
Thermal Design Power is based on a 30ºC temperature rise of heat sink mounting surface above ambient temperature around cooler.
5
Sound Pressure Level is measured at 1 meter distance per ISO 7779.
6
The SynJet has a time varying current. The current waveform is sinusoidal and the average current (Iavg) is used to calculate the average power consumption
(Pavg) at nominal input voltage (VDC). See the Electrical section in the Product Design Guide for a detailed explanation.
1 Aavid Circle
Laconia, NH
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000104
Revision
E02
March 2018
PRODUCT DATASHEET

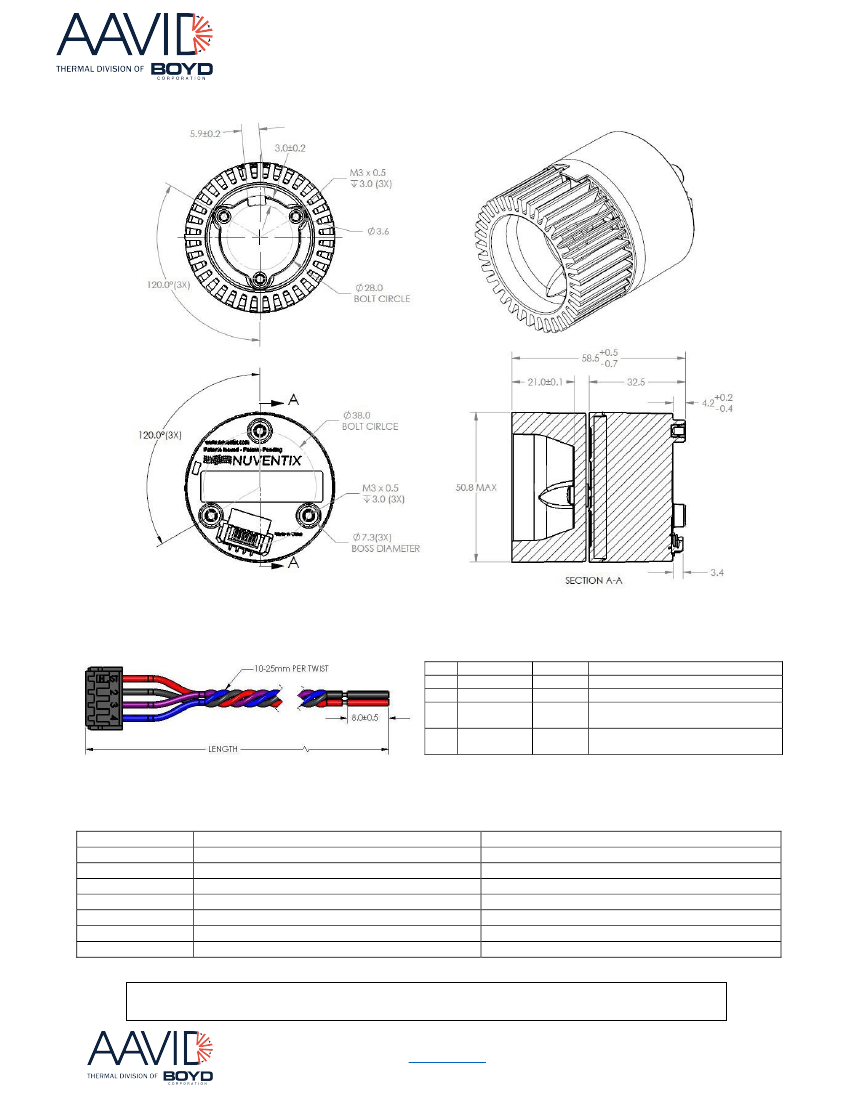

Mechanical
SynJet Cooling Solution shown with Configurable heat sink
All dimensions are nominal and in mm unless otherwise stated. See product drawings for more detail.
SynJet Wire Harness
Connector Pinout
Pin
1
2
3
4
Wire Color
Red
Black
Purple
Blue
Symbol
+VDC
GND
CTRL2
CTRL1
Description
5 V or 12 V depending on model
Ground
Input for Level Select model
Status signal for PWM model
Input for Level Select model
PWM input for PWM model
IMPORTANT: SynJets should be completely wired to the power supply before the power supply is energized. The power supply should be
turned off before the SynJet Cooler is disconnected. SynJet Coolers are not designed for “hot swap” or “hot plug” applications.
Part Numbers
Part Number
SM16S-CM005-012
SM16S-CM005-010
SM16S-CM012-011
SM16S-CM012-012
HM16S-CALBL-001
WALLS-C4150-001
WALLS-C4600-001
Description
SynJet, ZFlow 50, Level Select, 5V
SynJet, ZFlow 50, PWM, 5V
SynJet, ZFlow 50, Level Select, 12V
SynJet, ZFlow 50, PWM, 12V
Heatsink, 20W, MR16 Style, Configurable, Black
Wire Harness, 4-Wire, 150 mm Length
Wire Harness, 4-Wire, 600 mm Length
Notes
Hard wired performance settings
Use PWM input to control performance setting
Hard wired performance settings
Use PWM input to control performance setting
Contact sales for other heatsink options
Contact sales for other lengths
Contact sales for other lengths
Aavid reserves the right to make changes to the products or information contained herein without notice. No liability is
assumed as a result of their use or applications. For additional information, please contact Aavid directly.
1 Aavid Circle
Laconia, NH
Phone: 1.855.322.2843
www.aavid.com
MKTG-DOC-000104
Revision
E02
March 2018
