LTV4N25 Overview

GENERAL PURPOSE TYPE PHOTOCOUPLER

Preview

Download Datasheet

View All

General Purpose Type

Photocoupler

LTV-4N25 Series/LTV-4N26 Series

LTV-4N27 Series/LTV-4N28 Series

4N25 Series/4N26 Series/4N27 Series/4N28 Series

Features

Response Time

(tr : TYP,3 s at V

=10V, I

=2mA, R

=100 )

UL approved (No. E113898)

TUV approved (No.R9653630)

CSA approved (No. CA91533-1)

FIMKO approved (No. 193422)

NEMKO approved (No. P96103013)

DEMKO approved (No. 303985)

SEMKO approved (No. 9646047/01-30)

VDE approved (No. 094722 )

Options available :

-Leads with 0.4"(10.16mm)spacing (M Type)

-Leads bends for surface mounting(S Type)

-Tape and Reel of Type I for SMD(Add"-TA"Suffix)

-Tape and Reel of Type II for SMD(Add"-TA1"Suffix)

-VDE 0884 approvals (Add"-V"Suffix)

Package Dimensions

Applications

1. I/O interfaces for computers.

2. System appliances, measuring instruments.

3. Signal transmission between circuits of different poten-

tials and impedances.

Note:

1.Year date code.

2. 2-digit work week.

3. Factory code shall be marked (Z : Taiwan, Y : Thailand).

4. Model No. : LTV4N25 ; LTV4N26 ; LTV4N27 ; LTV4N28

; 4N25 ; 4N26 ; 4N27 ; 4N28.

5. All dimensions are in millimeters (inches).

6. Tolerance is 0.25mm (.010 ) unless otherwise noted.

7. Specifications are subject to change without notice.

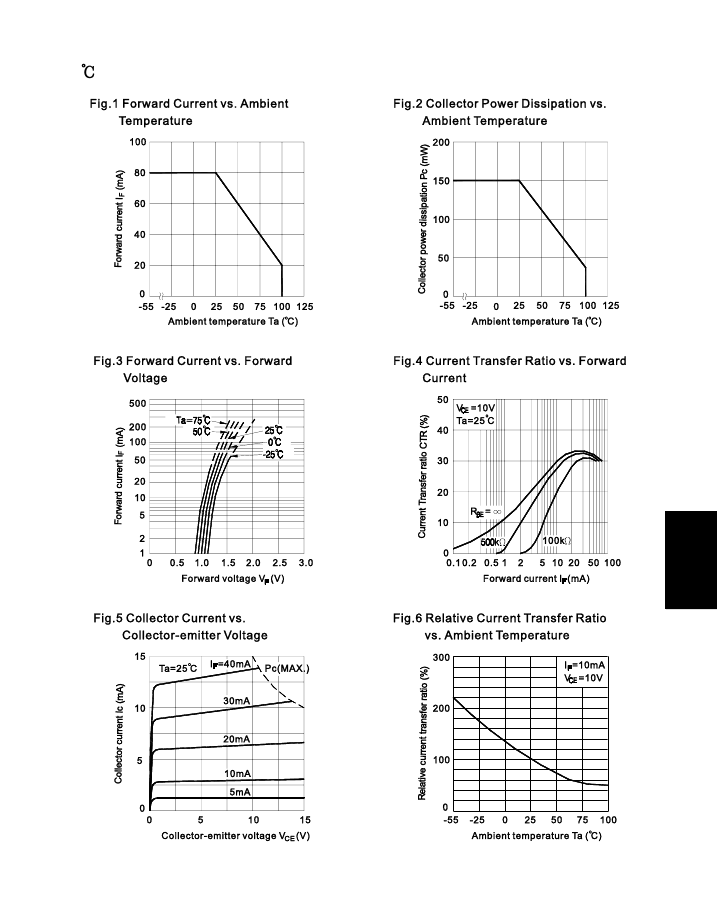

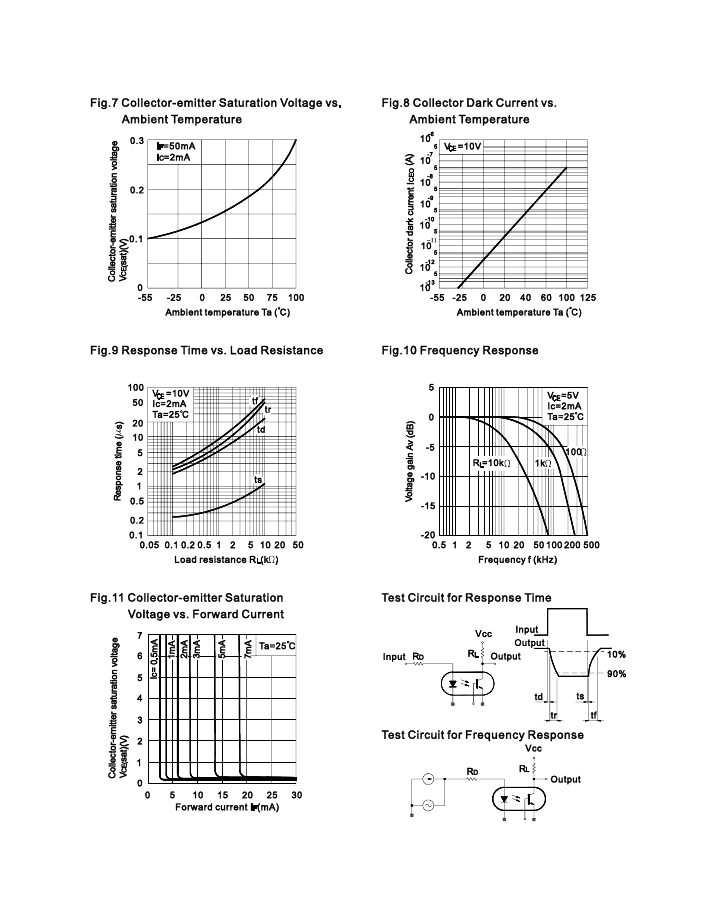

12-28
