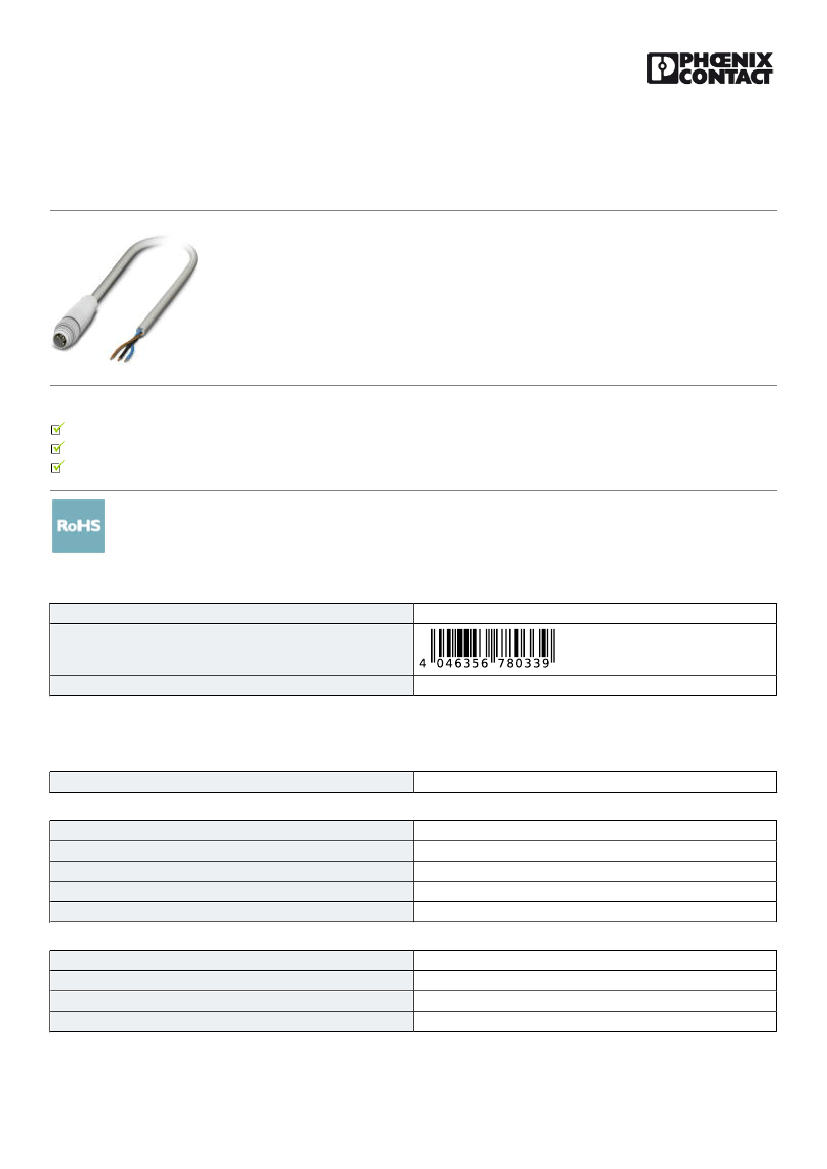

Sensor/actuator cable - SAC-3P-M 8MS/ 1,5-600 FB - 1406469
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/actuator cable, 3-position, PP-EPDM halogen-free, gray RAL 7035, Plug straight M8, on free cable
end, cable length: 1.5 m, Hygienic design, with plastic knurl
Your advantages
Easy and safe: 100% electrically tested plug-in components
Easy to clean, thanks to the special hygienic design
Contamination can be detected quickly – thanks to the light color
Key Commercial Data
Packing unit
GTIN
GTIN
4046356780339
1 pc
Technical data
Dimensions
Length of cable
1.5 m
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 105 °C (Plug / socket)
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
Number of positions
4A
48 V AC
60 V DC
3
10/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1406469
Sensor/actuator cable - SAC-3P-M 8MS/ 1,5-600 FB - 1406469
Technical data
General
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Overvoltage category
Degree of pollution
Insertion/withdrawal cycles
Torque
≥ 100 MΩ
A - standard
M8 connector IEC 61076-2-104
Material conformance FDA 21 CFR 177.2600
No
Unwired
II
3
≥ 100
0.2 Nm (M8 connectors)
Material
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
CuSn
Ni/Au
PP
PP
Polypropylene
Standards and Regulations
Standard designation
Standards/regulations
Standard designation
Standards/regulations
M8 connector
IEC 61076-2-104
Material conformance
FDA 21 CFR 177.2600
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
Halogen-free PP gray
600
Li9Y14Y
3x 0.25 mm² (Signal line)
24
32x 0.10 mm
1.17 mm ±0.02 mm (Signal line)
≥ 0.21 mm (Core insulation)
brown, blue, black
3 wires, twisted
40 mm
gray RAL 7035
approx. 0.8 mm
4.2 mm ±0.15 mm
5xD
10 x D
4000000
10/30/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1406469
Sensor/actuator cable - SAC-3P-M 8MS/ 1,5-600 FB - 1406469
Technical data
Cable
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Torsion force
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
10 x D
10 m
3 m/s
10 m/s²
± 270 °/m (4,000,000 torsion cycles, max. 25 torsion cycles/min)
19 kg/km
PP-EPDM
PP
Bare Cu litz wires
≥ 1 GΩ*km (at 20 °C)
78 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
FDA compliant according to FDA 21 CFR 177.2600
highly flexible
Flexible cable conduit capable
Halogen-free
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
Other resistance
Ambient temperature (operation)
Resistant to cold bending and cold impacts According to DIN EN
60811-1-4 (-40 °C)
-40 °C ... 105 °C (cable, fixed installation)
-25 °C ... 105 °C (cable, flexible installation)
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

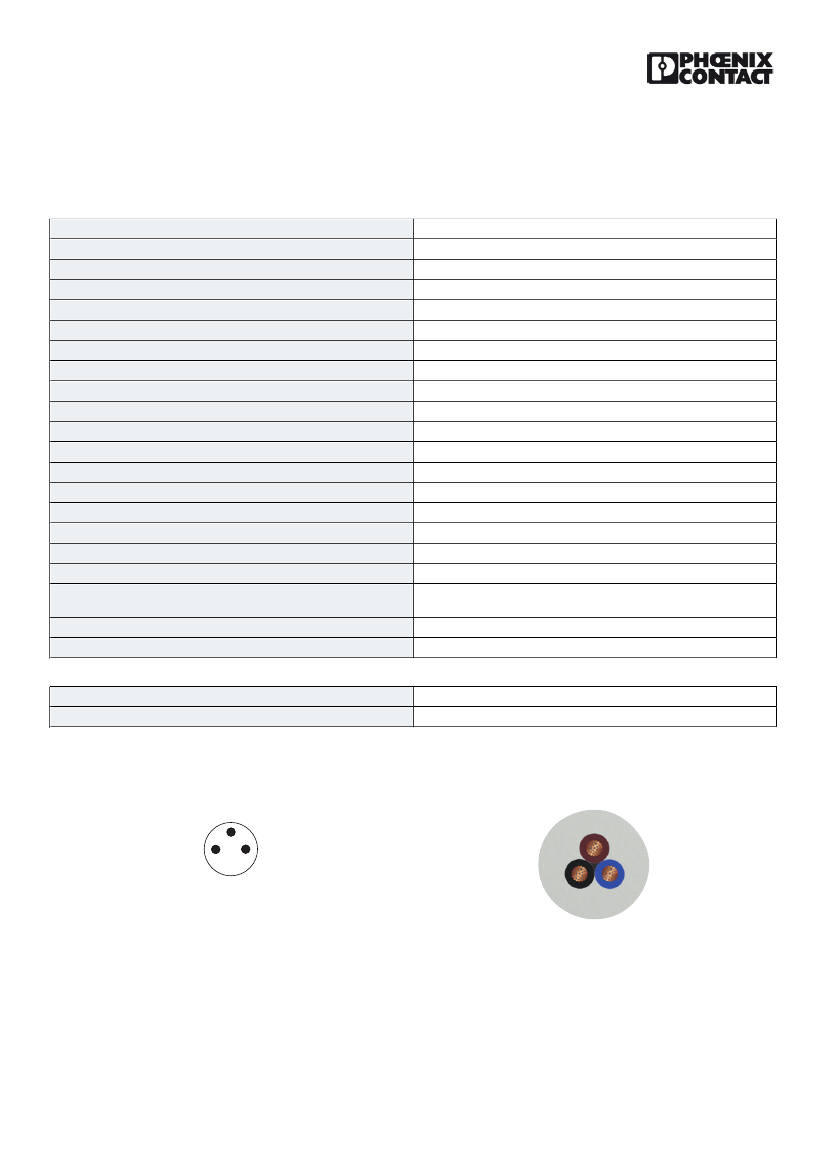

Drawings
Schematic diagram
4
Cable cross section
1
3
M8 plug pin assignment, 3-pos.
Halogen-free PP gray [600]
10/30/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1406469
Sensor/actuator cable - SAC-3P-M 8MS/ 1,5-600 FB - 1406469
Dimensional drawing
Circuit diagram
38,7
1
4
BN
BK
BU
M8x1
Ø10
9,6
3
M8 x 1 male plug, straight version
Contact assignment of the M8 plug
