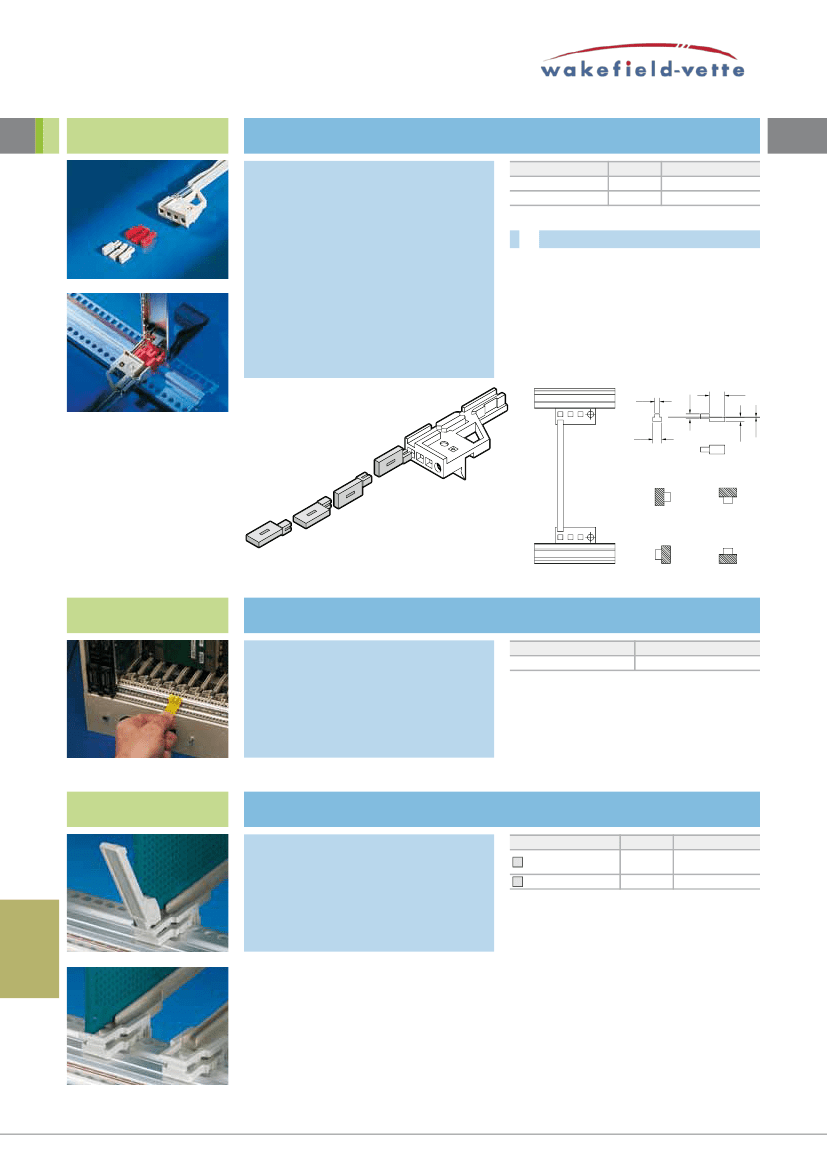

COMPONENTS / ACCESSORIES
keyinG/pcB eJectors
keys
Keys are used for coding of board-type plug-in
units and prevent the use of assemblies in
incorrect slots. The keys are inserted into the
chambers of the keyable guide rails and the
injector/extractor handles, types IV, IVs and VII
(4 positions are possible). This produces
64 keying combinations per guide rail.
When keying the top and bottom guide rail,
4096 potential combinations are possible.
standards:
IEEE 1101.10, IEC 60 297-5-104
material:
Plastic, PBTP, base material to UL 94-V0
Color
grey
red
Packs of
100
100
order no.
3684.325
3684.326
+
accessories:
Keying tool,
see below.
2.4
2.4
7.6
4.4
Pos. 1
Pos. 2
Pos. 3
Pos. 4
keying tool
For simple assembly of keys. Up to 3 coding
keys may be fitted simultaneously. An integral
alignment pin makes positioning easier.
material:
Polycarbonate, base material to UL 94-V0
Packs of
1
order no.
3687.956
pcB ejector/retainer
The two-piece PCB ejector is used for securing
and extracting PCBs without front panels.
The base section may also be used separately
for board retention only.
material:
Polycarbonate, base material to UL 94-V0
Packs of
1
PCB ejector/retainer
2
PCB retainer
order no.
3687.014
3687.052
10
10
2.1
0.1
