BZT52HC18WF-7 Overview

DIODE ZENER 18V 375MW SOD123F

BZT52HC18WF-7 Parametric

Parameter Name	Attribute value
Voltage - Zener (nominal) (Vz)	18V
Tolerance	±6.39%
Power - Max	375mW
Impedance (max) (Zzt)	20 Ohms
Current at different Vr - Reverse leakage current	50nA @ 12.6V
Voltage at different If - Forward (Vf	900mV @ 10mA
Operating temperature	-65°C ~ 150°C
Installation type	surface mount
Package/casing	SOD-123F
Supplier device packaging	SOD-123F

Preview

Download Datasheet

View All

BZT52HC2V4WF - BZT52HC47WF

SURFACE MOUNT ZENER DIODE

Features



Flat Lead Package Design for Low Profile and High Power

Dissipation

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data



Case: SOD123F (Type B)

Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Connections: Cathode Band

Terminals: Finish - Matte Tin Annealed over Copper Alloy

Leadframe. Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.015 grams (Approximate)

ADVANCE INFORMATION

NEW PRODUCT

SOD123F (Type B)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

(Type Number)-7*

Notes:

Compliance

AEC-Q101

Case

SOD123F (Type B)

Packaging

3,000/Tape & Reel

*Add “-7” to the appropriate type number in Electrical Characteristics Table, example: 6.2V Zener = BZT52HC6V2WF-7.

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

XX = Product Type Marking Code

(See Electrical Characteristics Table)

YM = Date Code Marking

Y = Year (ex: C = 2015)

M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

Jan

2015

Feb

Mar

2016

Apr

May

2017

Jun

2018

Jul

Aug

2019

Sep

2020

Oct

Nov

2021

Dec

BZT52HC2V4WF - BZT52HC47WF

Document number: DS36891 Rev. 4 - 2

1 of 5

www.diodes.com

April 2016

BZT52HC2V4WF - BZT52HC47WF

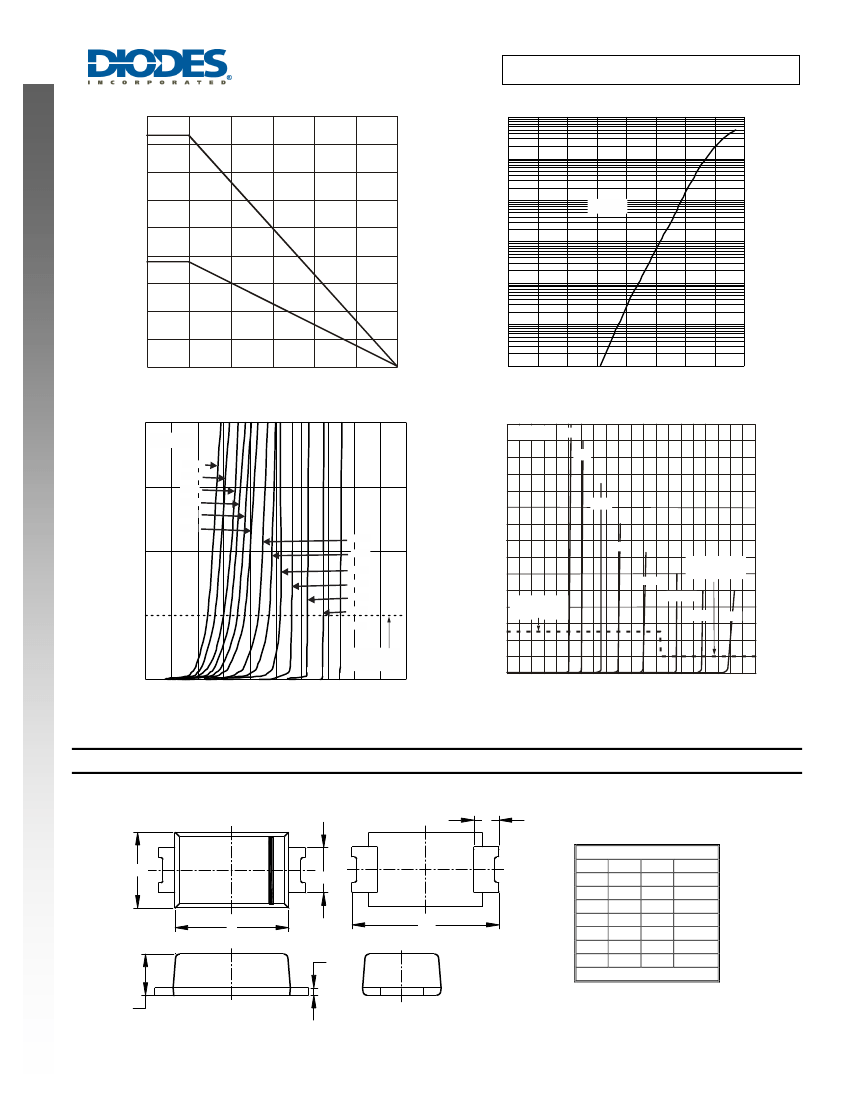

Suggested Pad Layout

Please see http://www.diodes.com/package-outlines.html for the latest version.

ADVANCE INFORMATION

NEW PRODUCT

Dimensions

Value

(in mm)

1.90

1.00

3.90

1.50
