CMKD7000
SURFACE MOUNT
DUAL PAIR, IN-SERIES
ULTRA-HIGH SPEED SILICON
SWITCHING DIODES
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMKD7000
consists of two pair of electrically isolated, series
configured ultra-high speed switching diodes in an
ULTRAmini™ SOT-363 surface mount package,
designed for ESD protection and high speed switching
applications.
MARKING CODE: K00

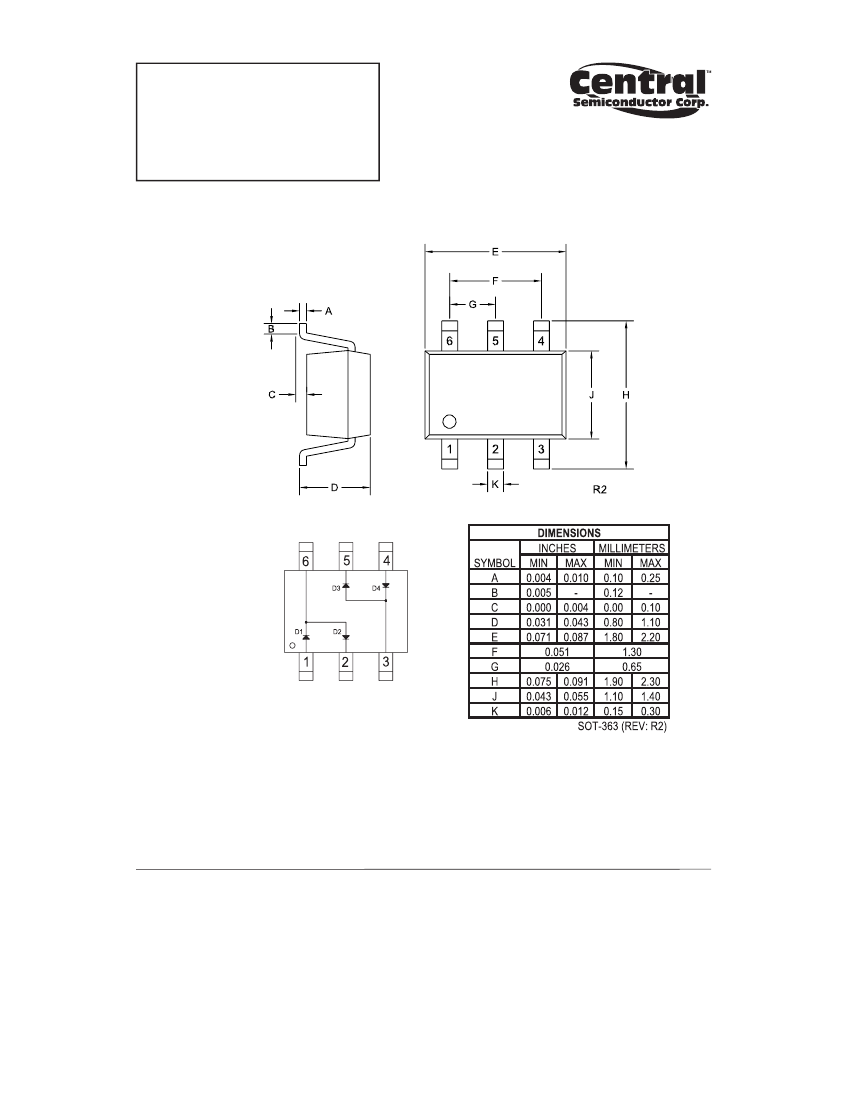

SOT-363 CASE
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Average Forward Current
Peak Forward Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VRRM
IO
IFM
PD
TJ, Tstg
Θ
JA
100
200
500
250
-65 to +150
500
UNITS
V
mA
mA
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS
MIN
TYP
MAX
IR
IR
IR
BVR
VF
VF
VF
CT
trr
VR=50V
VR=50V, TA=125°C
VR=100V
IR=100μA
IF=1.0mA
IF=10mA
IF=100mA
VR=0, f=1.0MHz
IR=IF=10mA, RL=100Ω, Rec. to 1.0mA
100
0.55
0.67
0.75
1.5
2.0
0.70
0.82
1.10
2.6
4.0
300
100
500
UNITS
nA
μA
nA
V
V
V
V
pF
ns
R4 (13-January 2010)
OUTSTANDING SUPPORT AND SUPERIOR SERVICES
PRODUCT SUPPORT
Central’s operations team provides the highest level of support to insure product is delivered on-time.
• Supply management (Customer portals)
• Custom bar coding for shipments
• Inventory bonding
• Custom product packing
• Consolidated shipping options
DESIGNER SUPPORT/SERVICES
Central’s applications engineering team is ready to discuss your design challenges. Just ask.
• Free quick ship samples (2
nd
day air)
• Special wafer diffusions
• Online technical data and parametric search
• PbSn plating options
• SPICE models
• Package details
• Custom electrical curves
• Application notes
• Environmental regulation compliance
• Application and design sample kits
• Customer specific screening
• Custom product and package development
• Up-screening capabilities
