PACKAGING SPECIFICATION
TABLE OF CONTENTS
SECTION
1.0
SCOPE
2.0
PURPOSE
..
3.0
GENERAL
4.0
PACKAGING OF STANDARD HEADERS
... .
5.0
PACKAGING OF LOW-PROFILE HEADERS ..... .
6.0
LABELING
..
.. ...
PAGE
.2
.2
.
2
.3
.4
5
REVISION: ECR/ECN INFORMATION: TITLE:
C
EC No:
IPG2013-0094
DATE:
18-Sep-12
TUBE PACKAGING
FOR PICOFLEX SMT
HEADERS
CHECKED BY:
SHEET No.
1
of
5
APPROVED BY:
DOCUMENT NUMBER:
CREATED / REVISED BY:
PK-90814-001
D.BYRNES
D. Waszkiewicz
J. Dennehy
TEMPLATE FILENAME: PACKAGING_SPEC[SIZE_A4](V.1).DOC
PACKAGING SPECIFICATION
1.0
SCOPE
This standard specifies the general requirements for the tube packaging of
Picoflex SMT Header Assemblies, series 90814/93405.
2.0
PURPOSE
The purpose of this specification is to assure that all 90814/93405 product
shipped from Molex arrives damage free and in a manner that allows ease of
handling, storage and distribution.
3.0
GENERAL
The shipping weight for a box from Molex should not exceed 15 kg.
The recommended carton closure is tape.
Bubble wrap may be used to fill up excess space in a carton if required.
REVISION: ECR/ECN INFORMATION: TITLE:
C
EC No:
IPG2013-0094
DATE:
18-Sep-12
TUBE PACKAGING
FOR PICOFLEX SMT
HEADERS
CHECKED BY:
SHEET No.
2
of
5
APPROVED BY:
DOCUMENT NUMBER:
CREATED / REVISED BY:
PK-90814-001
D.BYRNES
D. Waszkiewicz
J. Dennehy
TEMPLATE FILENAME: PACKAGING_SPEC[SIZE_A4](V.1).DOC
PACKAGING SPECIFICATION
4.0
PACKAGING OF STANDARD HEADERS
The Standard Headers are packaged in transparent antistatic u.P.V.C. tubes,
part no. 99024-0053.
The tubes are closed on each end with tape stops, part no. 96717-0002. The
tape stops are not to be placed on the face where the tube part number is
printed.
The full tubes are placed in a cardboard carton, part no. 91687-0012, with the
PCB pegs on the header facing upwards. The carton is closed with tape.
See Table 1 for packaging quantities of each circuit size.
See Table 2 for Bill Of Materials for Standard Headers.
TABLE 1
Circuit
Size
4
6
8
10
12
14
16
18
20
22
24
26
Quantity of
Headers per Tube
60
46
38
32
28
25
22
20
18
16
15
14
Quantity of
Headers per Box
6,300
4,830
3,990
3,360
2,940
2,625
2,310
2,100
1,890
1,680
1,575
1,470
Quantity of
Tubes per Box
105
TABLE 2
ITEM
DESCRIPTION
1
2
3
4
CARTON
TUBE
TAPE STOPS
HEADER
PART NUMBER
91687-0012
99024-0053
96717-0002
90814/93405-*0**/ -*3**
QUANTITY
1
105
210
See TABLE 1
SHEET No.
REVISION: ECR/ECN INFORMATION: TITLE:
C
EC No:
IPG2013-0094
DATE:
18-Sep-12
TUBE PACKAGING
FOR PICOFLEX SMT
HEADERS
CHECKED BY:
3
of
5
APPROVED BY:
DOCUMENT NUMBER:
CREATED / REVISED BY:
PK-90814-001
D.BYRNES
D. Waszkiewicz
J. Dennehy
TEMPLATE FILENAME: PACKAGING_SPEC[SIZE_A4](V.1).DOC
PACKAGING SPECIFICATION
5.0
PACKAGING OF LOW-PROFILE HEADERS
The Low-Profile Headers are packaged in transparent antistatic u.P.V.C.
tubes, part no. 99024-0048.
The tubes are closed on each end with tape stops, part no. 96717-0002. The
tape stops are not to be placed on the face where the tube part number is
printed.
The full tubes are placed in a cardboard carton, part no. 91687-0012, with the
PCB pegs on the header facing upwards. The carton is closed with tape.
See Table 3 for packaging quantities of each circuit size.
See Table 4 for Bill Of Materials for Low-Profile Headers.
TABLE 3
Circuit
Size
4
6
8
10
12
14
16
18
20
22
24
26
Quantity of
Headers per Tube
60
46
38
32
28
25
22
20
18
16
15
14
Quantity of
Headers per Box
8,640
6,624
5,472
4,608
4,032
3,600
3,168
2,880
2,592
2,304
2,160
2,016
Quantity of
Tubes per Box
144
TABLE 4
DESCRIPTION
ITEM
1
2
3
4
CARTON
TUBE
TAPE STOPS
HEADER
PART NUMBER
91687-0012
99024-0048
96717-0002
90814/93405-*6**/ -8**
QUANTITY
1
144
288
See TABLE 3
SHEET No.
REVISION: ECR/ECN INFORMATION: TITLE:
C
EC No:
IPG2013-0094
DATE:
18-Sep-12
TUBE PACKAGING
FOR PICOFLEX SMT
HEADERS
CHECKED BY:
4
of
5
APPROVED BY:
DOCUMENT NUMBER:
CREATED / REVISED BY:
PK-90814-001
D.BYRNES
D. Waszkiewicz
J. Dennehy
TEMPLATE FILENAME: PACKAGING_SPEC[SIZE_A4](V.1).DOC
PACKAGING SPECIFICATION
6.0
LABELLING

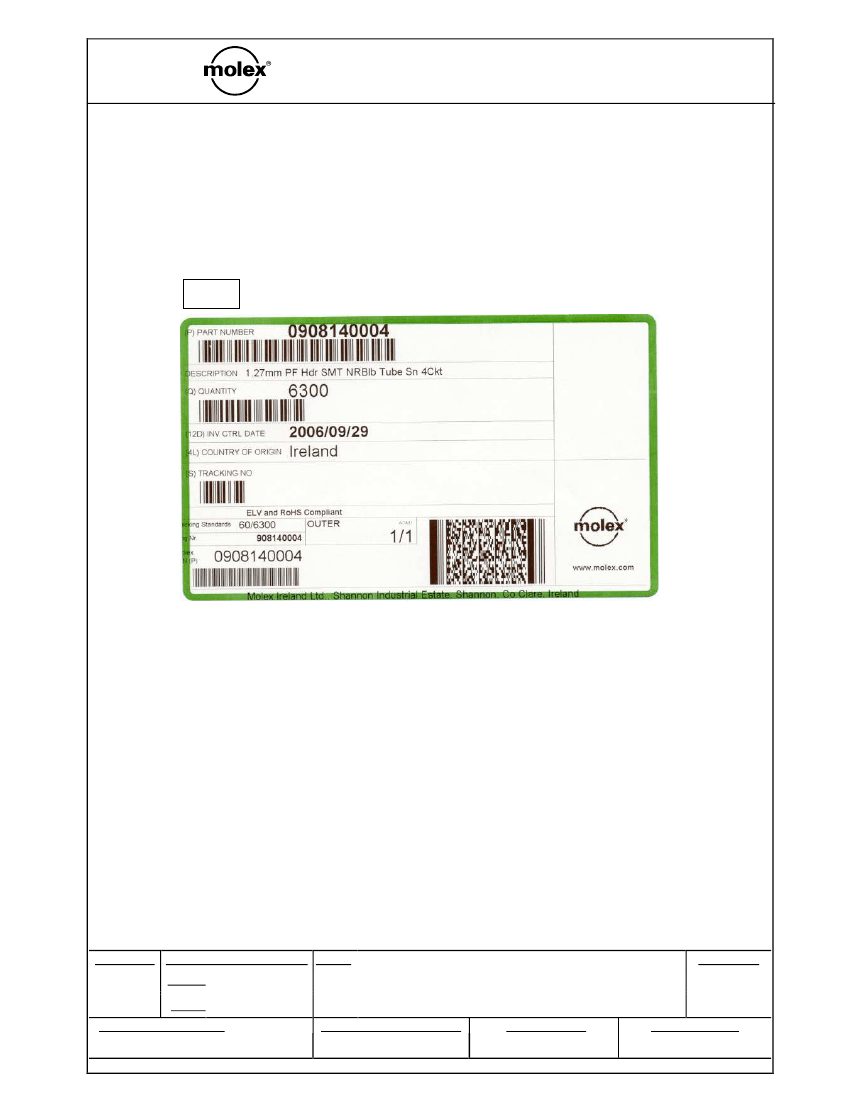

The labels used are standard Molex Ireland labels and measure 127.0 x 76.2
mm, see example in Fig.1.
The label is placed on the carton.
Fig.1
REVISION: ECR/ECN INFORMATION: TITLE:
C
EC No:
IPG2013-0094
DATE:
18-Sep-12
TUBE PACKAGING
FOR PICOFLEX SMT
HEADERS
CHECKED BY:
SHEET No.
5
of
5
APPROVED BY:
DOCUMENT NUMBER:
CREATED / REVISED BY:
PK-90814-001
D.BYRNES
D. Waszkiewicz
J. Dennehy
TEMPLATE FILENAME: PACKAGING_SPEC[SIZE_A4](V.1).DOC
