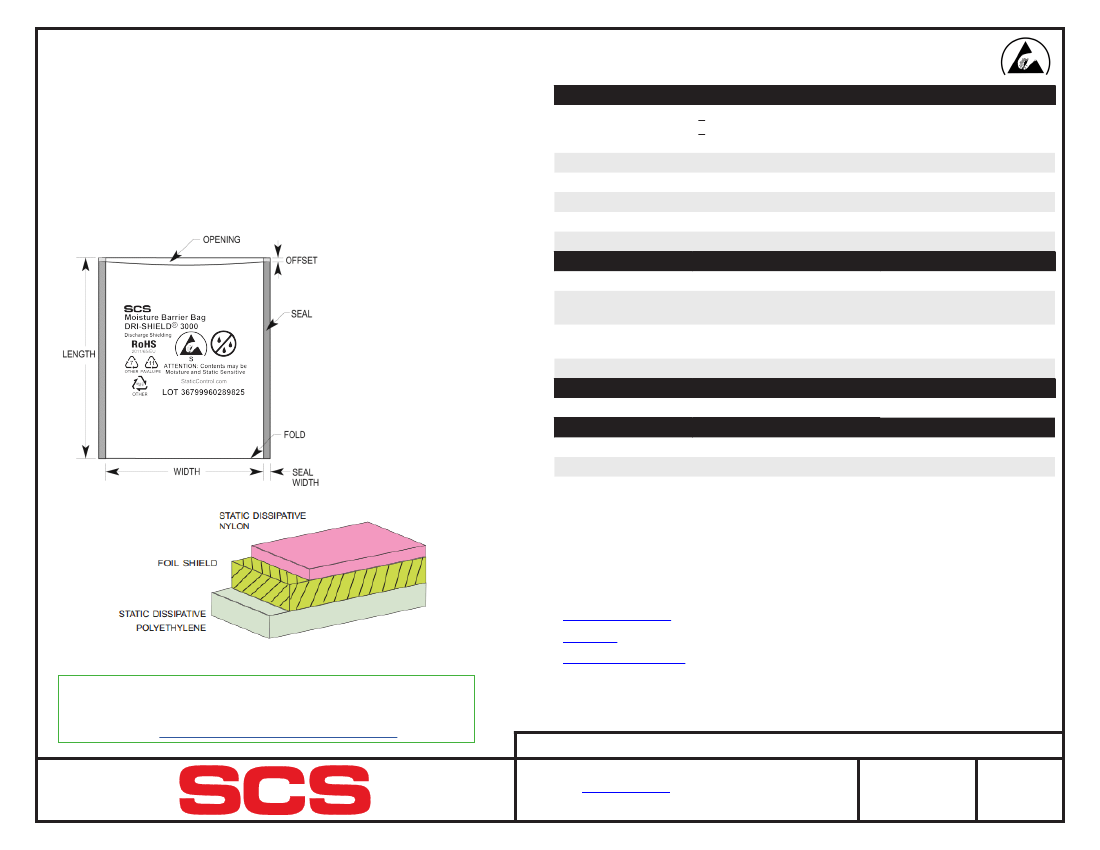

Moisture Barrier Bag Dri-Shield
®
3000
This foil moisture barrier bag provides protection for ESD sensitive and
moisture sensitive electronics, typically SMT (Surface Mount Technology)
items. Best practice is to use with Desiccant and a Humidity Indicator Card.
A nylon layer helps to strengthen the bag. The bags are heat sealable and
suitable for vacuum packaging. Bags are printed with ESD protective and
moisture sensitive warning symbols, and a lot code for traceability.
SCS Moisture Barrier Bags Dri-Shield
®
3000 are manufactured from a laminate
of nylon, foil, and polyethylene. The metal layer provides discharge shielding
and minimizes the penetration of electric fields and electrostatic discharges.
Open Top Bag
ZipTop Bag
Meets ANSI/ESD S20.20, Packaging standard ANSI/ESD S541,
Static Control Bag ANSI/ESD S11.4 Level 1, and IPC/JEDEC J-STD-033.
Physical
Moisture Vapor
Transmission Rate
(MVTR)
Typical Value
Testing Method
< 0.0003 grams/100 sq. in./24 hrs ASTM F1249
< 0.002 grams/100 sq. in./24hrs
ASTM F392 condition E and
ASTM F2149
3800 PSI, 26 MPa
16 lbs, 71 N
15 lbs, 66 N
6 mils, 0.006" +/-10%
Pass
Typical Value
<10 nJ
1 x 10
4
to < 1 x 10
11
ohms
1 x 10
4
to < 1 x 10
11
ohms
45 dB
Typical Value
Not Detected
Typical Value
400°F, 204°C
0.6 – 4.5 seconds
30 – 70 PSI, 206 – 482 KPa
Tensile Strength
Puncture Resistance
Seal Strength
Thickness
Marking Adhesion
Electrical
ESD Shielding
ASTM D882
MIL-STD-3010C Method 2065
ASTM D882
MIL-STD-3010C Method 1003
IPC-TM-650 2.4.1
Testing Method
ANSI/ESD STM11.31
Tolerance: Width -0, +1/4"
Length +/- 1/8" Offset 0 to 1/4"
Seal width 3/8" with a tolerance of +/- 1/8"
Surface Resistance -
Interior
Surface Resistance -
Exterior
EMI Attenuation
Cleanliness
Silicone
Heat Sealing Conditions
Temperature
ANSI/ESD STM11.11
ANSI/ESD STM11.11
1 to 10 GHz
Testing Method
FTIR
Note: Standard bag markings shown
above are not to scale.
Time
Pressure
Tolerance (inches): Width -0, +0.250 Length +/- 0.125 Offset O to 0.250
Seal width +/- 0.125
Bag is free of amines, silicones and heavy metals.
This product is intended for commercial use only. This product is not on the Qualified Product
Listing under the Defense Standardization Program.
NOTE:
The complete dry package concept of packaging for electronics requires three elements:
Moisture Barrier Bags
- To Protect
Desiccants
- To Absorb Moisture
SCS Moisture Barrier Bags are packaged in a polyethylene bag.
RoHS 3, REACH, and Conflict Minerals Statement
None of the RoHS 3 restricted materials or REACH substances of very high concern
as of 2017/07/07, or Conflict Minerals are intentionally added in manufacturing
this product. Ref: European Union Directive 2011/65/EU and Regulation (EC) No.
1907/2006/CE. See
SCS Warranty, Limitation of Liability and Remedies
Humidity Indicator Cards
- To Monitor Performance
Made in the United States of America with Globally Sourced Materials.
Specifications and procedures subject to change without notice.
DRI-SHIELD
®
3000 MOISTURE BARRIER BAG
926 JR Industrial Drive, Sanford, NC 27332
WEB SITE:
StaticControl.com
PHONE (919) 718-0000
DRAWING
NUMBER
Dri-Shield
®
3000
DATE
October
2017
© 2017 DESCO INDUSTRIES INC.
