DA15P364X150LF: DescriptionD Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size160KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DA15P364X150LF Overview

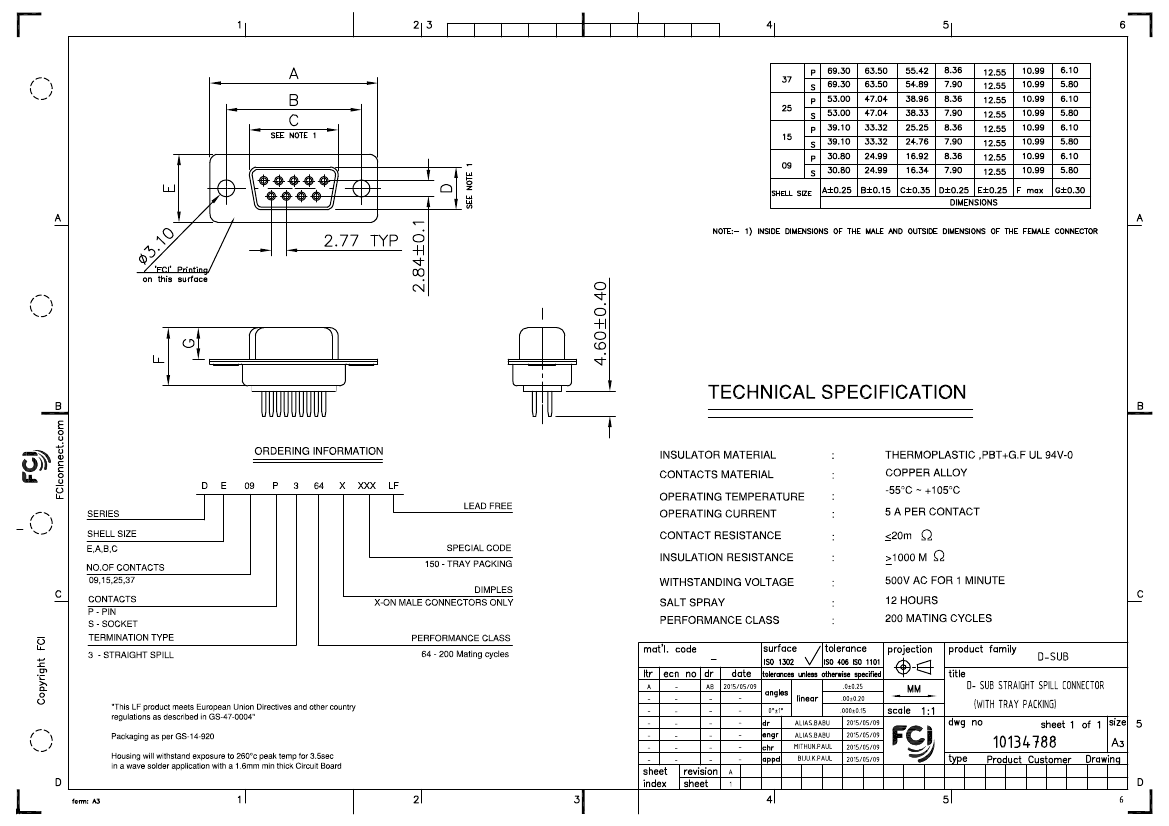

D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking

DA15P364X150LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
body width	0.494 inch
subject depth	0.193 inch
body length	1.539 inch
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	100000000 Ω
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.181 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

PDS: Rev :A

STATUS:Released

Printed: May 11, 2015

DA15P364X150LF Related Products

	DA15P364X150LF	DB25S364150LF	DA15S364150LF	DB25P364X150LF	DE09P364X150LF	DE09S364150LF	DC37S364150LF
Description	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking	D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.193 inch	0.204 inch	0.204 inch	0.193 inch	0.193 inch	0.204 inch	0.204 inch
body length	1.539 inch	2.087 inch	1.539 inch	2.087 inch	1.213 inch	1.213 inch	2.728 inch
Contact point gender	MALE	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Manufacturer's serial number	D	D	D	D	D	D	D
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	15	25	9	9	37
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	-	Amphenol
