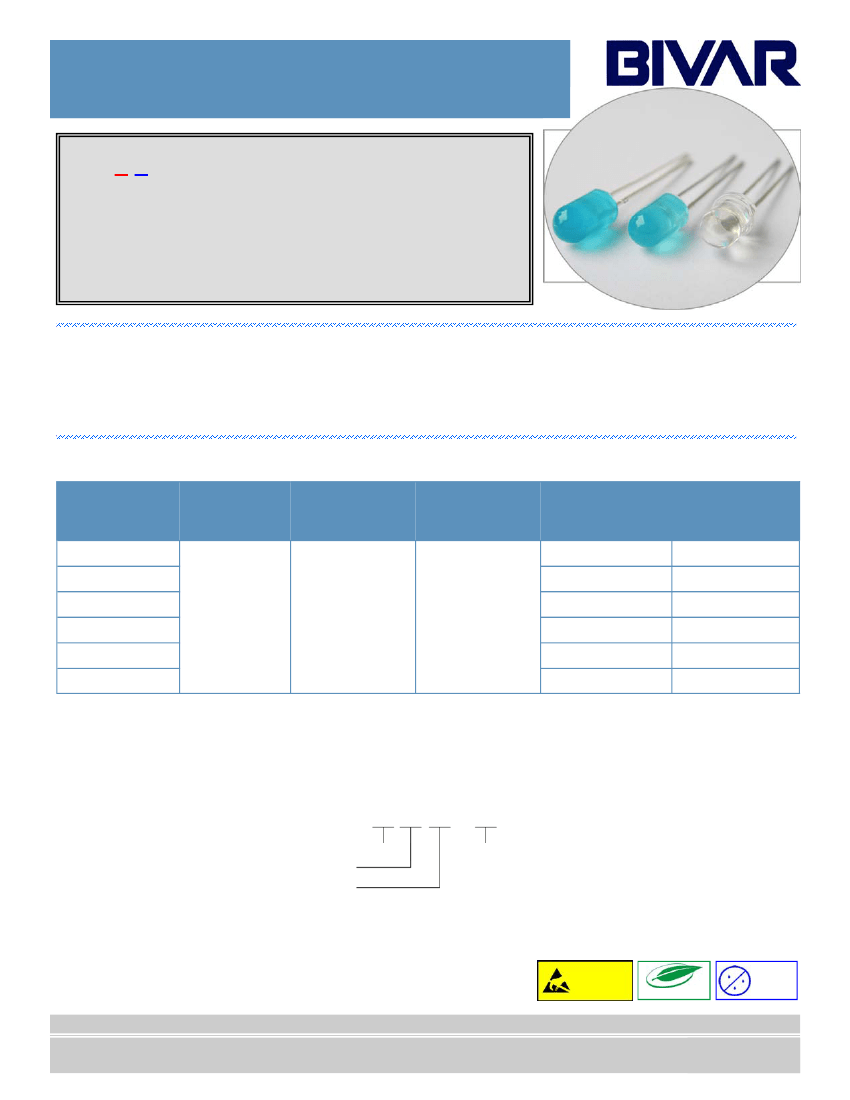

5mm (T1 ¾) Package Discrete LED
5mm (T1 ¾) Package Discrete LED
BLUE
BLUE
5BWX-X
♦
♦
♦
♦
♦
Industry Standard 5mm (T1 ¾) Package
RoHS Compliant
Water Clear (C), Diffused (D), and Tinted (T) Lenses
Available in Flange (F) and Standard (Blank) Lead Frame
styles
Ideal for Status Indication and Display
Bivar 5mm T1 ¾ Package LED may be used in almost any application. Bivar offers water clear LED
lens for maximum light output, diffused LED lens for uniform light output, and tinted lens to identify the
color of the LED. The Flange LED is ideal for Panel Mount Clip & Ring assemblies and the Standard
Lead frame LED is ideal for vertical spacer assemblies without lead bends.
Part Number
5BWC-F
5BWD-F
5BWT-F
5BWC
5BWD
5BWT
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Blue Diffused
Viewing Angle
25°
40°
25°
20°
45°
20°
GaN/SiC
BLUE
430nm
Blue Tinted
Water Clear
Blue Diffused
Blue Tinted
Part Number Designation
5 X X - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, Blank for Standard
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 1 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
RED
YELLOW
GREEN
AMBER
BLUE

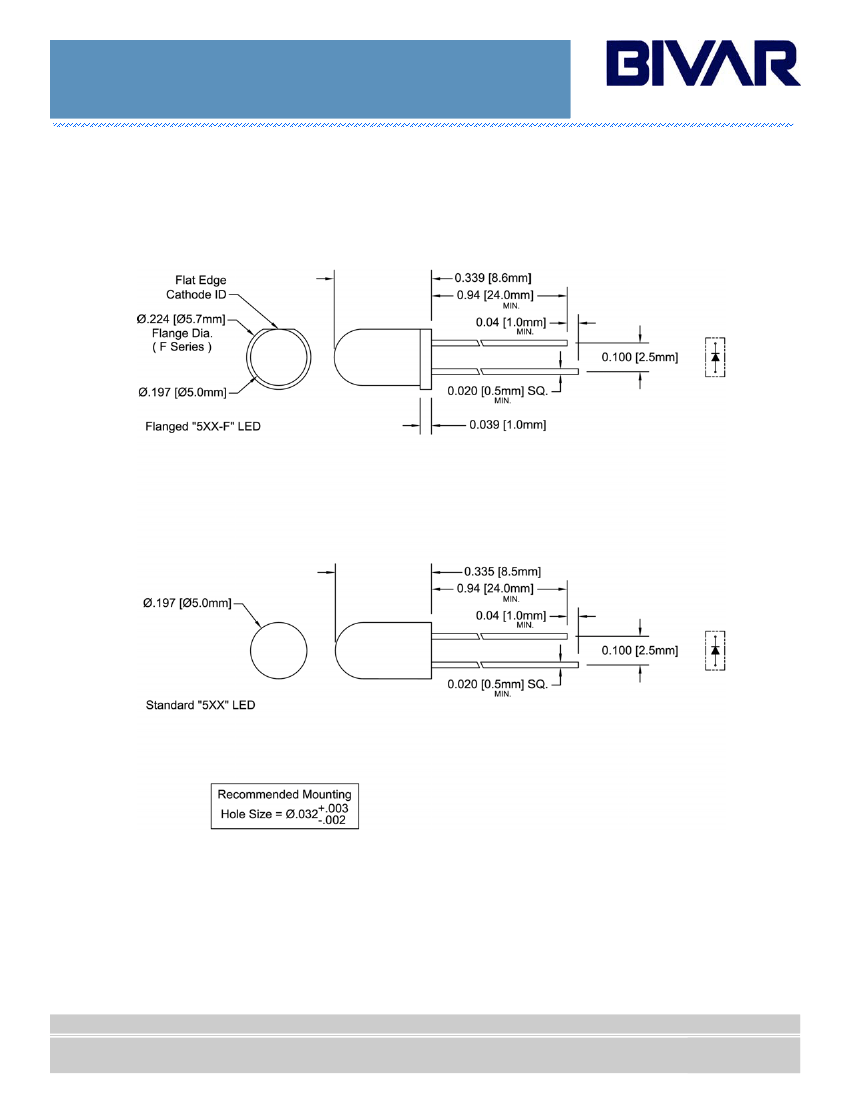

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 2 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
RED
YELLOW
GREEN
AMBER
BLUE
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
150 mW
25 mA
70 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
MIN
/
/
4.0
4.5
/
20
/
100
/
/
/
/
4.0
4.5
/
20
/
100
/
/
TYP
/
/
/
/
/
/
MAX
/
/
/
/
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
/
/
/
/
TYP
30
15
30
30
15
30
MAX
/
/
/
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
25
40
25
20
45
20
Part Number
MIN TYP MAX MIN TYP MAX
5BWC-F
5BWD-F
5BWT-F
5BWC
5BWD
5BWT
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 3 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
RED
YELLOW
GREEN
AMBER
BLUE

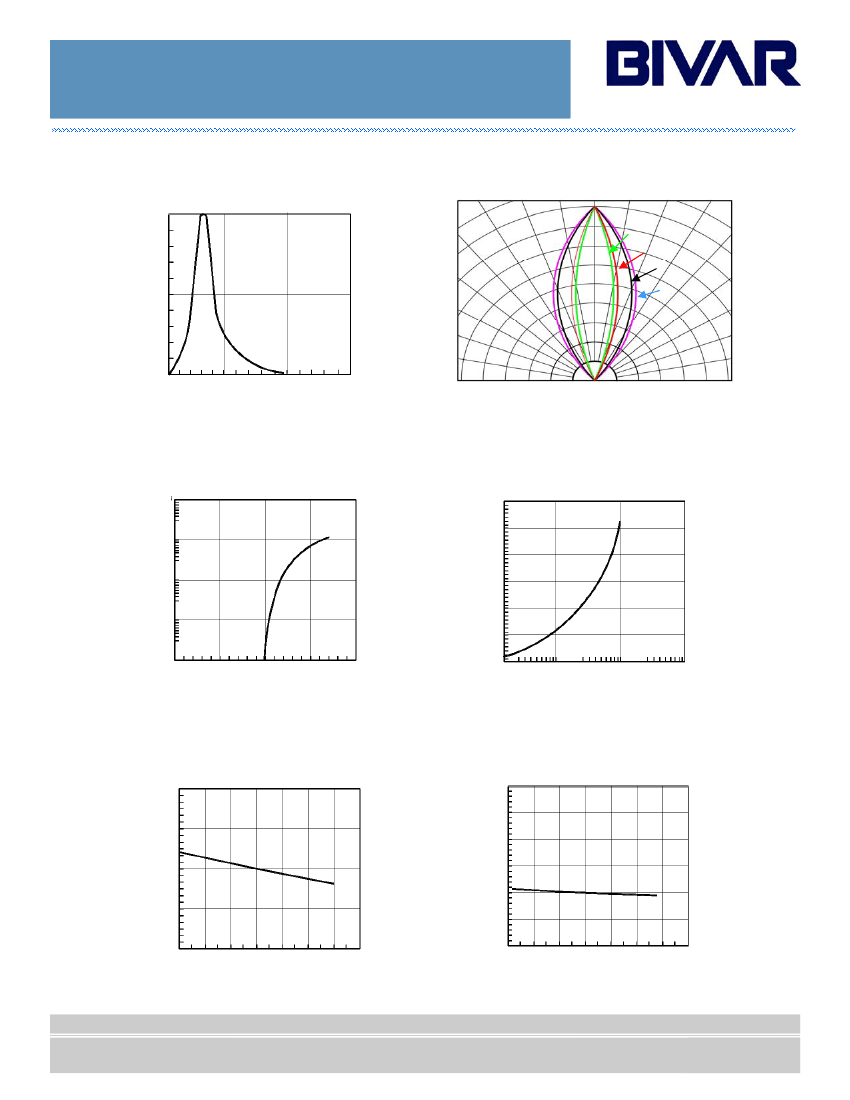

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
60°
70°
80°
1.0
20°
25°
40°
0.5
45°
0.0
400
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
450
500
550
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
If (mA)
Iv
1000
100
10
1
0.1
1.0
Vf (V)
3.0
2.0
1.0
2.0
3.0
4.0
5.0
0.0
If (mA)
1
10
100
1000
Fig. 3 Forward Current vs. Forward Voltage
Fig. 4 Relative Luminous Intensity vs. Forward Current
Normalize @ 20 mA
Vf (V)
Iv
1.2
1.1
1.0
0.9
0.8
-40
T (°C)
3.0
2.0
1.0
T (°C)
0
40
80
0.0
-40
0
40
80
Fig. 5 Forward Voltage vs. Temperature
Fig. 6 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 4 of 5
5mm (T1 ¾) Package Discrete LED
3mm (T1)¾) Package Discrete LED
LEDs
5mm (T1 Package Discrete LED
RED
YELLOW
GREEN
AMBER
BLUE
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision A 03/08
Page 4 of 4
Page 5 of 5
