5990181007F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 5990181007F

5990181007F: DescriptionLED GREEN 0805 SMD; CategoryLED optoelectronic/LED; File Size827KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5990181007F Overview

LED GREEN 0805 SMD

5990181007F Parametric

Parameter Name	Attribute value
color	green
Configuration	-
Lens color	-
Lens transparency	-
millicandela level	340mcd
Lens style/size	Rectangular, with flat top, 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typical)	3.2V
Current - Test	20mA
perspective	140°
Installation type	surface mount
Wavelength - Main	525nm
Wavelength - Peak	-
characteristic	-
Package/casing	0805 (2012 Metric)
Supplier device packaging	805
size/dimensions	2.00mm length x 1.25mm width
Height (maximum value)	0.80mm

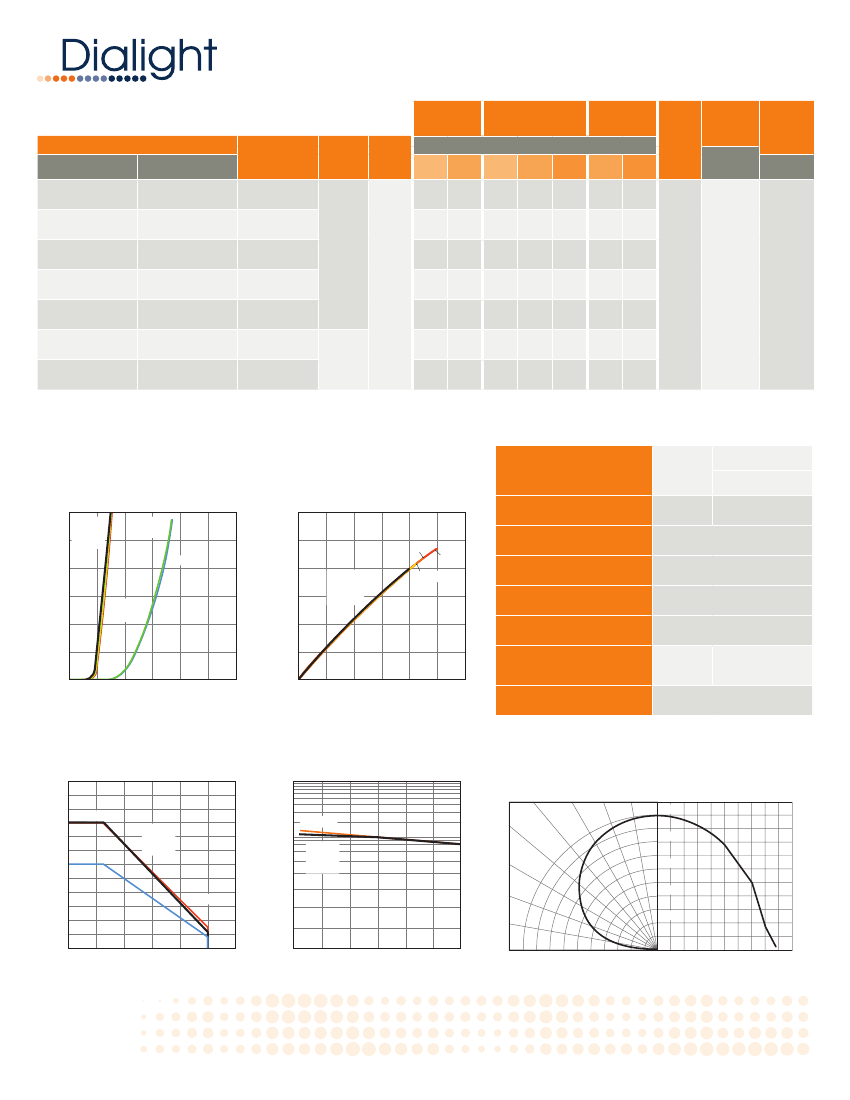

Preview

Download Datasheet

View All

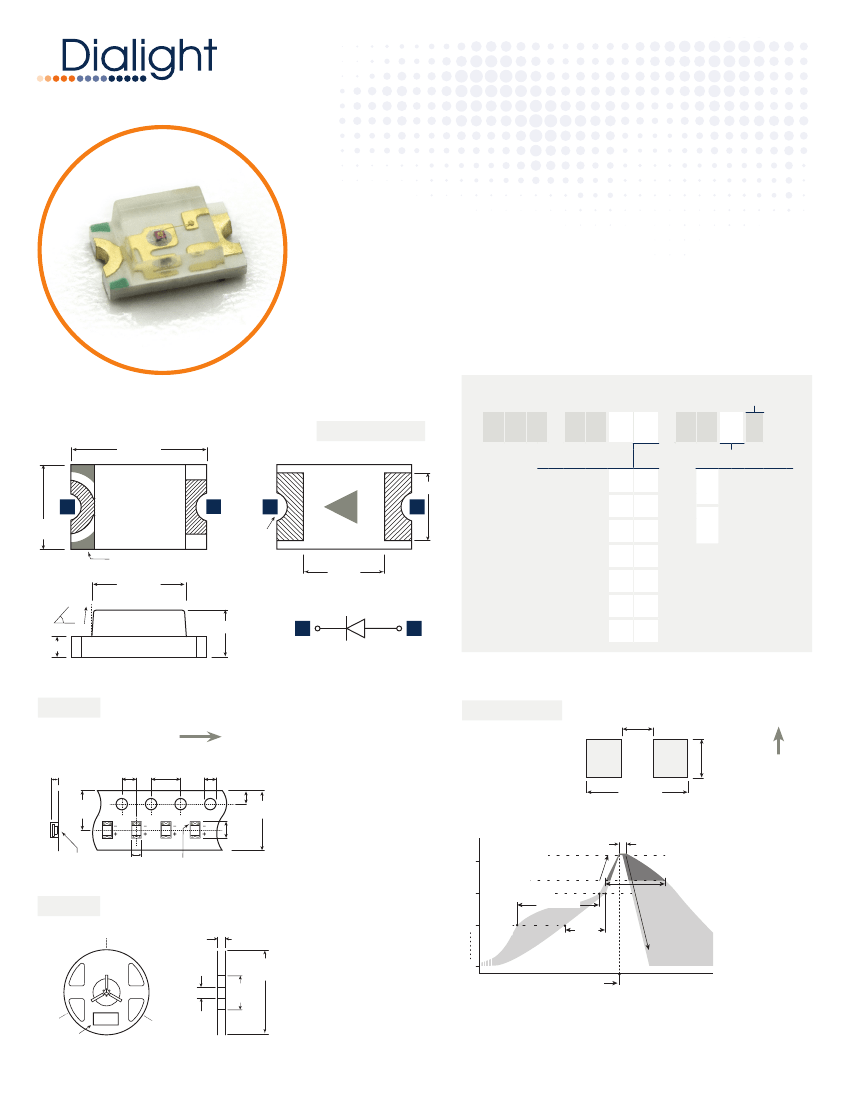

MicroLED

SMD LED, Single Color 0805 Package

2.0 mm x 1.25 mm x 0.7 mm

Certifications & Ratings

• RoHS compliant

599 Series

Features & Benefits

• Compatible with automatic placement equipment

• Packaged in 8 mm tape, 7" reel (4000 pcs/reel)

and 20 per strip

• Meets EIA-481-1 pkg. std.

Part Number Guide

RoHS Compliant

Dimensions

inches [mm]

.079 [2.0]

Tolerance

±0.2

mm unless otherwise noted

Package

5 9 9 - 0 1

Color

.039 [1.0]

X - 0 0 X F

Packaging Option

20 piece tape

7" reel

4000 pcs/reel



Red



Red-Orange



Orange



Yellow

.049

[1.25]

Polarity Mark

R 0.008

[R 0.20]

.03 [1.2]

.056 [1.4]

3°

.028 [0.7]

.012 [0.3]



Yellow-Green

–



Green



Blue

Tape

Tolerance

±0.1

mm unless otherwise noted

Soldering

.039

[1.0]

598 Series pkg 0805

.047

packg diagram scaled to 1:36

Feed Direction

.037

[0.94]

.079

[2.0]

.157

[4.0]

.061

[1.55]

[1.2]

Direction of

Light Emission

.069

[1.75]

.315

[8.0]

RF-AUB170TS-ED E2 RF-0046NP

2017-10-16.pdf

.207

[5.25]

Reflow Profile

Temp °C

250

0.126 [3.2]

Hand Soldering

Temperature: 300° C max.

Soldering time: 3 sec max.

(one time only)

.090

[2.28]

.056 [1.42]

Polarity Mark

time at peak 10 sec (max)

ramp up

3°C/sec (max)

time above 217 °C

60–150 sec

Top

of Tape

Tpeak = 260 °C

Reel

TL = 217 °C

200

Tsmax = 200 °C

Tolerance

±0.1

mm unless otherwise noted

150

.315 [8.0]

7.01

[178±1.0]

2.362

[60±1.0]

Tsmin=

150 °C

120 sec (max)

Pre-heat: ∆T: 150–200 °C

60 sec

(min)

ramp down

6 °C/sec (max)

598 Series pkg 0805

Time

packg diagram scaled to 1:36

RF-AUB170TS-ED E2 RF-0046NP

2017-10-16.pdf

.512

[13±0.5]

Total Time to Peak temp < 8 min.

∆T: 25–260 °C

Label

www.dialightsignalsandcomponents.com

60 sec

5990181007F Related Products

	5990181007F	5990110007F	5990160007F	5990130007F	5990120007F	5990140007F	5990191007F
Description	LED GREEN 0805 SMD	LED RED 0805 SMD	LED YELLOW/GREEN 0805 SMD	LED ORANGE 0805 SMD	LED ORANGE-RED 0805 SMD	LED YELLOW 0805 SMD	LED BLUE 0805 SMD
color	green	red	Yellow green	orange color	orange red	yellow	blue
millicandela level	340mcd	29mcd	43mcd	95mcd	138mcd	112mcd	105mcd
Lens style/size	Rectangular, with flat top, 1.40mm x 1.25mm	Rectangular, with flat top, 1.40mm x 1.25mm	Rectangular, with flat top, 1.40mm x 1.25mm	Rectangular, with flat top, 1.40mm x 1.25mm	Rectangular, with flat top, 1.40mm x 1.25mm	Rectangular, with flat top, 1.40mm x 1.25mm	Rectangular, with flat top, 1.40mm x 1.25mm
Voltage - Forward (Vf) (Typical)	3.2V	2.1V	2.1V	2.1V	2.1V	2.1V	3.2V
Current - Test	20mA	20mA	20mA	20mA	20mA	20mA	20mA
perspective	140°	140°	140°	140°	140°	140°	140°
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Wavelength - Main	525nm	633nm	569nm	605nm	625nm	590nm	470nm
Package/casing	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)	0805 (2012 Metric)
Supplier device packaging	805	805	805	805	805	805	805
size/dimensions	2.00mm length x 1.25mm width	2.00mm length x 1.25mm width	2.00mm length x 1.25mm width	2.00mm length x 1.25mm width	2.00mm length x 1.25mm width	2.00mm length x 1.25mm width	2.00mm length x 1.25mm width
Height (maximum value)	0.80mm	0.80mm	0.80mm	0.80mm	0.80mm	0.80mm	0.80mm
