Part Number

Search

71609-304

Description
CONN RCPT 8POS .100" DL SMD RA
CategoryThe connector
File Size76KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

71609-304 Overview

CONN RCPT 8POS .100" DL SMD RA

71609-304 Parametric

Parameter NameAttribute value
Connector typesocket
Contact typefemale socket
styleboard to board
Number of pins8
Number of pins loadedall
Spacing - Mating0.100"(2.54mm)
Number of rows2
Line spacing - patching0.100"(2.54mm)
Installation typeSurface mount, right angle
Terminationwelding
Fastening typepush-pull
Contact surface treatment - matinggold
Contact Surface Treatment Thickness - Mating30.0µin(0.76µm)
Insulation colorgrey
Insulation height0.230"(5.85mm)
Contact length - terminal-
Operating temperature-
Material flammability ratingUL94 V-0
Contact Surface Preparation - Columntin
Joint stack height-
Intrusion protection-
characteristic-
Rated current-
Rated voltage-
applicationAutomotive, General, Industrial, Telecom
Insulation MaterialsThermoplastic - Fiberglass
Contact shapeSquare
Contact materialPhosphor bronze
Contact Surface Treatment Thickness - Column78.7µin(2.00µm)

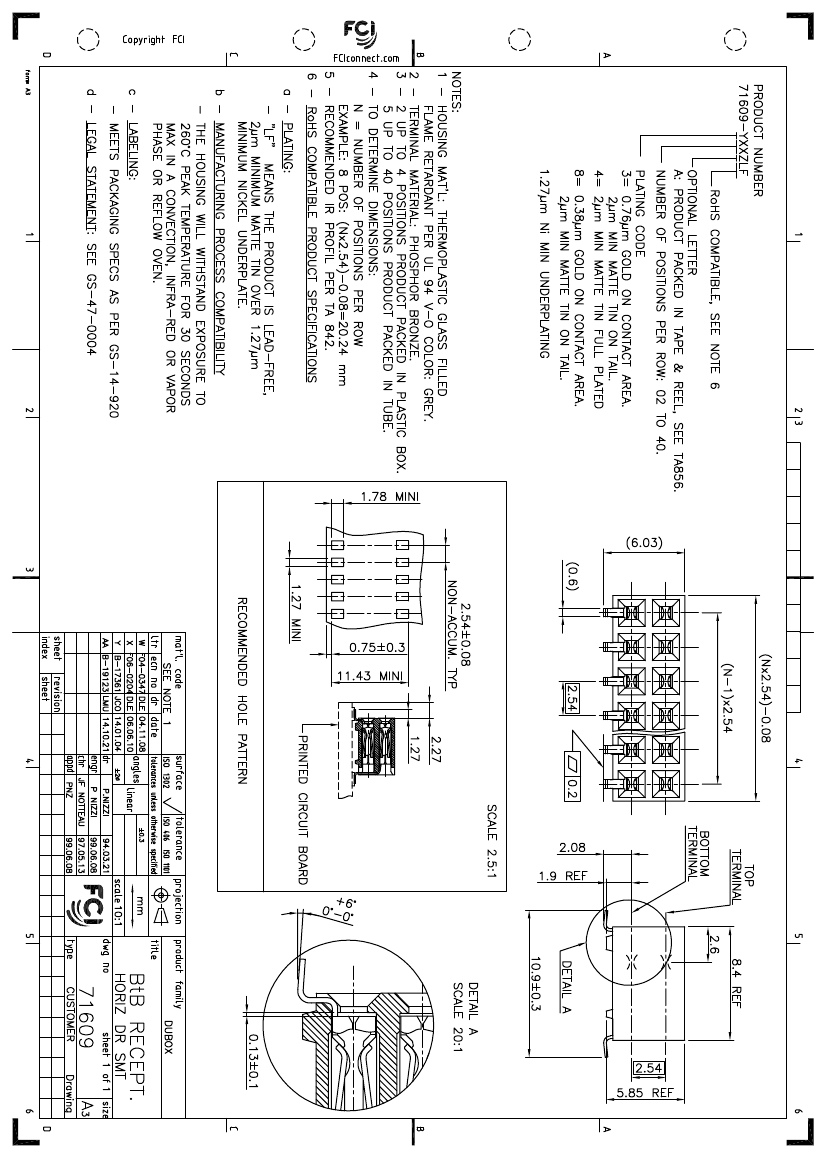

PDS: Rev :AA
STATUS:Released
Printed: Oct 29, 2014
