DBL13W3S700A30LF datasheet, PDF

DBL13W3S700A30LF: DescriptionD Subminiature Connector, 13 Contact(s), Female, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size635KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

DBL13W3S700A30LF Overview

D Subminiature Connector, 13 Contact(s), Female, Solder Terminal, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Pure Bright Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	COPPER NICKEL TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0

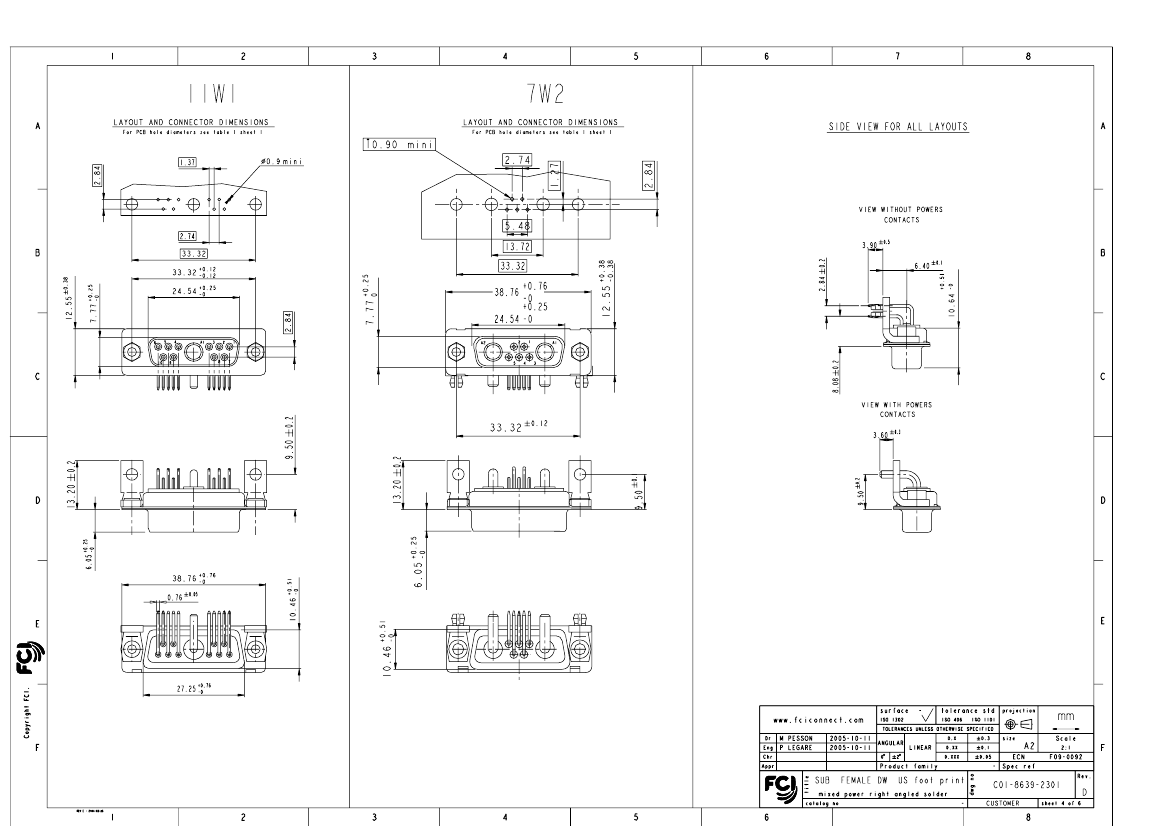

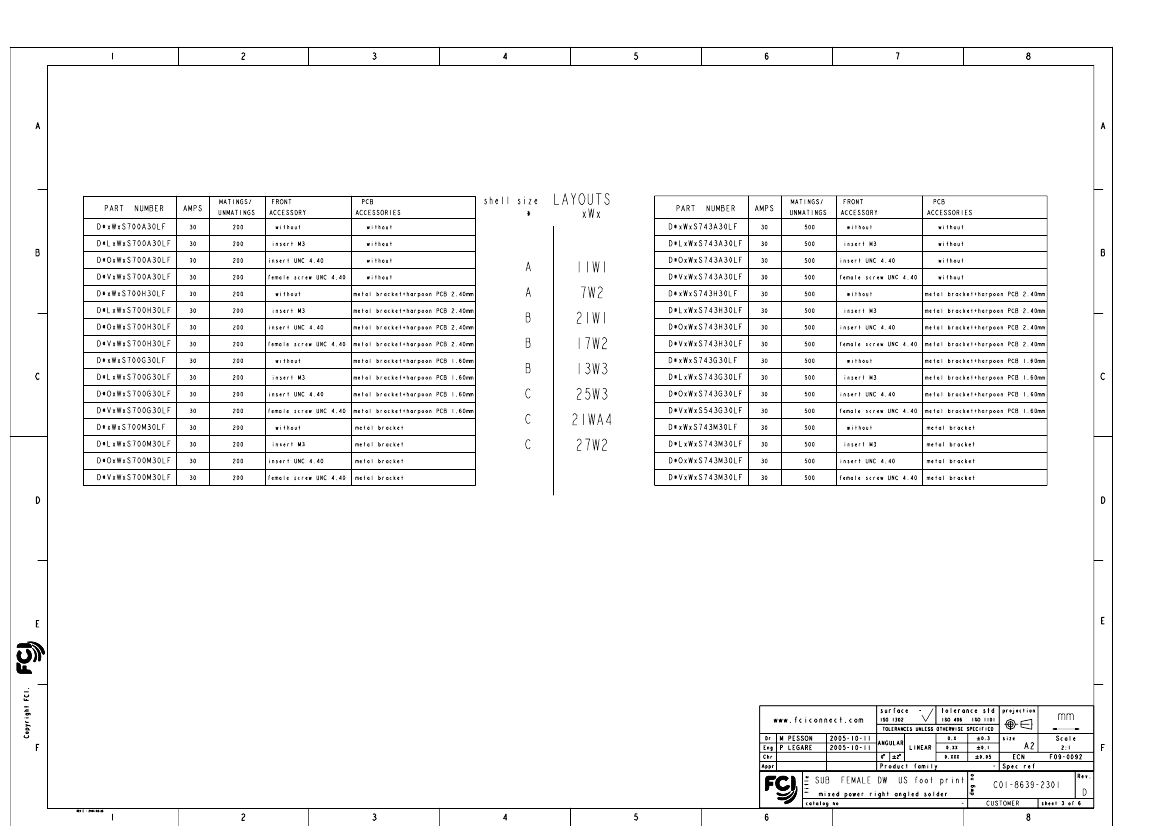

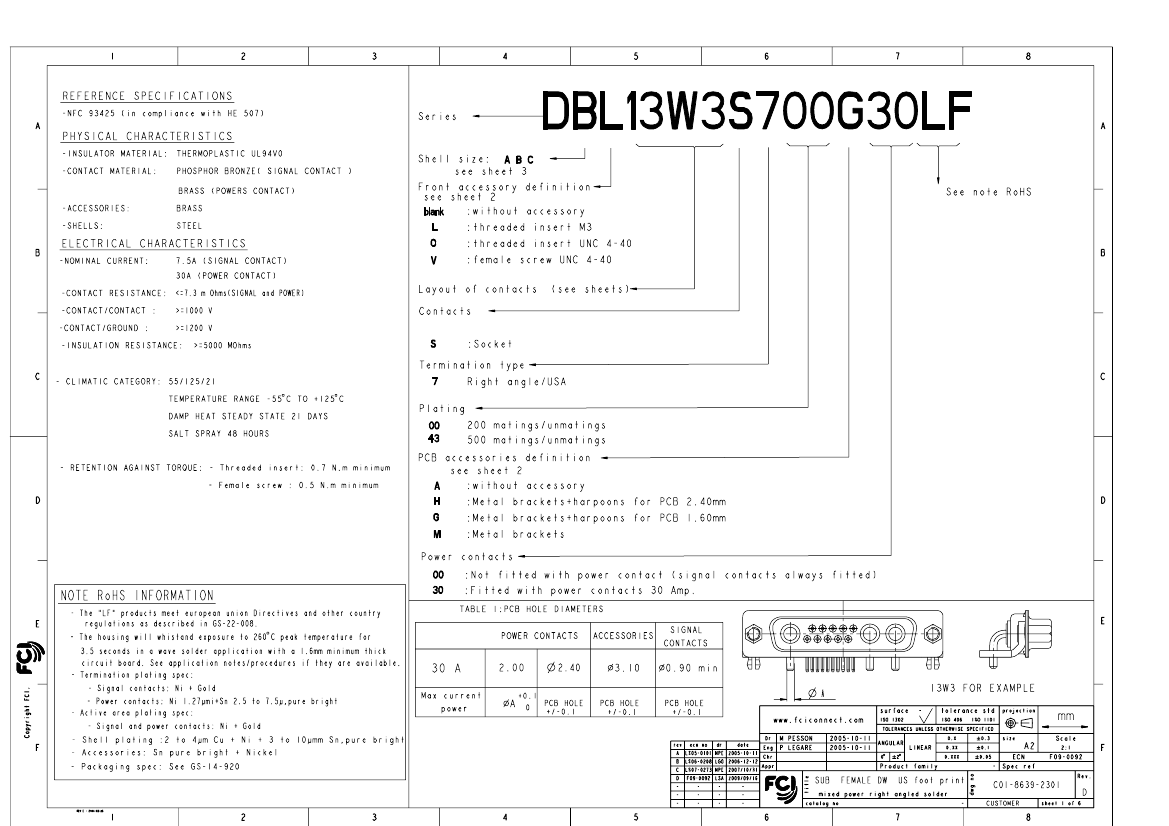

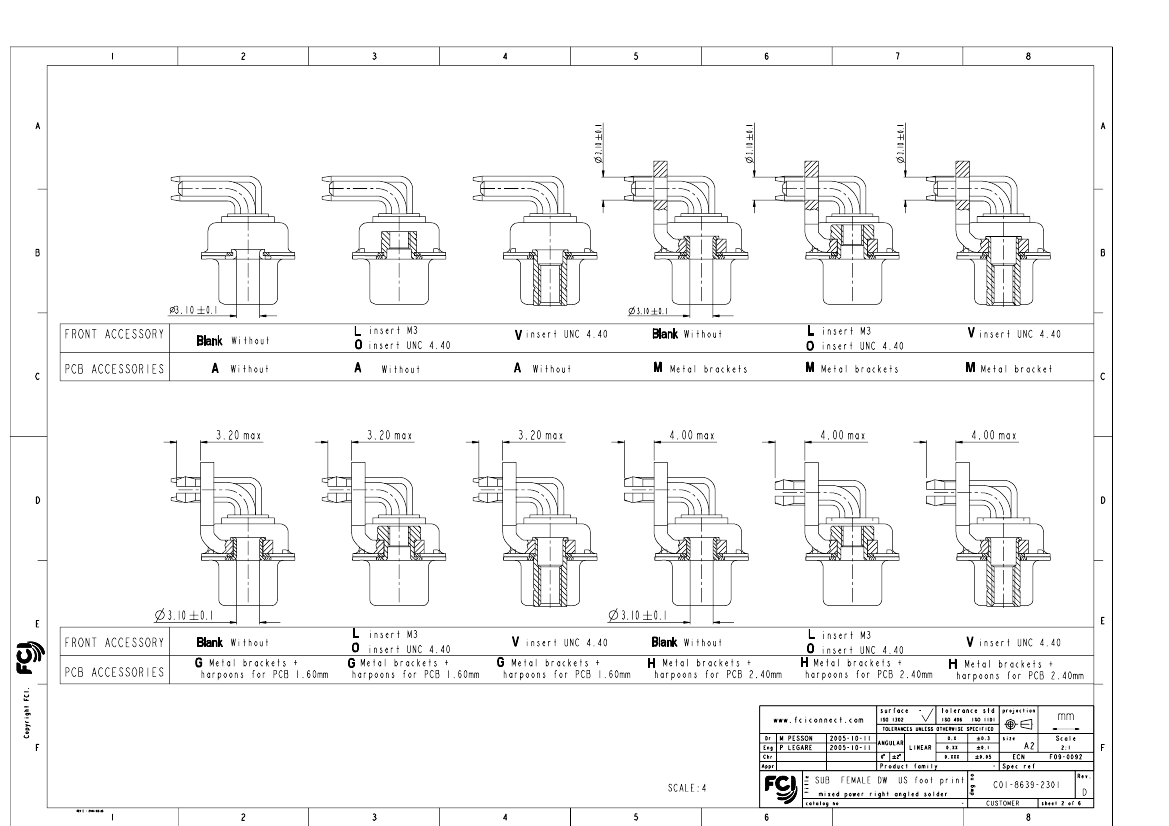

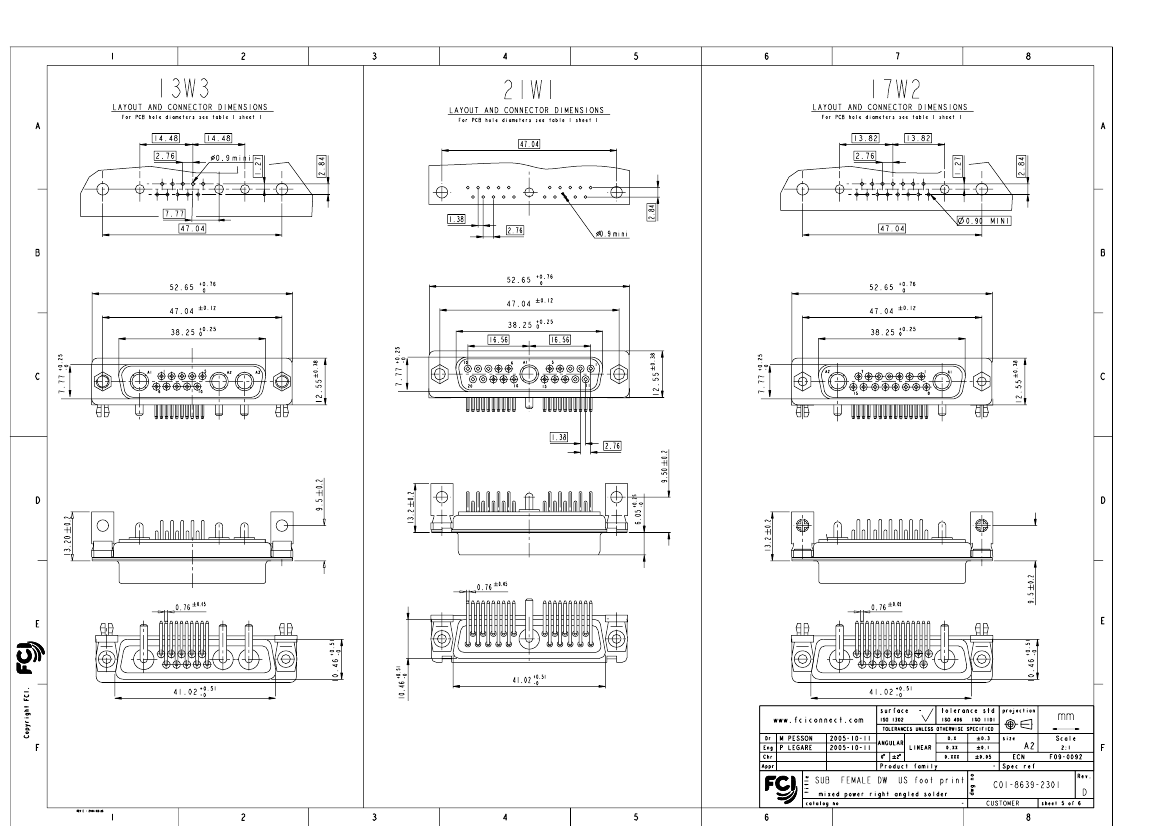

PDM:

PDS: Rev :D

Rev:D

STATUS:Released

Printed: Apr 28,

Jun 19, 2015

Printed:

2015

STATUS:

Released

.
