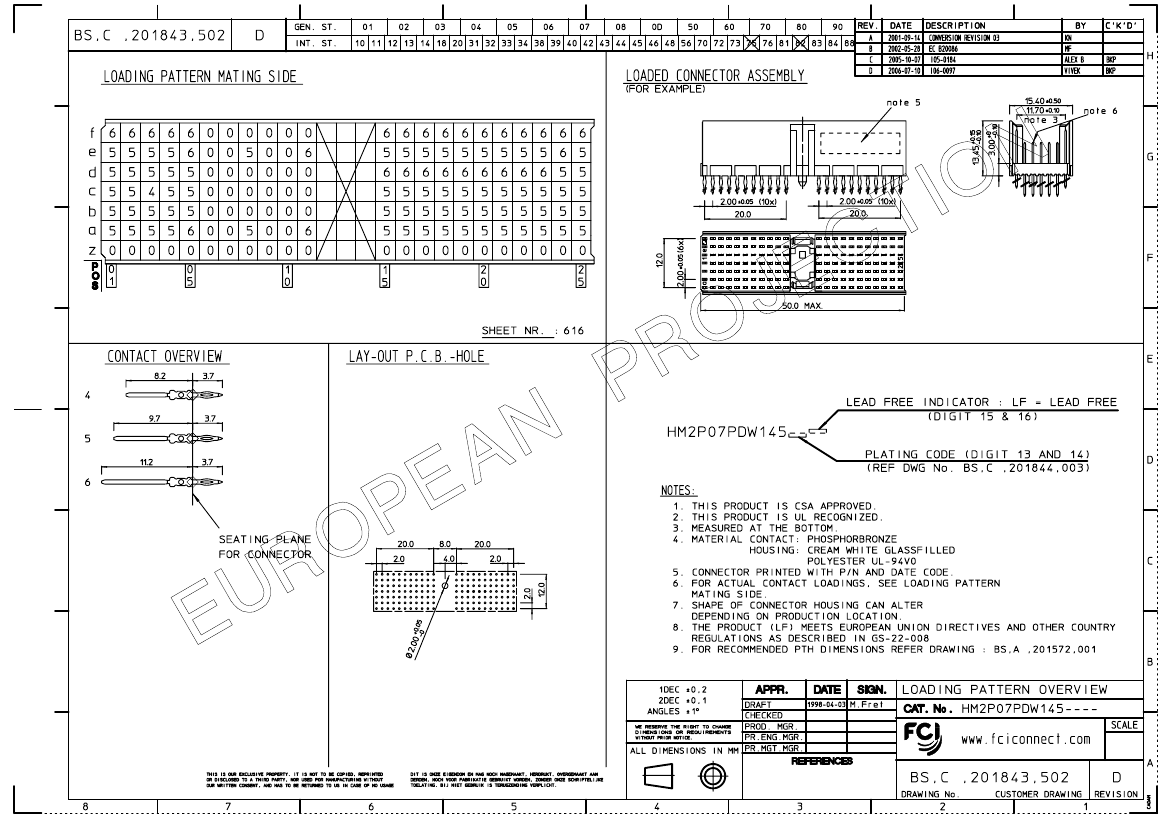

CONN HEADER 110POS TYPE A VERT
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE |
| body width | 0.606 inch |
| subject depth | 0.53 inch |
| body length | 1.969 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL |
| Contact completed and terminated | GOLD (30) OVER NICKEL |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 750VAC V |
| Durability | 250 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | .3614 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | CREAM |
| insulator material | GLASS FILLED POLYESTER |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | HM2P07PDW145 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 7 |
| Number of rows loaded | 6 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 31u inch |
| polarization key | CENTER |
| Rated current (signal) | 1.5 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.146 inch |
| Terminal pitch | 2 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 100 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .07228 N |
| HM2P07PDW145N9 | HM2P07PDW145N9LF | HM2P07PDW145E9 | HM2P07PDW145E9LF | HM2P07PDW145Z1 | HM2P07PDW145Z1LF | |
|---|---|---|---|---|---|---|
| Description | CONN HEADER 110POS TYPE A VERT | CONN HEADER 110POS TYPE A VERT | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Cream Insulator, Receptacle, | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Cream Insulator, Receptacle, | Board Connector, 100 Contact(s), 6 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Other features | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE | 16 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 6 | 6 | 6 | 6 | 6 | 6 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 100 | 100 | 100 | 100 | 100 | 100 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
| Contact to complete cooperation | GOLD (30) OVER NICKEL | NOT SPECIFIED | AU ON NI | - | AU ON NI | - |
| Contact material | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE | - | PHOSPHOR BRONZE | - |
| Manufacturer's serial number | HM2P07PDW145 | HM2P07PDW145 | HM2P07PDW145 | - | HM2P07PDW145 | HM2P07PDW145 |
| Number of connectors | ONE | - | ONE | ONE | ONE | - |
