DPF316-998Z datasheet, PDF - EEWORLD Datasheet

DPF316-998Z: DescriptionCONN IC DIP SOCKET 16POS TINLEAD; CategoryThe connector socket; File Size167KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

DPF316-998Z Overview

CONN IC DIP SOCKET 16POS TINLEAD

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET, UL 94V-0
body width	0.4 inch
subject depth	0.173 inch
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL
Contact material	BERYLLIUM COPPER ALLOY
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Dielectric withstand voltage	100VAC V
Shell material	GLASS FILLED POLYESTER
Insulation resistance	10000000000 Ω
Manufacturer's serial number	DPF3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	PRESS FIT

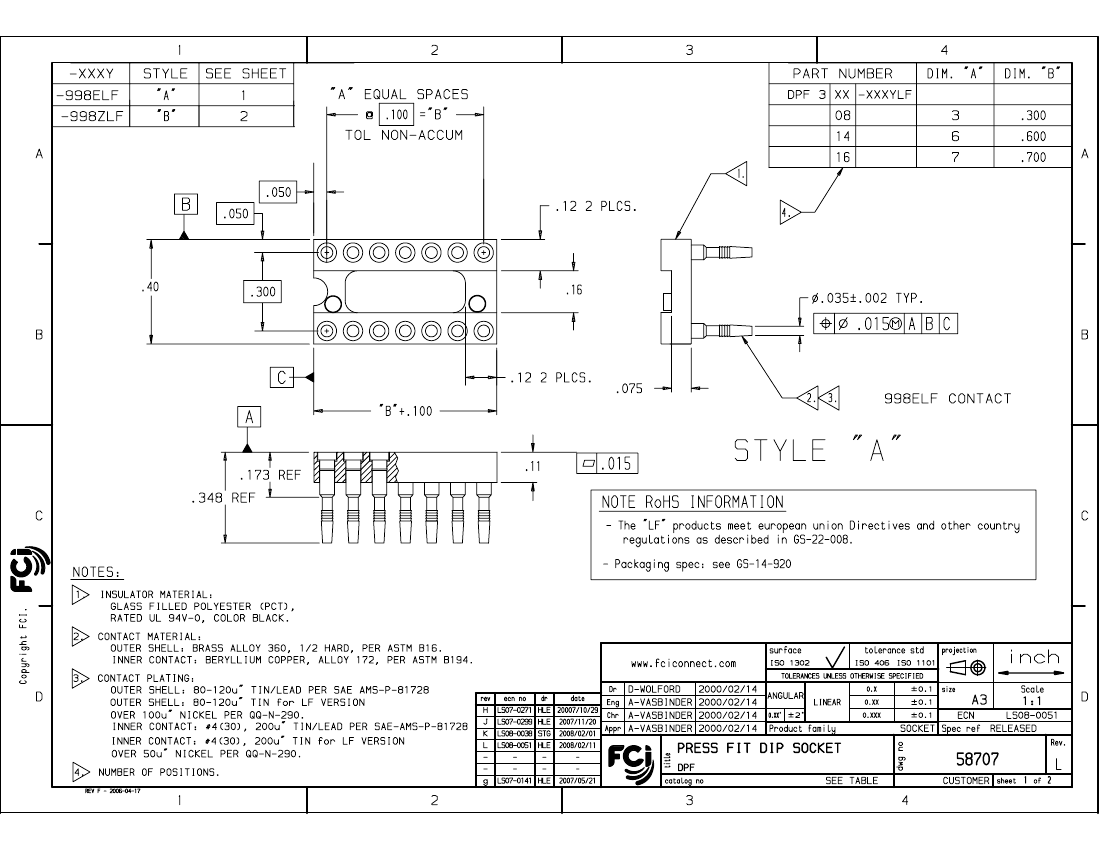

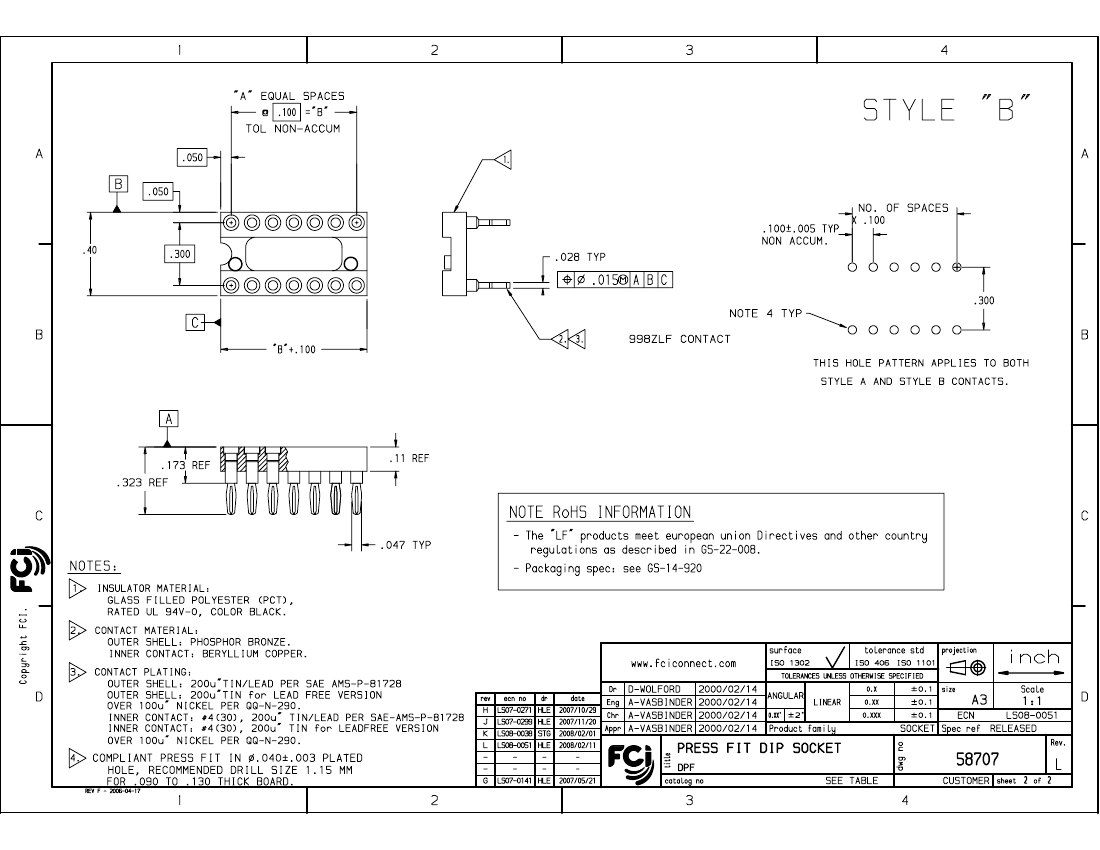

PDM: Rev:L

STATUS:

Released

Printed: Sep 28, 2009

.
