HM2P95PN8110GF datasheet, PDF - EEWORLD Datasheet

HM2P95PN8110GF: DescriptionCONN HEADER 200POS TYPE DE VERT; CategoryThe connector; File Size181KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P95PN8110GF Overview

CONN HEADER 200POS TYPE DE VERT

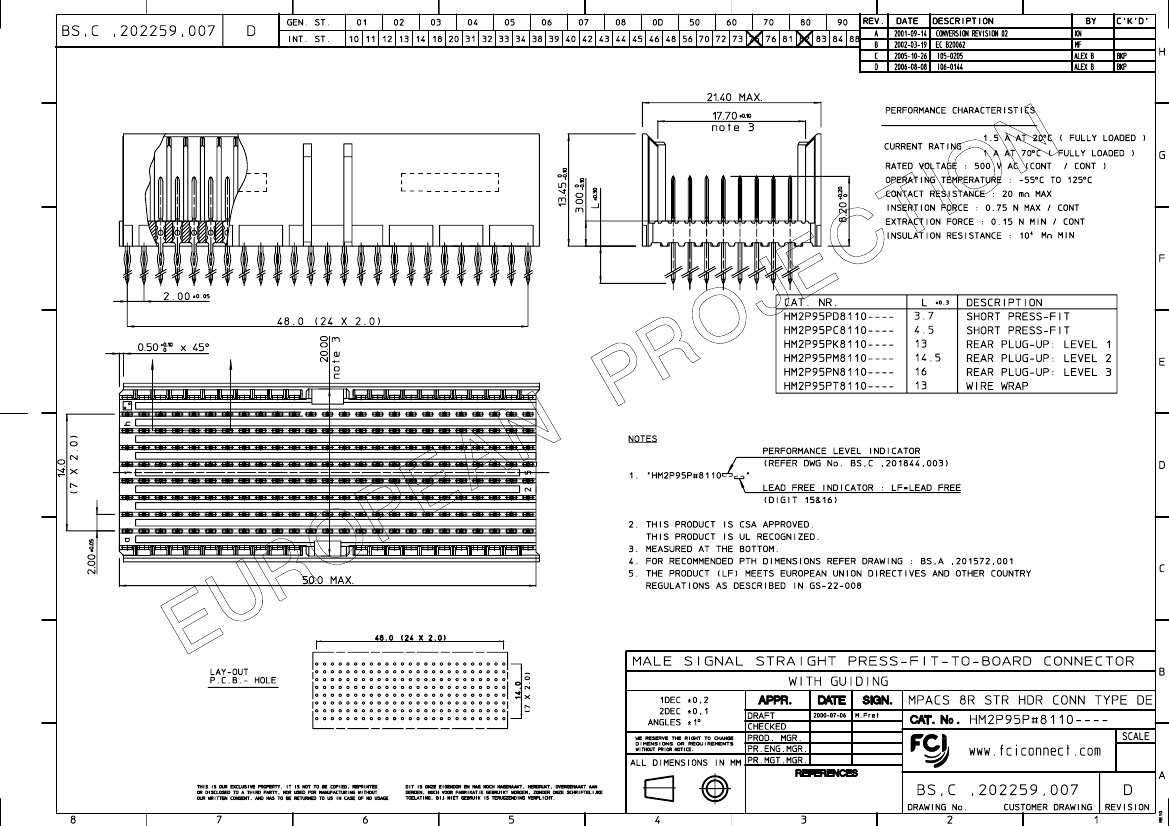

PDM: Rev:D

STATUS:

Released

Printed: Dec 02, 2007

.

	HM2P95PN8110GF	HM2P95PD8110N9LF	HM2P95PD8110N9	HM2P95PK8110GF	HM2P95PK8110GFLF	HM2P95PN8110GFLF
Description	CONN HEADER 200POS TYPE DE VERT	CONN HEADER 200POS TYPE DE VERT	CONN HEADER 200POS TYPE DE VERT	CONN HEADER 200POS TYPE DE VERT	CONN HEADER 200POS TYPE DE VERT	CONN HEADER 200POS TYPE DE VERT
Connector type	Connector, male pin	Connector, male pin	Connector, male pin	BOARD CONNECTOR	BOARD CONNECTOR	Connector, male pin
Installation type	Through hole	Through hole	Through hole	BOARD	BOARD	Through hole
Connector style	DE 25	DE 25	DE 25	-	-	DE 25
Number of pins	200	200	200	-	-	200
Number of pins loaded	all	all	all	-	-	all
spacing	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）	-	-	0.079"（2.00mm）
Number of rows	8	8	8	-	-	8
Termination	Press fit	Press fit	Press fit	-	-	Press fit
Contact plating	gold	gold	gold	-	-	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）	30.0µin（0.76µm）	-	-	30.0µin（0.76µm）
Rated current	1.5A	1.5A	1.5A	-	-	1.5A
Rated voltage	500V	500V	500V	-	-	500V
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-	-	-55°C ~ 125°C
