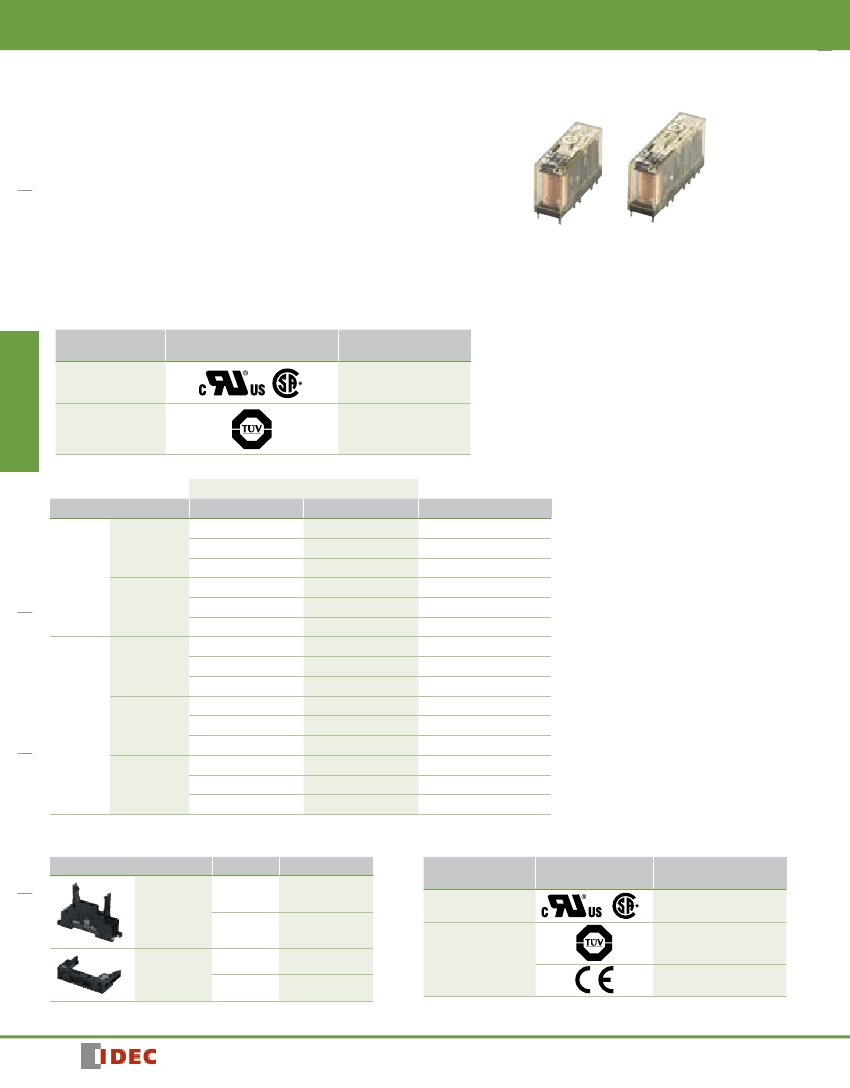

RF1V Force Guided Relays/SF1V Relay Sockets
Key features:
• Compact and EN compliant RF1V force guided relays
• Force guided contact mechanism
(EN50205 Type A TÜV approved)
• Contact configuration
4-pole (2NO-2NC, 3NO-1NC)
6-pole (4NO-2NC, 5NO-1NC, 3NO-3NC)
Signaling Lights
• Built-in LED indicator available.
• Fast response time (8 ms maximum).
• High shock resistance (200 m/s
2
minimum)
• Finger-safe DIN rail mount socket and PC board mount socket.
Certification Organization/
File Number
UL/c-UL File No. E55996
Applicable Standard
Relays & Sockets
UL508
CSA C22.2 No.14
EN50205
EN61810-1
Marking
TÜV SÜD
Part Number Selection
Part Number
Contact
Timers
2NO-2NC
4-pole
3NO-1NC
Without LED Indicator
RF1V-2A2B-D12
RF1V-2A2B-D24
RF1V-2A2B-D48
RF1V-3A1B-D12
RF1V-3A1B-D24
RF1V-3A1B-D48
RF1V-4A2B-D12
Contactors
4NO-2NC
RF1V-4A2B-D24
RF1V-4A2B-D48
RF1V-5A1B-D12
6-pole
5NO-1NC
RF1V-5A1B-D24
RF1V-5A1B-D48
RF1V-3A3B-D12
Terminal Blocks
3NO-3NC
RF1V-3A3B-D24
RF1V-3A3B-D48
With LED Indicator
RF1V-2A2BL-D12
RF1V-2A2BL-D24
RF1V-2A2BL-D48
RF1V-3A1BL-D12
RF1V-3A1BL-D24
RF1V-3A1BL-D48
RF1V-4A2BL-D12
RF1V-4A2BL-D24
RF1V-4A2BL-D48
RF1V-5A1BL-D12
RF1V-5A1BL-D24
RF1V-5A1BL-D48
RF1V-3A3BL-D12
RF1V-3A3BL-D24
RF1V-3A3BL-D48
Rated Coil Voltage
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
Sockets
Style
DIN Rail
Mount Sockets
No. of Poles
4
6
4
6
Ordering Type No.
SF1V-4-07L
SF1V-6-07L
SF1V-4-61
SF1V-6-61
Certification for Sockets
Applicable Standard
UL508
CSA C22.2 No.14
EN147000
EN147100
Marking
Certification Organization/
File Number
UL/c-UL File No. E62437
TÜV SÜD
EC Low Voltage Directive
(DIN rail mount sockets only)
Circuit Breakers
PC Board
Mount Sockets
910
www.IDEC.com
1705242125
RF1V
Switches & Pilot Lights
Relays & Sockets
4-pole
2NO-2NC
3NO-1NC
6-pole
4NO-2NC
100 mΩ maximum
AgSnO
2
(Au flashed)
6A 250V AC, 6A 30V DC
1500 VA, 180W
250V AC, 30V DC
6A
5V DC, 1 mA (reference value)
0.36W
4000V AC, 1 minute
2500V AC, 1 minute
Between contacts 7-8 and 9-10
2500V AC, 1 minute
Between contacts 7-8 and 11-12
Between contacts 9-10 and 13-14
Between contacts 11-12 and 13-14
4000V AC, 1 min.
Between contacts 3-4 and 5-6
Between contacts 3-4 and 7-8
Between contacts 5-6 and 9-10
Between contacts 7-8 and 9-10
1500V AC, 1 minute
20 ms maximum (at the rated coil voltage, excluding contact bounce time)
8 ms maximum (at the rated coil voltage, excluding contact bounce time)
20 ms maximum (at the rated coil voltage, excluding contact bounce time)
10 to 55 Hz, amplitude 0.75 mm
10 to 55 Hz, amplitude 0.75 mm
200 m/s
2
, when mounted on DIN rail mount socket: 150 m/s
2
1000 m/s
2
250V AC 6A resistive load: 100,000 operations minimum (operating frequency 1200 per hour)
30V DC 6A resistive load: 100,000 operations minimum (operating frequency 1200 per hour)
250V AC 1A resistive load: 500,000 operations minimum (operating frequency 1800 per hour)
30V DC 1A resistive load: 500,000 operations minimum (operating frequency 1800 per hour)
[AC 15] 240V AC 2A inductive load: 100,000 operations minimum (operating frequency 1200 per hour, cos ø = 0.3)
[DC 13] 24V DC 1A inductive load: 100,000 operations minimum (operating frequency 1200 per hour, L/R = 48 ms)
10 million operations minimum (operating frequency 10,800 operations per hour)
–40 to +85°C (no freezing)
5 to 85%RH (no condensation)
–40 to +85°C
1200 operations per hour
20g
3. Response time is the time until NO contact opens, after the coil voltage is turned off.
4. When using at 70 to 85°C, reduce the switching current by 0.1A/°C.
Specifications
Number of Poles
Contact Configuration
Contact Resistance (initial value)
1
Contact Material
Rated Load (resistive load)
Allowable Switching Power (resistive load)
Allowable Switching Voltage
Allowable Switching Current
Minimum Applicable Load
2
Power Consumption (approx.)
Insulation Resistance
Between contact and coil
5NO-1NC
3NO-3NC
Signaling Lights
0.5W
1000 MΩ minimum (500V DC megger, same measurement positions as the dielectric strength)
Relays & Sockets
Dielectric
Strength
Between contacts of different poles
4000V AC, 1 min.
Between contacts 3-4 and 5-6
Between contacts 3-4 and 7-8
Between contacts 5-6 and 9-10
Between contacts of the same pole
Operating Time (at 20°C)
Response Time (at 20°C)
3
Release Time (at 20°C)
Timers
Vibration
Resistance
Shock
Resistance
Operating Extremes
Damage Limits
Operating Extremes (half sine-wave pulse: 11 ms)
Damage Limits (half sine-wave pulse: 6 ms)
Electrical Life
Contactors
Mechanical Life
Operating Temperature
4
Operating Humidity
Storage Temperature
Operating Frequency (rated load)
Weight (approx.)
1. Measured using 6V DC,1A voltage drop method.
2. Failure rate level P (reference value)
Circuit Breakers
Terminal Blocks
23g
912
www.IDEC.com
1705242125
Relays & Sockets
Socket Specifications
Part Number
Rated Current
Rated Voltage
Insulation Resistance
Dielectric Strength
Screw Terminal Style
Applicable Wire
Recommended Screw
Tightening Torque
Terminal Strength
Vibration Resistance
Shock Resistance
Operating Temperature
1
Operating Humidity
Storage Humidity
Degree of Protection
Weight (approx.)
40g
55g
SF1V-4-07L
SF1V-6-07L
6A
250V AC/DC
1000 MΩ minimum
(500V DC megger, between terminals)
2500V AC, 1 minute (between terminals)
M3 slotted Phillips screw
0.7 to 1.65 mm
2
(18 AWG to 14 AWG)
0.5 to 0.8 N·m
Wire tensile strength: 50N min.
Resonance:
—
—
—
—
Note: Ring tongue terminals cannot be used.
4.0 max.
6.5 min.
RF1V
Applicable Crimping Terminals Specifications
6.3 max.
3.0 min.
Switches & Pilot Lights
SF1V-4-61
SF1V-6-61
Signaling Lights
Damage limits: 10 to 55 Hz, amplitude 0.75 mm
10 to 55 Hz, amplitude 0.75 mm
1000 m/s
2
–40 to +85°C (no freezing)
5 to 85% RH (no condensation)
–40 to +85°C
Relays & Sockets
IP20 (finger-safe screw terminals)
9g
—
10g
1. When using at 70 to 85°C, reduce the switching current by 0.1A/°C.
Characteristics
Maximum Switching Capacity
Electrical Life Curve
500
Notes on Contact Gaps except Welded Contacts
Timers
1
3
4
7 8
Life (×10,000 operations)
Load Current (A)
10
6
AC Resistive Load
100
Example: RF1V-2A2B-D24
+
–
2
5
6
9 10
1
DC Resistive Load
10
250V AC Resistive Load
30V DC Resistive Load
•
If the NO contact (7-8 or 9-10) welds, the NC contact (3-4 or
0.1
1
10
Load Voltage (V)
100
250
1
0.1
Load Current (A)
1
10
5-6) remains open even when the relay coil is de-energized,
maintaining a gap of 0.5 mm. The remaining unwelded NO contact
(9-10 or 7-8) is either open or closed.
•
If the NC contact (3-4 or 5-6) welds, the NO contact (7-8 or 9-10)
remains open even when the relay coil is energized, maintaining a
gap of 0.5 mm. The remaining unwelded NC contact (5-6 or 3-4) is
either open or closed.
Contactors
Terminal Blocks
Circuit Breakers
1705242125
800-262-IDEC
(4332)
•
USA & Canada
