MATERIALS AND FINISHES
BODY BERYLLIUM COPPER
PLATED NICKEL
5
4
3
2
1
D
CENTER CONTACT BERYLLIUM COPPER
PLATED GOLD
INSULATOR TEFLON
SLEEVE BRASS
PLATED NICKEL
D
HEX
6.35
REF
.250
19.05
REF
.750
1/4-36 UNS-2A

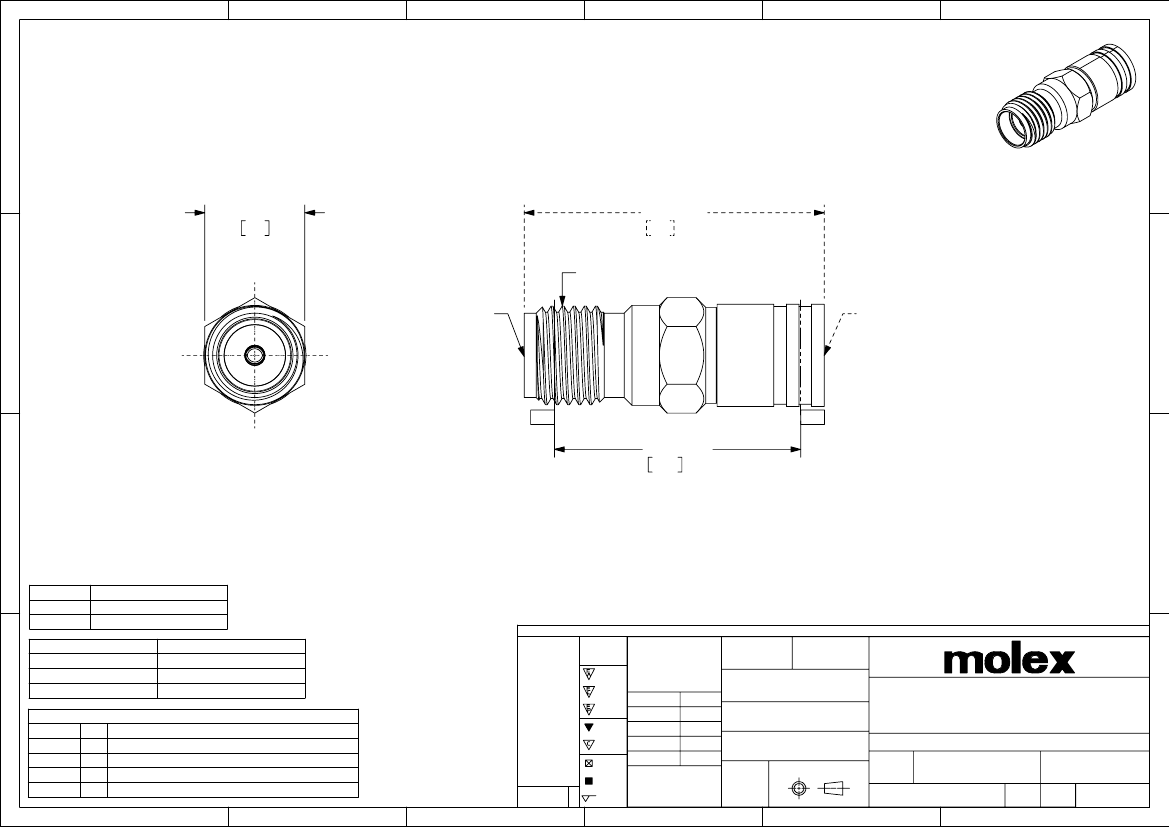

SMA JACK
INTERFACE
SMB PLUG
INTERFACE
C
C
R/P
R/P
62.53
REF
2.462
B
B
73386-0224
73386-0223, ONE PER BAG
73386-0223
TRAY
PSRT NO.
DESCRIPTION
PS-89675-2730
MIL-STD-348A, FIG. 311.2
MIL-STD-348A, FIG. 310.2
SPECIFICATION
ELEC/MECH PERFORMANCE
SMB INTERFACE
SMA INTERFACE
DESCRIPTION
THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
QUALITY
GENERAL
SYMBOLS
TOLERANCES
MM
2:1
(UNLESS SPECIFIED)
DRWN BY
DATE
=
0
°
ANGULAR TOL ±
=
0
2015/04/15
SHO01
±
SMB PLUG TO SMA JACK
4 PLACES
DATE
CHK'D BY
=
0
ADAPTER, 50 OHMS BSA-SMBP/SMAJ
±
3 PLACES
2016/09/13
EC NO:
108375
DRWN:
RYEH
CHK'D:
APPR:
YCHENG
A
A3
REV
REVISION HISTORY
DATE
REV
DESCRIPTION
1998/1/5
A
NEW RELEASE
2007/2/8 A1
REDREW IN SD, ADD -0224
2015/4/17 A2
PACKING FROM BULK TO TRAY PER RF-15-E176
2016/9/13 A3
CORRECT TYPO FOR INTERFACE PER RF16-E152
EC DESCRIPTION
2016/09/13
=
=
=
=
C
0
0
0
0
0
2 PLACES
1 PLACE
0 PLACES
±
±
±
A
APPR BY
DATE
SERIES
PRODUCT CUSTOMER DRAWING
MATERIAL NUMBER
CUSTOMER
DRAWING SIZE
THIRD ANGLE PROJECTION
=
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
73386
DOCUMENT NUMBER
DOC TYPE DOC PART
SHEET NUMBER
A4
2
SD-73386-022
PSD
000
1 OF 1
6
5
4
3
1
