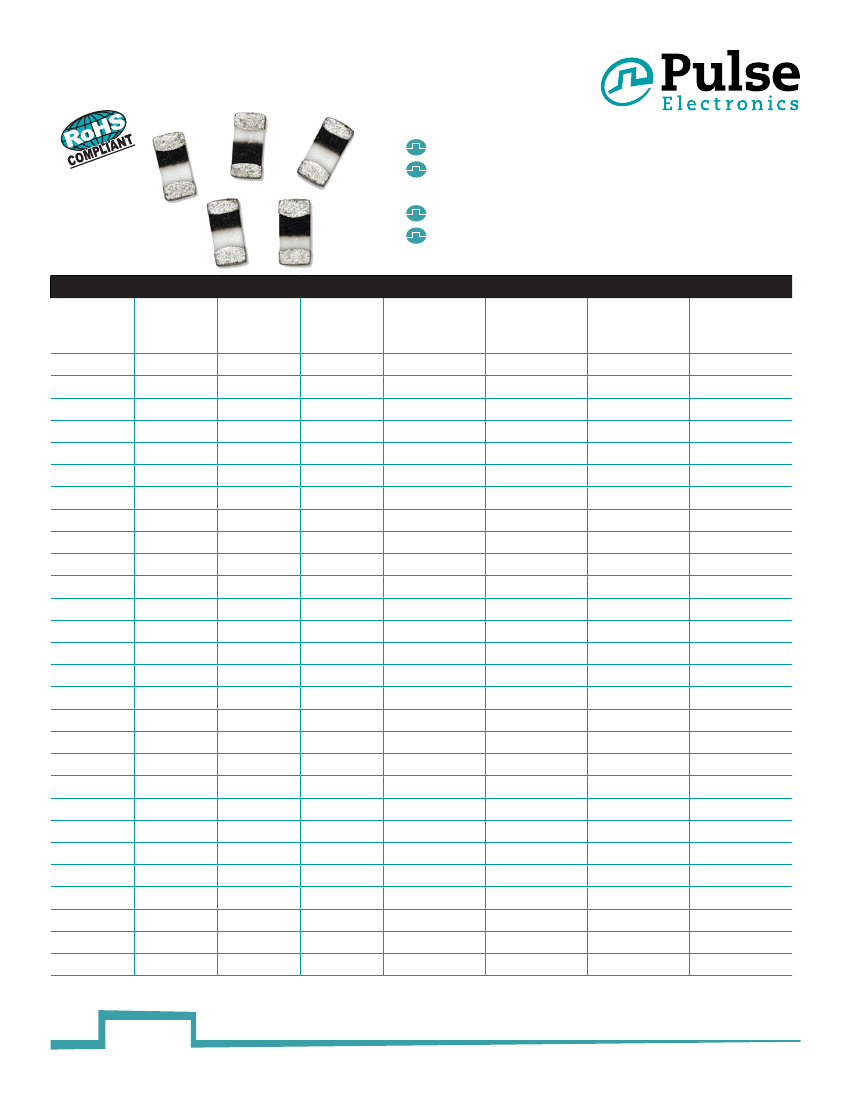

CERAMIC RF CHIP
INDUCTORS – 0402CC SERIES
Monolithic inorganic material construction
Low DC resistance and high Q Values at
high frequency
High Self Resonant Frequency
Industry Standard 0402 (1005) Surface Mount
Land Pattern
Electrical Specifications @ 25°C
Part
Number
PE-0402CC1N0STT
PE-0402CC1N2STT
PE-0402CC1N5STT
PE-0402CC1N8STT
PE-0402CC2N0STT
PE-0402CC2N2STT
PE-0402CC2N4STT
PE-0402CC2N7STT
PE-0402CC3N0STT
PE-0402CC3N3STT
PE-0402CC3N6STT
PE-0402CC3N9STT
PE-0402CC4N36STT
PE-0402CC4N7STT
PE-0402CC5N1STT
PE-0402CC5N6STT
PE-0402CC6N2STT
PE-0402CC6N8JTT
PE-0402CC7N5JTT
PE-0402CC8N2JTT
PE-0402CC9N1JTT
PE-0402CC100JTT
PE-0402CC120JTT
PE-0402CC150JTT
PE-0402CC180JTT
PE-0402CC220JTT
PE-0402CC270JTT
PE-0402CC330JTT
Inductance
(nH)
1.0
1.2
1.5
1.8
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
12
15
18
22
27
33
Standard
Tolerance
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±0.3nH (S)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
Q
(Min.)
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
Test
Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz MIN)
10000
10000
6000
6000
6000
6000
6000
6000
6000
6000
5000
4000
4000
4000
4000
4000
3900
3900
3700
3600
3400
3200
2700
2300
2100
1900
1600
1300
R
DC
(Ω MAX)
0.08
0.09
0.1
0.12
0.12
0.13
0.13
0.13
0.16
0.16
0.20
0.21
0.20
0.21
0.21
0.23
0.25
0.25
0.25
0.28
0.30
0.31
0.4
0.46
0.55
0.6
0.7
0.8
I
DC
(mA MAX)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
WC704.B (1/15)
pulseelectronics.com
CERAMIC RF CHIP
INDUCTORS – 0402CC SERIES
Electrical Specifications @ 25°C
Part
Number
PE-0402CC390JTT
PE-0402CC470JTT
PE-0402CC560JTT
PE-0402CC680JTT
PE-0402CC820JTT
PE-0402CC101JTT
PE-0402CC121JTT
PE-0402CC151JTT
PE-0402CC181JTT
PE-0402CC221JTT
PE-0402CC271JTT
Inductance
(nH)
39
47
56
68
82
100
120
150
180
220
270
Standard
Tolerance
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
±5% (J)
Q
(Min.)
8
8
8
8
8
8
8
8
8
8
8
Test
Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
SRF
(MHz MIN)
1200
1000
750
750
600
600
600
550
500
450
400
R
DC
(Ω MAX)
0.9
1.0
1.0
1.2
1.3
1.5
1.6
3.2
3.7
4.2
4.8
I
DC
(mA MAX)
200
200
200
180
150
150
150
140
130
120
110
Mechanical
0402CC Series
0.0098±0.0039
0.25±0.10
1.50
0.020±0.02
0.50±0.05
0.55
0.040±0.004
1.00±0.05
0.020±0.02
0.50±0.05
Dimensions:
Inches
mm
0.40
Unless otherwise specified,
all tolerances are
±
.010
0,25
( Unit in mm )
Suggested PCB LAND PATTERN
USA 858 674 8100
2
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
WC704.B (1/15)
pulseelectronics.com
CERAMIC RF CHIP
INDUCTORS – 0402CC SERIES

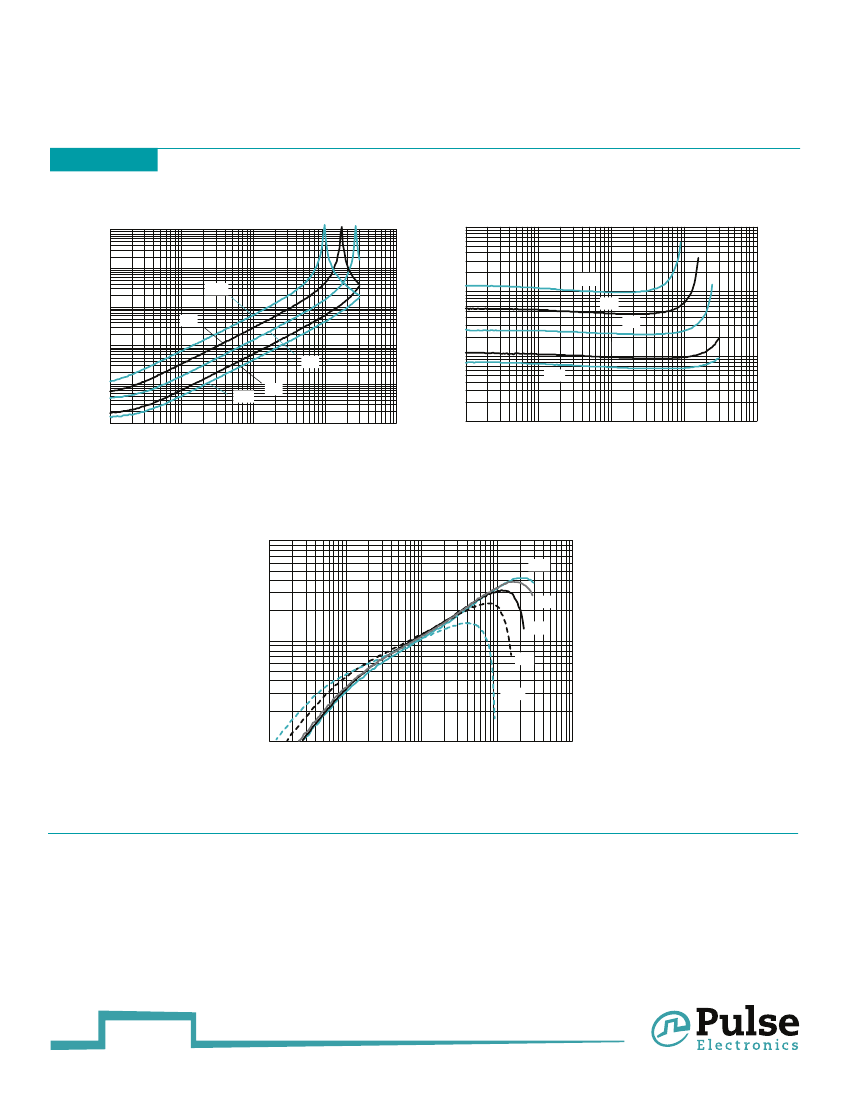

Characteristic Graphs
0402CC Series
Impedance v.s. Frequency Characteristics
10000
Inductance v.s. Frequency Characteristics
1000
1000
IMPEDANCE(Ohm)
100n
100
INDUCTANCE(nH)
100
100n
47n
22n
47n
10
22n
1
10
6. 8n
10n
6.8n
0. 1
1
10
100
10n
1
1000
10000
1
10
100
FREQUENCY(MHz)
1000
10000
FREQUENCY(MHz)
Q v.s. Frequency Characteristics
100
6.8n
10n
10
22n
47n
100n
Q
1
1
10
100
FREQUENCY(MHz)
1000
10000
For More Information
Pulse Worldwide
Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Pulse China Headquarters
Pulse North China
Pulse South Asia
Pulse North Asia
B402, Shenzhen Academy of
Room 2704/2705
135 Joo Seng Road
3F, No. 198
Aerospace Technology Bldg.
Super Ocean Finance Ctr.
#03-02
Zhongyuan Road
10th Kejinan Road
2067 Yan An Road West
PM Industrial Bldg.
Zhongli City
High-Tech Zone
Shanghai 200336
Singapore 368363
Taoyuan County 320
Nanshan District
China
Taiwan R. O. C.
Shenzhen, PR China 518057
Tel: 886 3 4356768
Tel: 858 674 8100
Tel: 49 7032 7806 0
Tel: 86 755 33966678
Tel: 86 21 62787060
Tel: 65 6287 8998
Fax: 886 3 4356823 (Pulse)
Fax: 858 674 8262
Fax: 49 7032 7806 12
Fax: 86 755 33966700
Fax: 86 2162786973
Fax: 65 6287 8998
Fax: 886 3 4356820 (FRE)
